LUXEON UV U Line

Highest power density, superior efficiency, powered by leading Chip Scale Package (CSP) technology

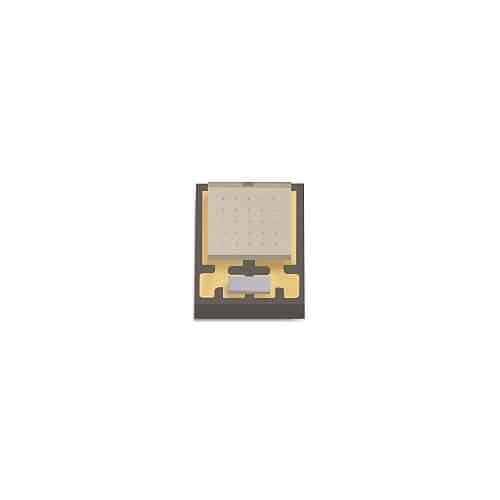

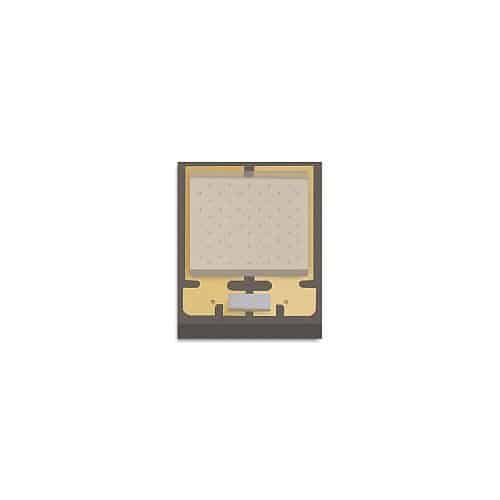

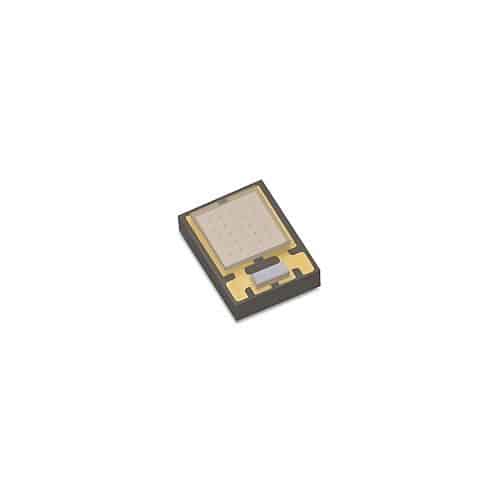

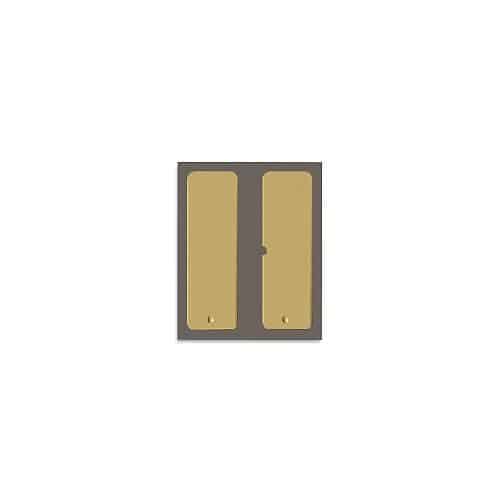

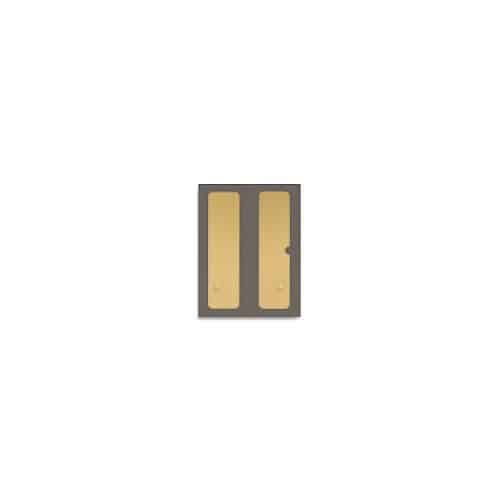

LUXEON UV U Line

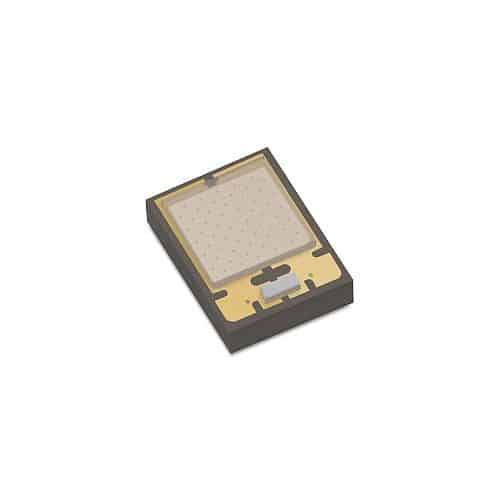

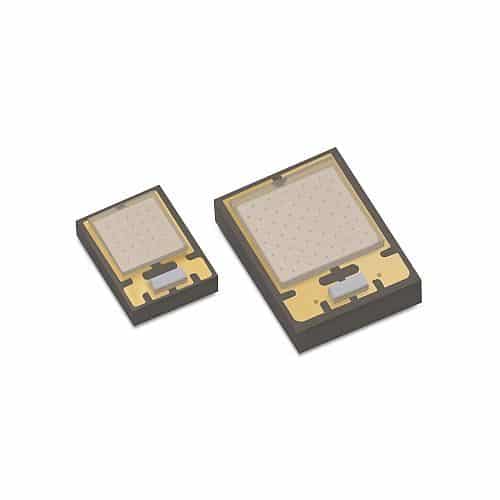

At a micro package size compared to other ultraviolet and violet LEDs, LUXEON UV U Line LEDs are SMT devices that can be assembled in tight arrays with spacing of only 200 microns, which enables high power density (W/cm²) systems for superior efficiency and design freedom. These products are undomed for precise optical control and include a portfolio of 1mm² and 2mm² die sizes covering ultraviolet and violet light. The superior power density, excellent robustness of CSP technology and real world efficacy enable leading performance and efficient solution development in a wide variety of UV specialty lighting applications.

LUXEON UV U1 product performance at 500mA and 1000mA, Tj=25°C.
Wavelength (nm)Typical Radiometric Power
(mW)
Part Number
500mA1000mA
415±5nm 725 1378 LHUV-0415-A070
405±5nm 675 1283 LHUV-0405-A065
725 1378 LHUV-0405-A070
395±5nm 625 1188 LHUV-0395-A060
675 1283 LHUV-0395-A065
385±5nm 425 808 LHUV-0385-A040
475 903 LHUV-0385-A045
LUXEON UV U2 product performance at 1000mA and 2000mA, Tj=25°C.
Wavelength (nm)Typical Radiometric Power
(mW)
Part Number
1000mA2000mA
410-420nm 1450 2610 L1F3-U410200014000
400-410nm 1300 2340 L1F3-U400200012000
390-400nm 1300 2340 L1F3-U390200012000
380-390nm 700 1260 L1F3-U380200006000
900 1620 L1F3-U380200008000

Documentation

Design Resources

  • Mechanical

    Mechanical

    LUXEON UV U1
    LL ID File Format Title Products Modified Size (MB)
    DRM2860 STEP LUXEON UV U1 STEP LHUV-0385-A0xx
    LHUV-0395-A0xx
    LHUV-0405-A0xx
    LHUV-0415-A0xx
    12/13/2016 0.03
    DRM3093 STEP LUXEON UV U2 STEP L1F3-U3802000xxxxx
    L1F3-U3902000xxxxx
    L1F3-U4002000xxxxx
    L1F3-U4102000xxxxx
    01/25/2018 0.03
  • Optical

    Optical

    LUXEON UV U1

    In order to properly use the design resource files below, please download the README file for instructions.

    LL ID File Format Title Products Modified Size (MB)
    DRO2862 ASAP LUXEON UV U1 ASAP 5M rays LHUV-0385-A0xx
    LHUV-0395-A0xx
    LHUV-0405-A0xx
    LHUV-0415-A0xx
    08/31/2017 133.52
    DRO2861 ProSource rs8 LUXEON UV U1 in Prosource rs8 format LHUV-0385-A0xx
    LHUV-0395-A0xx
    LHUV-0405-A0xx
    LHUV-0415-A0xx
    12/13/2016 94.30
    DRO2863 LightTools LUXEON UV U1 LightTools Binary 5M rays LHUV-0385-A0xx
    LHUV-0395-A0xx
    LHUV-0405-A0xx
    LHUV-0415-A0xx
    08/31/2017 133.52
    DRO2864 LucidShape LUXEON UV U1 LucidShape 5M rays LHUV-0385-A0xx
    LHUV-0395-A0xx
    LHUV-0405-A0xx
    LHUV-0415-A0xx
    12/13/2016 133.51
    DRO2865 Optis LUXEON UV U1 OPTIS 5M rays LHUV-0385-A0xx
    LHUV-0395-A0xx
    LHUV-0405-A0xx
    LHUV-0415-A0xx
    12/13/2016 152.59
    DRO2866 Photopia LUXEON UV U1 Photopia 5M rays LHUV-0385-A0xx
    LHUV-0395-A0xx
    LHUV-0405-A0xx
    LHUV-0415-A0xx
    08/31/2017 133.51
    DRO2867 TracePro LUXEON UV U1 TracePro Binary 5M rays LHUV-0385-A0xx
    LHUV-0395-A0xx
    LHUV-0405-A0xx
    LHUV-0415-A0xx
    12/13/2016 133.51
    DRO2869 Zemax LUXEON UV U1 Zemax 5M rays LHUV-0385-A0xx
    LHUV-0395-A0xx
    LHUV-0405-A0xx
    LHUV-0415-A0xx
    12/13/2016 133.51
    DRO3086 ASAP LUXEON UV U2 ASAP 5M rays L1F3-U3802000xxxxx
    L1F3-U3902000xxxxx
    L1F3-U4002000xxxxx
    L1F3-U4102000xxxxx
    01/25/2018 133.51
    DRO3085 ProSource rs8 LUXEON UV U2 in Prosource rs8 format L1F3-U3802000xxxxx
    L1F3-U3902000xxxxx
    L1F3-U4002000xxxxx
    L1F3-U4102000xxxxx
    01/25/2018 143.24
    DRO3087 LightTools LUXEON UV U2 LightTools Binary 5M rays L1F3-U3802000xxxxx
    L1F3-U3902000xxxxx
    L1F3-U4002000xxxxx
    L1F3-U4102000xxxxx
    01/25/2018 133.51
    DRO3088 LucidShape LUXEON UV U2 LucidShape 5M rays L1F3-U3802000xxxxx
    L1F3-U3902000xxxxx
    L1F3-U4002000xxxxx
    L1F3-U4102000xxxxx
    01/25/2018 133.51
    DRO3089 Optis LUXEON UV U2 Optis 5M rays L1F3-U3802000xxxxx
    L1F3-U3902000xxxxx
    L1F3-U4002000xxxxx
    L1F3-U4102000xxxxx
    01/25/2018 152.59
    DRO3090 Photopia LUXEON UV U2 Photopia 5M rays L1F3-U3802000xxxxx
    L1F3-U3902000xxxxx
    L1F3-U4002000xxxxx
    L1F3-U4102000xxxxx
    01/25/2018 133.51
    DRO3091 TracePro LUXEON UV U2 TracePro Binary 5M rays L1F3-U3802000xxxxx
    L1F3-U3902000xxxxx
    L1F3-U4002000xxxxx
    L1F3-U4102000xxxxx
    01/25/2018 133.51
    DRO3092 Zemax LUXEON UV U2 Zemax 5M rays L1F3-U3802000xxxxx
    L1F3-U3902000xxxxx
    L1F3-U4002000xxxxx
    L1F3-U4102000xxxxx
    01/25/2018 133.51

Features and Benefits

  • Offering ultraviolet in 380-400nm and violet (400–420nm) for a range of options
  • Small 2.2mm² to 3.6mm² SMT footprint enables highest W/cm² power density, design freedom
  • 1A per mm² max drive current allows more power per LED
  • Up to 50%+ efficiency reduces heat output
  • AlN package Rth as low as 1.8 K/W for better thermal management

Applications

    • Specialty Lighting
      • Analytical Instrumentation
      • Curing
      • Medical
      • Security
      • UV Photoreaction
