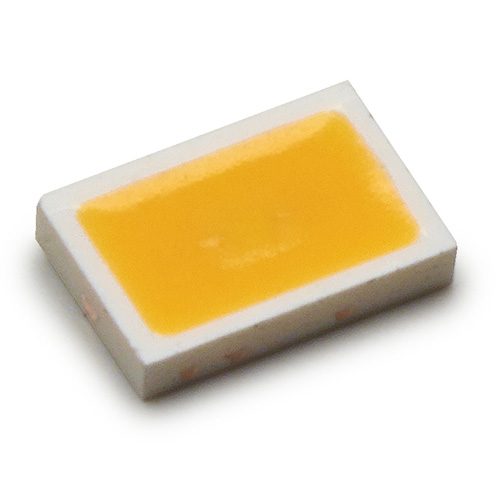

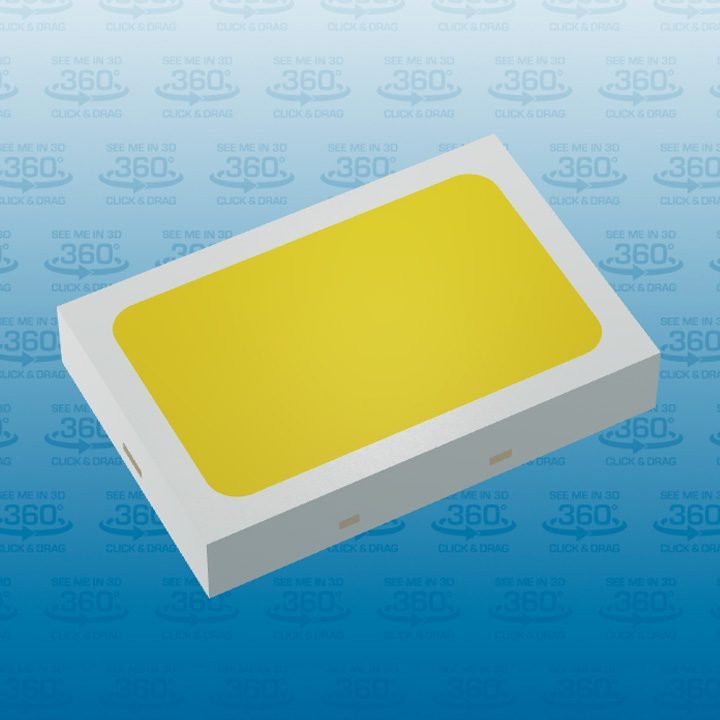

LUXEON 3020 LEDs are the first and only hot-color targeted EMC-based 3.0mm x 2.0mm QFN, delivering superior efficacy with superior lumen maintenance and assurance of ANSI color compliance at operating conditions — 85°C. Lumileds enables mass production of affordable and reliable bulbs and lamps by simplifying system designs and integration with leading lm/$ and hot-color targeting.

Features & Benefits

  • High efficacy delivers superior lumen maintenance
  • Reliable QFN EMC package delivers superior thermal properties and reliability
  • 1/9th ANSI micro-color binning enables tight color control
  • Hot-color targeted at 85°C which leads to better color accuracy
  • Drive at max current for superior value
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance at 120mA and Tj=25°C.

Nominal
CCT
Minimum
CRI
Luminous Flux
(lm)
Typical Luminous Efficacy
(lm/W)
Typical Luminous
Flux (lm)
Typical Luminous
Efficacy (lm/W)
Part Number
Minimum Typical 100mA
120mA
4000K 70 51 56 153
48
160 L130-4070002011001
5000K 70 51 56 153 48 160 L130-5070002011001
5700K 70 51 56 153 48 160 L130-5770002011001
6500K 70 51 56 153 48 160 L130-6570002011001
2200K 80 40 46 125 40 133 L130-2280002011001
2500K 80 44 50 135 43 143 L130-2580002011001
2700K 80 42 52 134 42 140 L130-2780002011001
3000K 80 44 53 134 43 143 L130-3080002011001
3500K 80 45 55 139 44 147 L130-3580002011001
4000K 80 46 57 145 46 153 L130-4080002011001
5000K 80 46 58 145 46 153 L130-5080002011001
5700K 80 46 57 145 46 153 L130-5780002011001
6500K 80 46 57 145 46 153 L130-6580002011001
2700K 90 36 41 112 35 117 L130-2790002011001
3000K 90 37 42 115 36 120 L130-3090002011001
3500K 90 38 43 117 37 123 L130-3590002011001
4000K 90 40 45 123 38 127 L130-4090002011001

Documentation

Design Resources

  • Electrical
    LUXEON 3020

    LL ID File format Title Products Modified Size (MB)
    DRE1894 Altium Designer
    LUXEON 3020 Altium L130-2780002011001
    L130-3080002011001
    L130-3580002011001
    L130-4080002011001
    More Products
    L130-5080002011001
    L130-5780002011001
    L130-6580002011001
    04/01/2014 0.99
    DRE1895 Gerber
    LUXEON 3020 Gerber L130-2780002011001
    L130-3080002011001
    L130-3580002011001
    L130-4080002011001
    More Products
    L130-5080002011001
    L130-5780002011001
    L130-6580002011001
    04/01/2014 0.04
  • Mechanical
    LUXEON 3020

    LL ID File format Title Products Modified Size (MB)
    DRM1874 STEP
    LUXEON 3020 STEP file L130-5780002011001
    L130-5080002011001
    L130-4080002011001
    L130-3580002011001
    More Products
    L130-3080002011001
    L130-2780002011001
    L130-6580002011001
    03/25/2014 0.01
  • Optical
    LUXEON 3020

    In order to properly use the optical design resource file below, please download the README file for instructions.
    LL ID File format Title Products Modified Size (MB)
    DRO1880 ProSource rs8
    LUXEON 3020 2700K 80 CRI color scan in rs8 format L130-2780002011001
    03/25/2014 387.48
    DRO1881 ASAP
    LUXEON 3020 ASAP 5M rays L130-2780002011001
    L130-3080002011001
    L130-3580002011001
    L130-4080002011001
    More Products
    L130-5080002011001
    L130-5780002011001
    L130-6580002011001
    03/25/2014 133.51
    DRO1882 LightTools
    LUXEON 3020 LightTools 5M rays L130-2780002011001
    L130-3080002011001
    L130-3580002011001
    L130-4080002011001
    More Products
    L130-5080002011001
    L130-5780002011001
    L130-6580002011001
    03/25/2014 133.51
    DRO1883 OPTIS/SPEOS
    LUXEON 3020 Optis/SPEOS 5M rays L130-2780002011001
    L130-3080002011001
    L130-3580002011001
    L130-4080002011001
    More Products
    L130-5080002011001
    L130-5780002011001
    L130-6580002011001
    03/25/2014 152.59
    DRO1884 TracePro
    LUXEON 3020 TracePro 5M rays L130-2780002011001
    L130-3080002011001
    L130-3580002011001
    L130-4080002011001
    More Products
    L130-5080002011001
    L130-5780002011001
    L130-6580002011001
    03/25/2014 133.52
    DRO1885 Zemax
    LUXEON 3020 Zemax 5M rays L130-2780002011001
    L130-3080002011001
    L130-3580002011001
    L130-4080002011001
    More Products
    L130-5080002011001
    L130-5780002011001
    L130-6580002011001
    03/25/2014 133.51
  • PhotoBiological Test Reports
    LUXEON 3020
    LL ID
    Title
    Part Numbers
    Size (KB)
    Report Date
    PTR-09 LUXEON 3020 L130-xxxx002011001
    537 Oct 13, 2014
