LUXEON IR ONYX

Industry leading broadband IR solution for spectroscopy and hyperspectral imaging applications

LUXEON IR ONYX

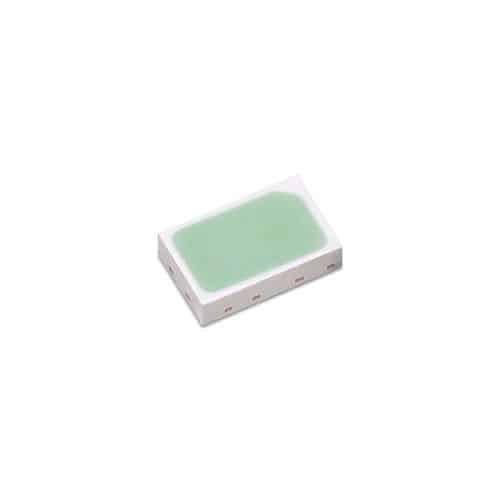

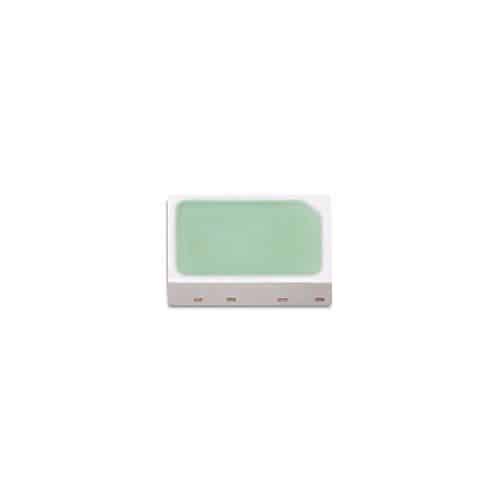

The LUXEON IR ONYX emitter features a continuous broadband infrared (IR) emission from 650 to 1100nm with superior light output characteristics. The product comes in an industry standard 2720 package and footprint for easy integration in existing designs. The LUXEON IR ONYX allows for new possibilities for miniaturization of spectroscopy and hyperspectral imaging applications in hand-held devices for mobile, industrial, and medical applications.

Product performance and optical characteristics of LUXEON IR ONYX at 350mA, Tj=25°C.
Wavelength (nm)Typical FWHM Beam Angle (°)Radiometric Power 600-1050nm
(mW)
Spectral Flux 750-1000nm (μW/nm)Part Number
MinimumTypicalMinimumTypical
600-1050 120 40 50 80 150 L1IG-0750100000000

Documentation

Design Resources

  • Mechanical

    Mechanical

    LUXEON IR ONYX
    LL ID File Format Title Products Modified Size (MB)
    DRM3668 STEP LUXEON IR ONYX STEP L1IG-0750100000000 12/09/2019 0.01
  • Optical

    Optical

    LUXEON IR ONYX
    In order to properly use the design resource files below, please download the README file for instructions.
    LL ID File Format Title Products Modified Size (MB)
    DRO3647 ASAP LUXEON IR ONYX ASAP 5M Rays L1IG-0750100000000 12/09/2019 133.51
    DRO3646 ProSource rs8 LUXEON IR ONYX in ProSource rs8 format L1IG-0750100000000 12/09/2019 142.34
    DRO3648 LightTools LUXEON IR ONYX LightTools Binary 5M Rays L1IG-0750100000000 12/09/2019 133.51
    DRO3649 LucidShape LUXEON IR ONYX LucidShape 5M Rays L1IG-0750100000000 12/09/2019 133.51
    DRO3650 Optis LUXEON IR ONYX Optis 5M Rays L1IG-0750100000000 12/09/2019 152.59
    DRO3651 Photopia LUXEON IR ONYX Photopia 5M Rays L1IG-0750100000000 12/09/2019 133.51
    DRO3652 TracePro LUXEON IR ONYX TracePro Binary 5M Rays L1IG-0750100000000 12/09/2019 133.51
    DRO3653 Zemax LUXEON IR ONYX Zemax 5M Rays L1IG-0750100000000 12/09/2019 133.51

Features & Benefits

  • Radiant Power over 40mW IR (600–1050nm) to reduce exposure time
  • More than 80μW/nm over a broad range (750-1000nm)
  • 2.75mm x 2.00mm package with a 2 pad configuration that is compatible with the industry common footprint
  • Lumileds phosphor expertise resulting in robust, long lifetime phosphors
  • Flat spectrum allows for ease of calibration

Applications

  • Spectroscopy
  • Machine Vision
  • Healthcare
  • Hyperspectral Imaging
