LUXEON IR Domed Line

High power infrared emitters with engineered primary optics for high efficiency and beam control

LUXEON IR Domed Line

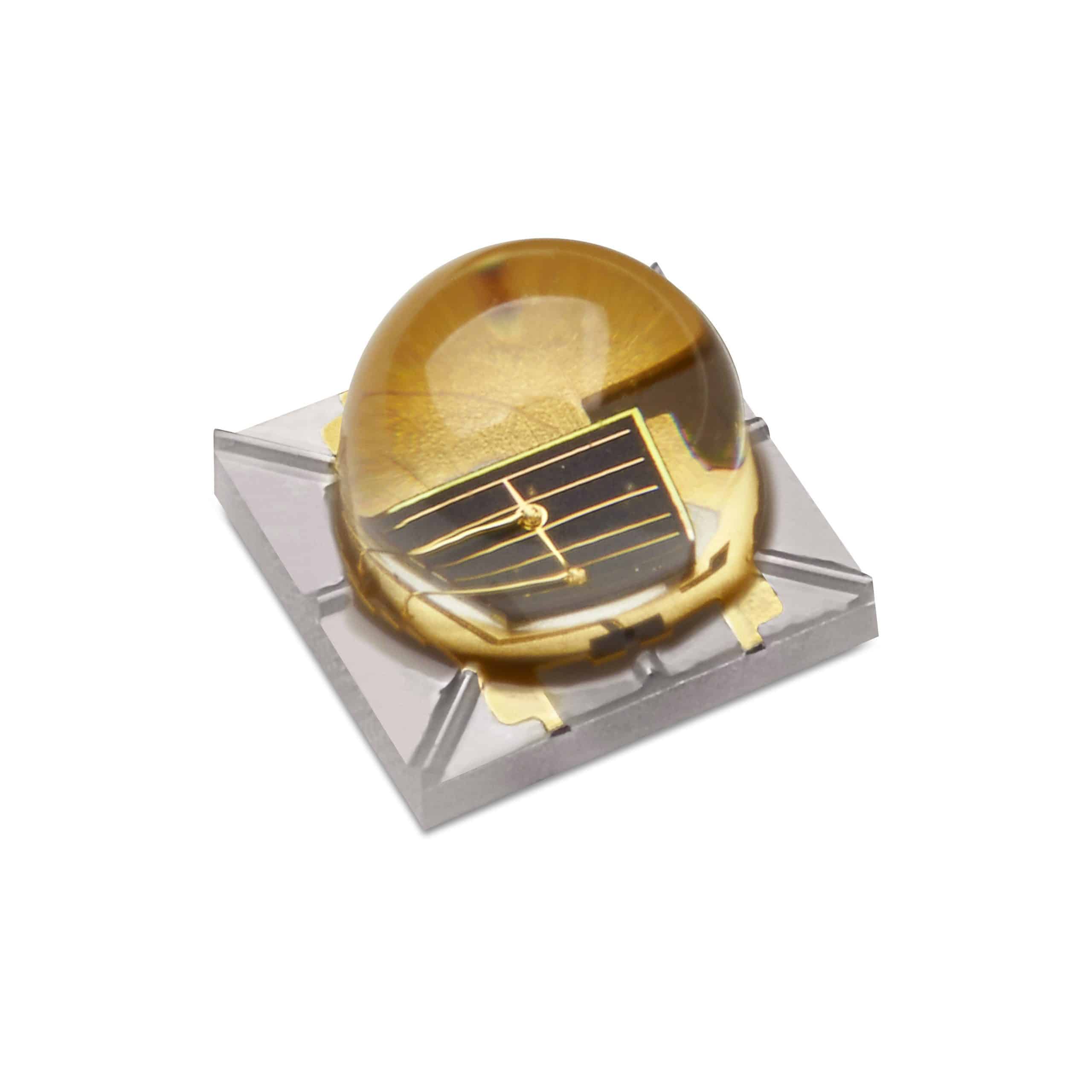

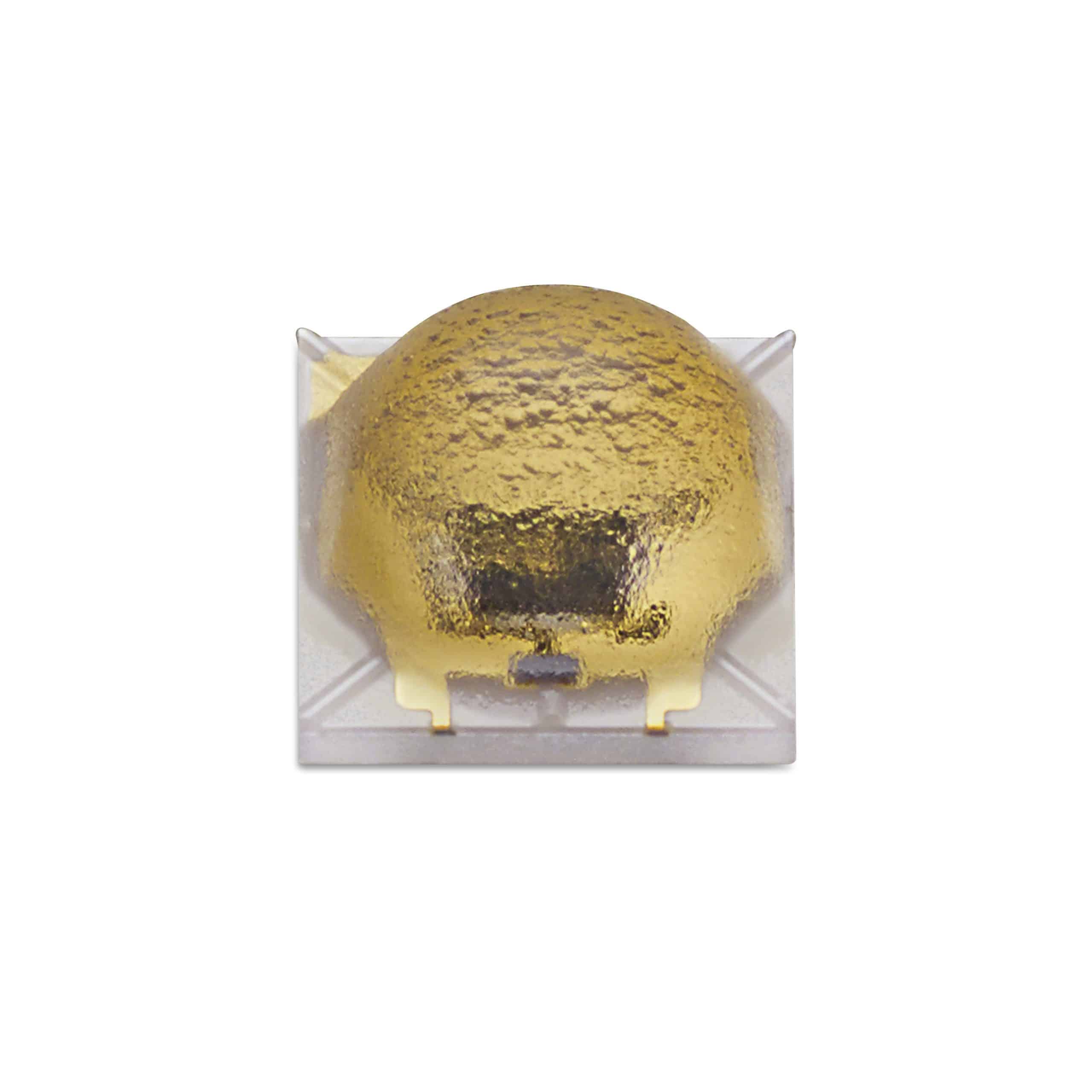

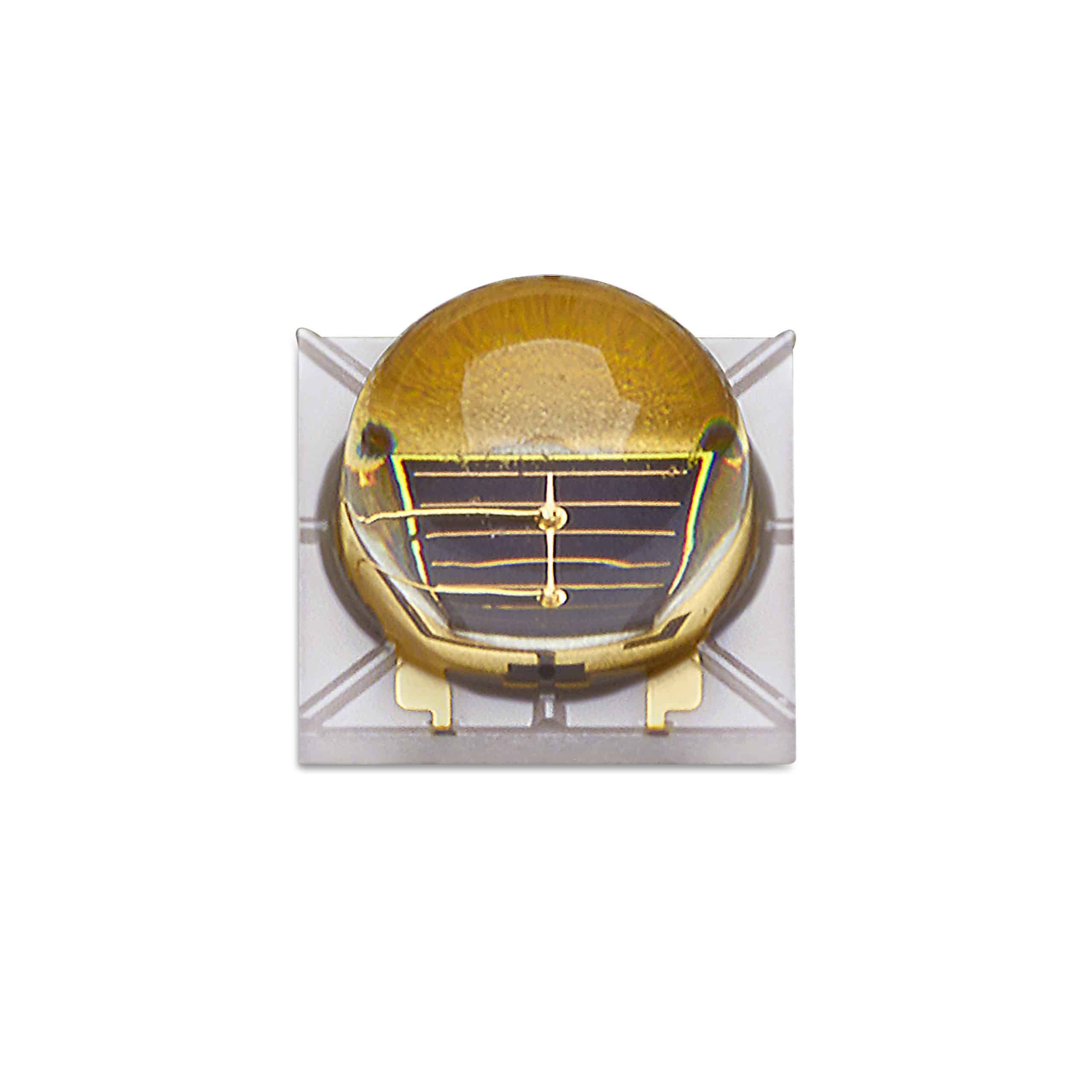

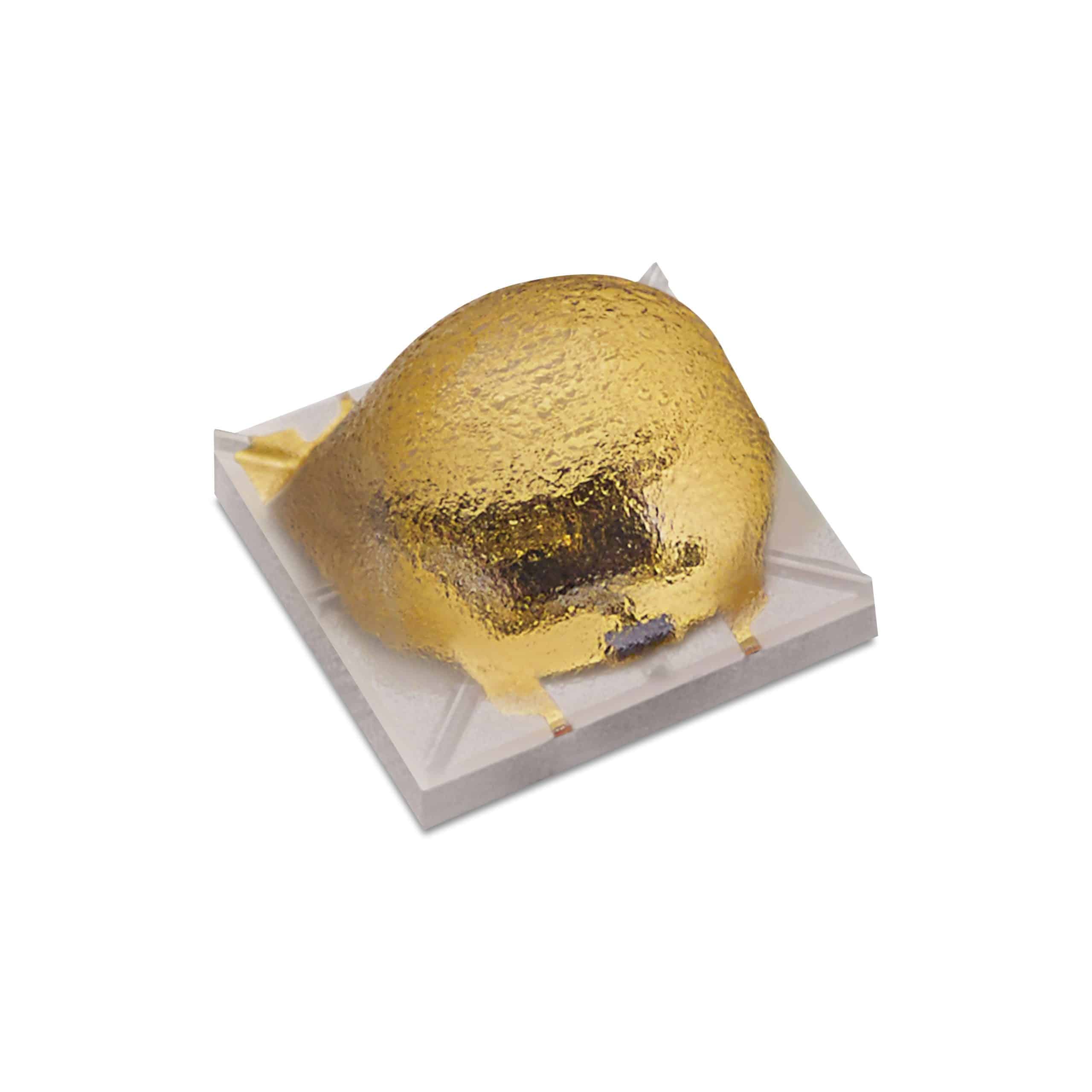

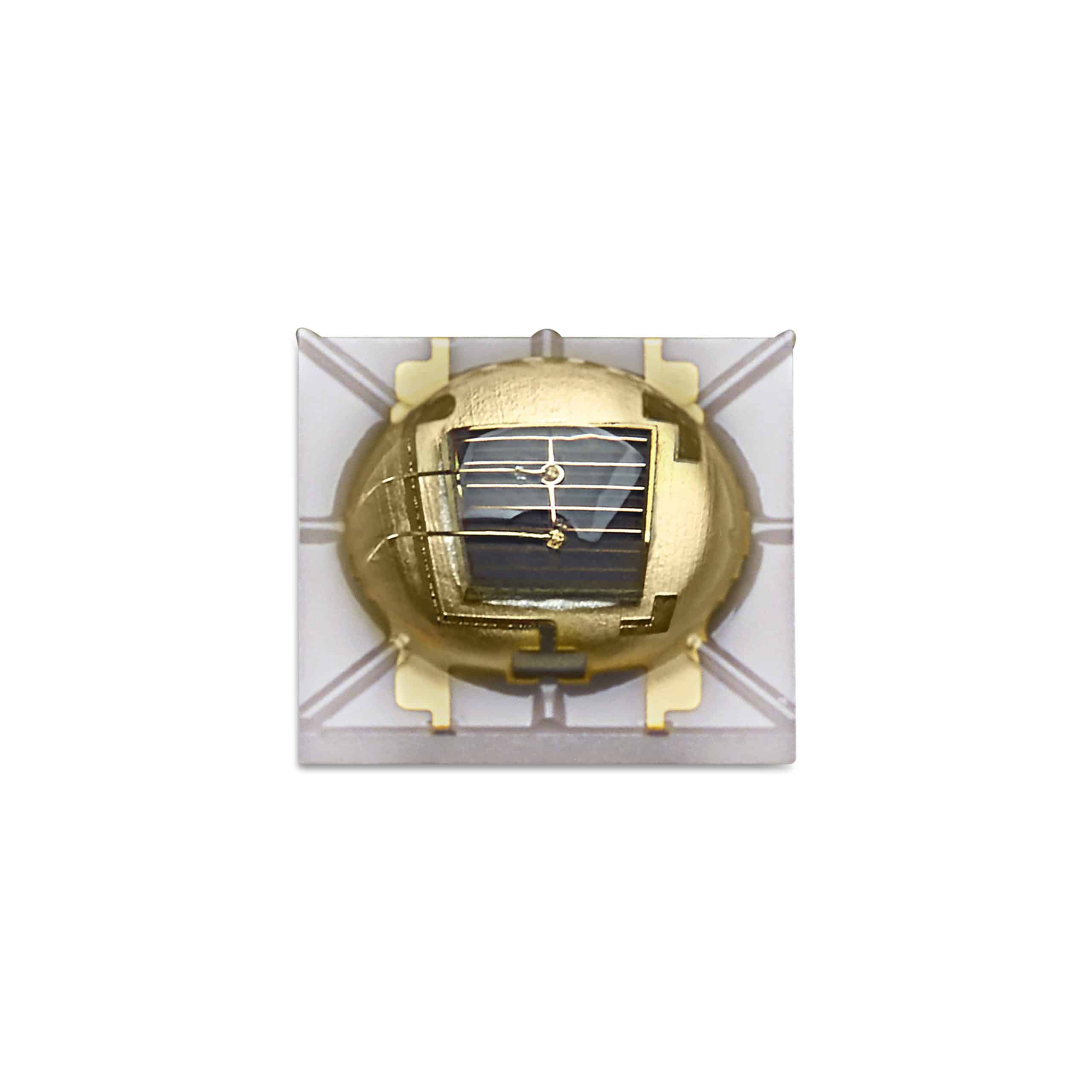

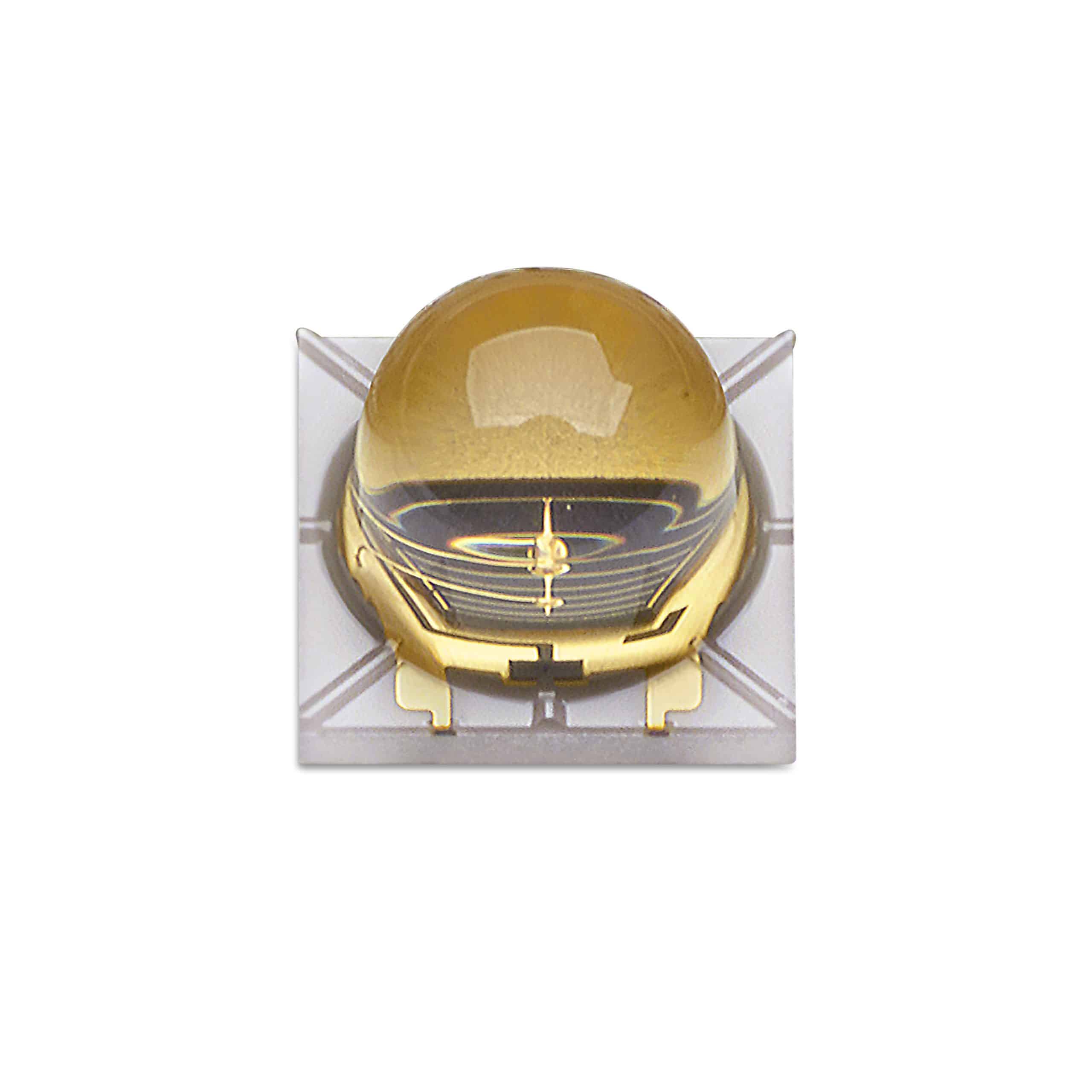

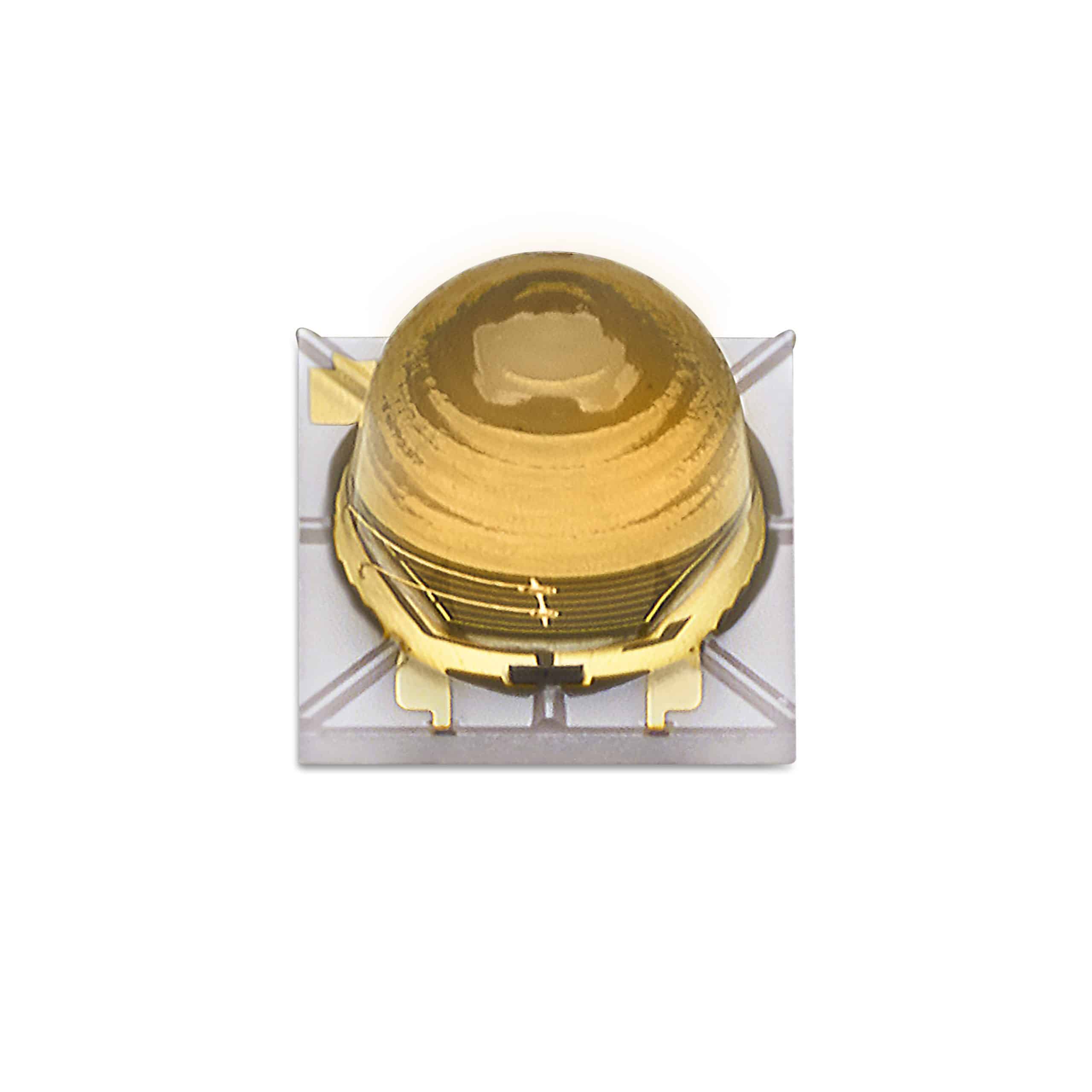

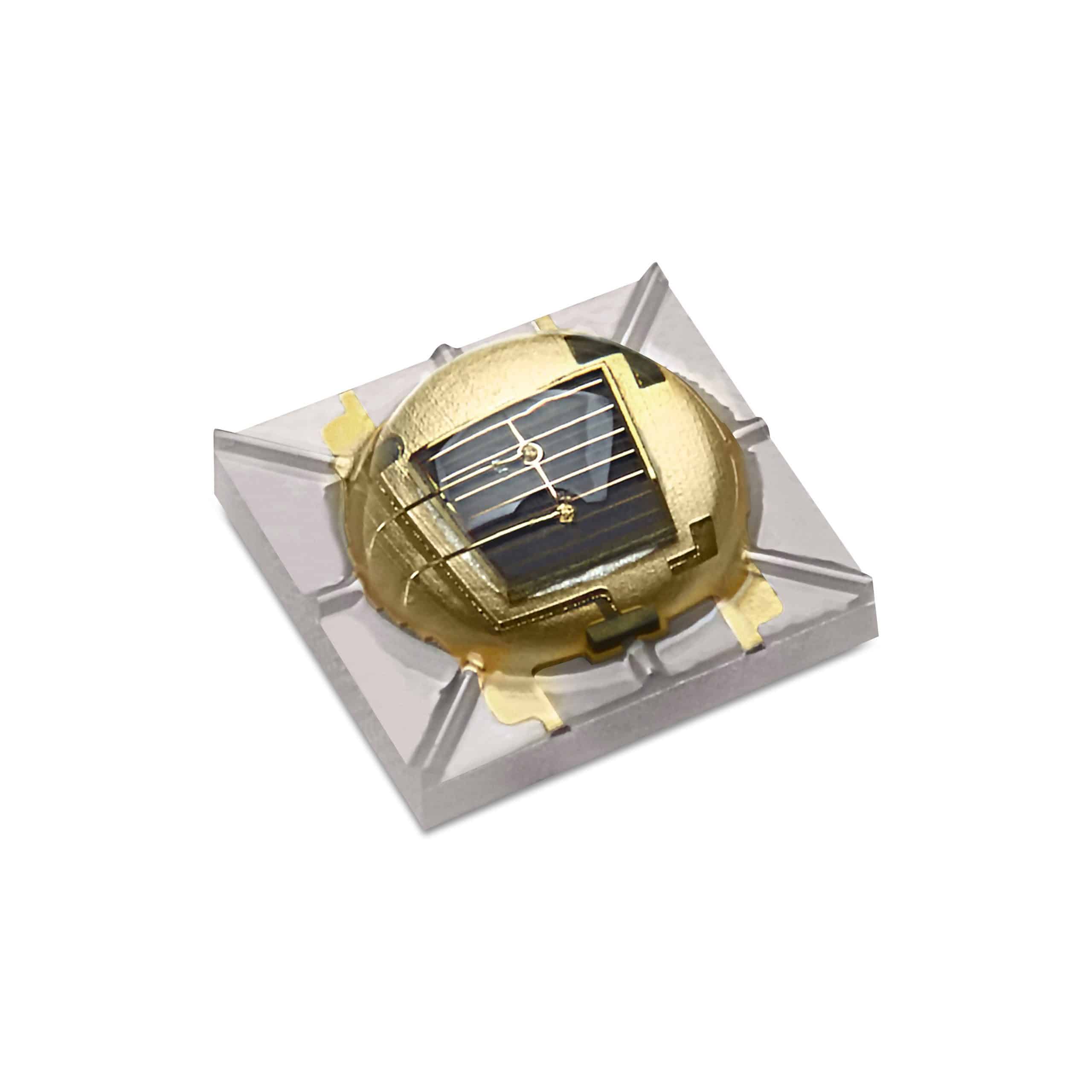

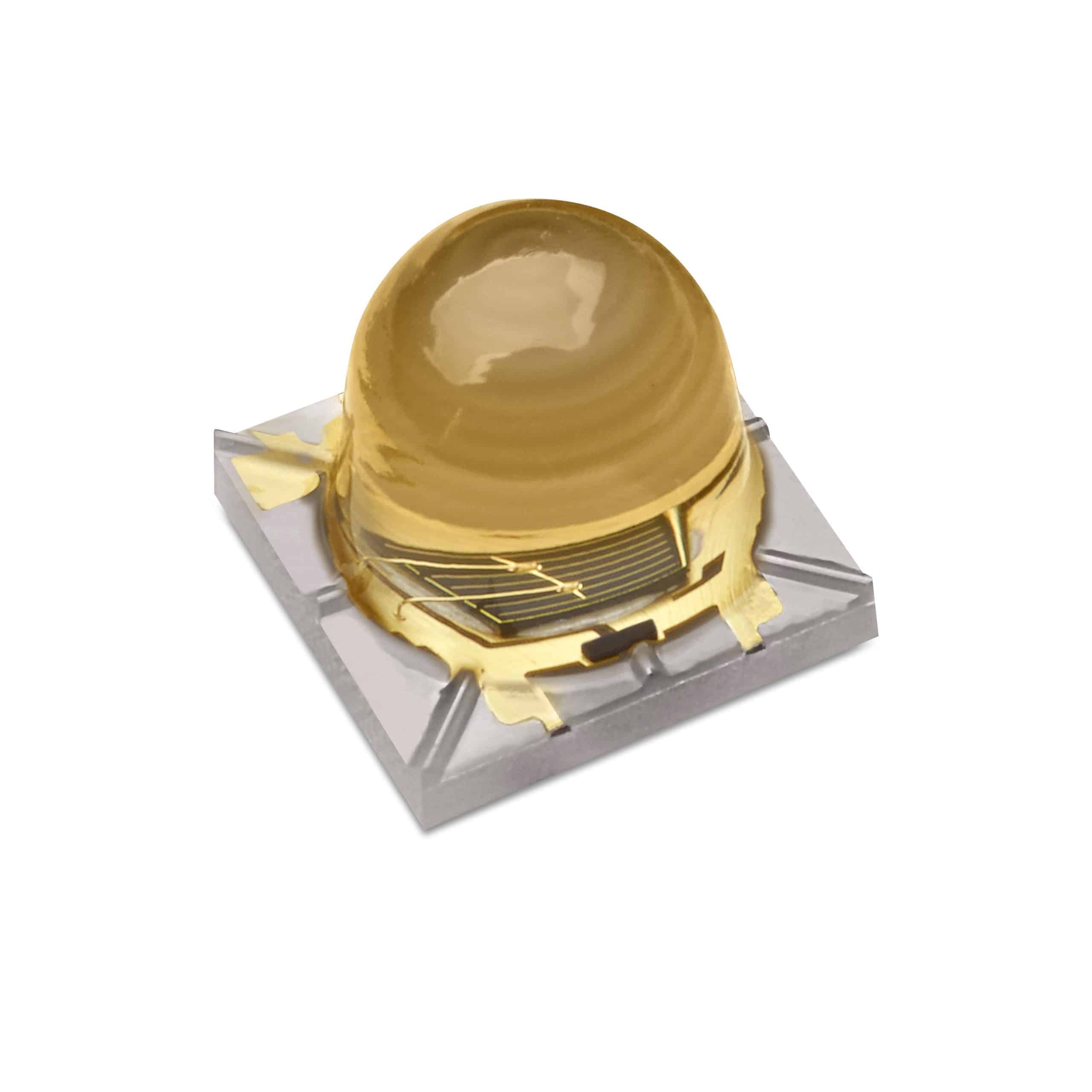

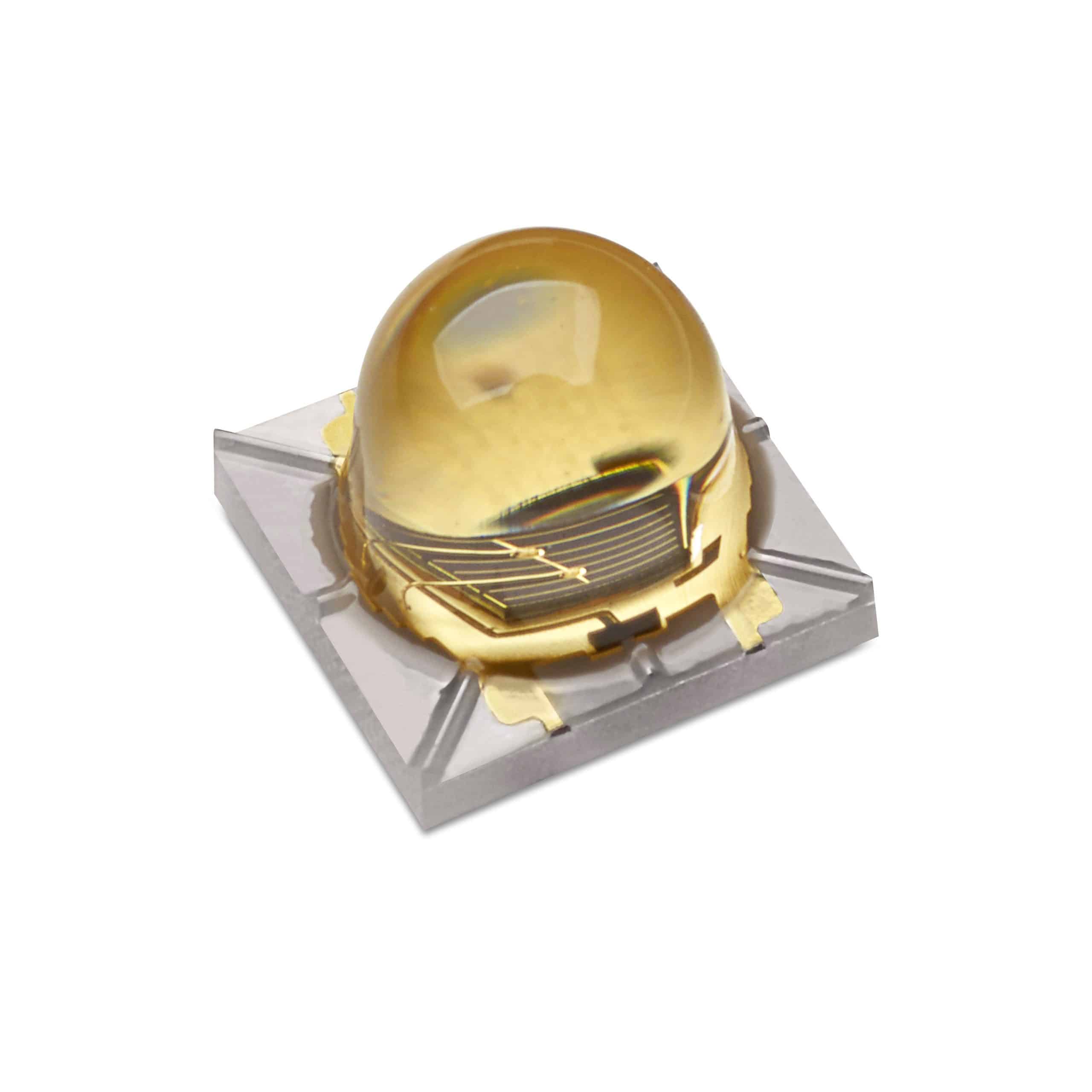

The LUXEON IR Domed Line high power infrared emitters are tailored to application needs by offering a variety of products at multiple infrared wavelengths and optical radiation patterns. LUXEON IR Domed Line is designed with innovative LUXEON technology to provide industry-leading performance. Through best-in-class thermal conductivity, LUXEON IR Domed Line has excellent performance at actual operating conditions. The LUXEON IR Domed Line uses an industry standard footprint for ease of integration and upgrading existing system designs.

Product performance of LUXEON IR Domed Line at 1000mA, Tj=25°C.
Peak Wavelength (nm)Typical FWHM Beam Angle (°)Radiometric Power
(mW)
Typical Radiant Intensity (mW/sr)Max Drive Current (DC)/(Pulse)Part Number
MinimumTypical
850 150 1000 1350 335 1A/3A L1I0-0850150000000
850 90 1000 1350 750 1A/3A L1I0-0850090000000
850 60 1000 1350 1150 1A/3A L1I0-0850060000000
850 95 x 58 1000 1350 650 1A/3A L1I0-0850955800000
940 150 1100 1450 350 1A/3A L1I0-0940150000000
940 90 1100 1450 780 1A/3A L1I0-0940090000000
940 60 1100 1450 1190 1A/3A L1I0-0940060000000
940 95 x 58 1100 1450 700 1A/3A L1I0-0940955800000
850 150 1050 1350 335 1.5A/5A L1I0-0850150200000
850 90 1050 1350 750 1.5A/5A L1I0-0850090200000
850 60 1050 1350 1150 1.5A/5A L1I0-0850060200000
850 50 1050 1350 1255 1.5A/5A L1I0-0850050200000
940 150 1125 1450 350 1.5A/5A L1I0-0940150200000
940 90 1125 1450 780 1.5A/5A L1I0-0940090200000
940 60 1125 1450 1190 1.5A/5A L1I0-0940060200000
940 50 1125 1450 1335 1.5A/5A L1I0-0940050200000



Documentation

Design Resources

  • Mechanical

    Mechanical

    LUXEON IR Domed Line
    LL ID File Format Title Products Modified Size (MB)
    DRM2993 STEP LUXEON IR Domed 150 STEP L1I0-xxxx150000000 08/08/2017 0.04
    DRM2991 STEP LUXEON IR Domed 60 STEP L1I0-xxxx060000000 08/08/2017 0.04
    DRM2992 STEP LUXEON IR Domed 90 STEP L1I0-xxxx090000000 08/08/2017 0.04
    DRM3235 Altium Designer LUXEON IR Domed Line Altium Classic Starboard L1I0-xxxx060000000
    L1I0-xxxx090000000
    L1I0-xxxx150000000
    06/21/2018 1.24
    DRM3236 Gerber LUXEON IR Domed Line Gerber Classic Starboard L1I0-xxxx060000000
    L1I0-xxxx090000000
    L1I0-xxxx150000000
    06/21/2018 0.05
    DRM3237 ODB++ LUXEON IR Domed Line ODB++ Classic Starboard L1I0-xxxx060000000
    L1I0-xxxx090000000
    L1I0-xxxx150000000
    06/21/2018 0.07
  • Evaluation Kits
    Lumileds Illuminator Board Evaluation Kit

    The Lumileds Illuminator Board Evaluation Kit has been designed to be combined with the Melexis EVK75123 evaluation kit for Time-of-Flight applications. More Information »

  • Available in 850nm and 940nm wavelengths to provide optimized performance for each type of application
  • Radiant Power of 1350mW (850nm) and 1450mW (940nm) for a greater system performance
  • Option for higher drive current (up to 1.5A DC and 5A pulsed) available for applications requiring more performance

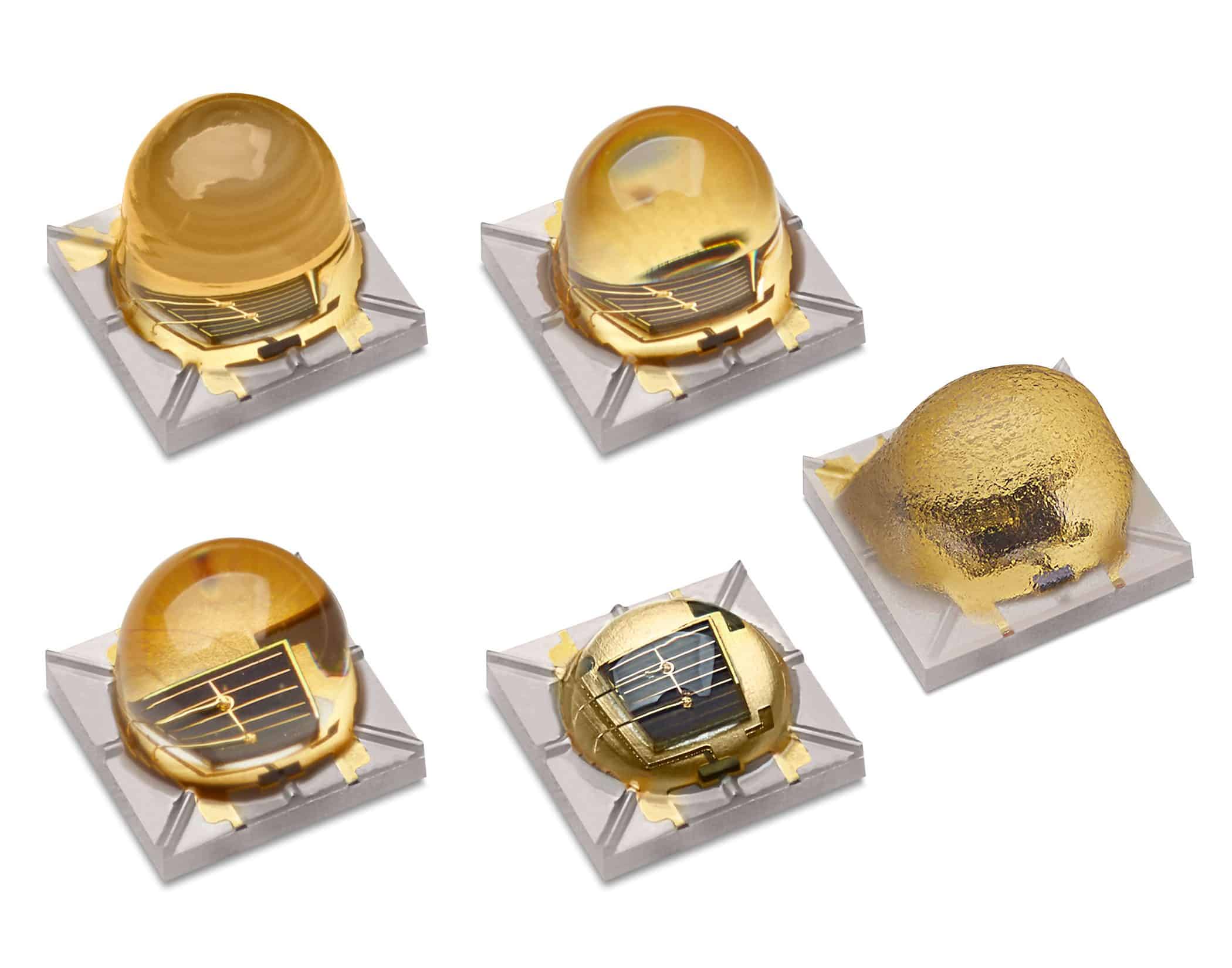

  • Five emission patterns: 50°, 60°, 90°, 150° and an asymmetric radiation pattern of 95 x 58°
  • The five emission patterns address diverse application needs, high punch, long range and high uniformity
  • 3.7mm x 3.7mm package with 3 pad configuration compatible with the industry standard footprint, enabling a direct upgrade in existing designs
  • Ultra-low Rth of 2.5°C/W typ, the industry’s best thermal conductivity, solves thermal challenges and supports space saving designs

Applications

  • Surveillance / CCTV
  • Machine Vision
  • 3D Scanning / Time of Flight
  • Biometric Identification
  • User Interface Control
  • Augmented / Virtual Reality
