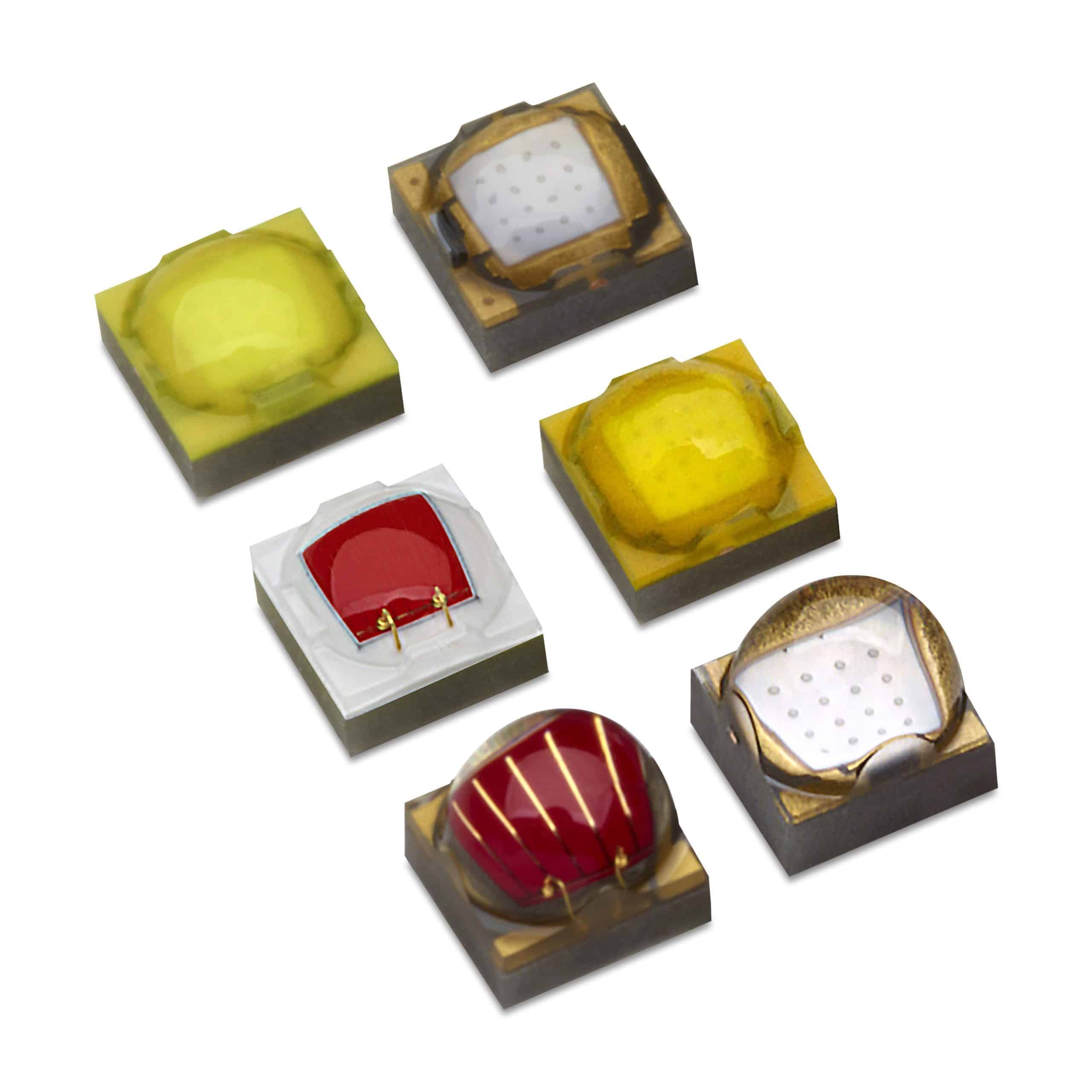

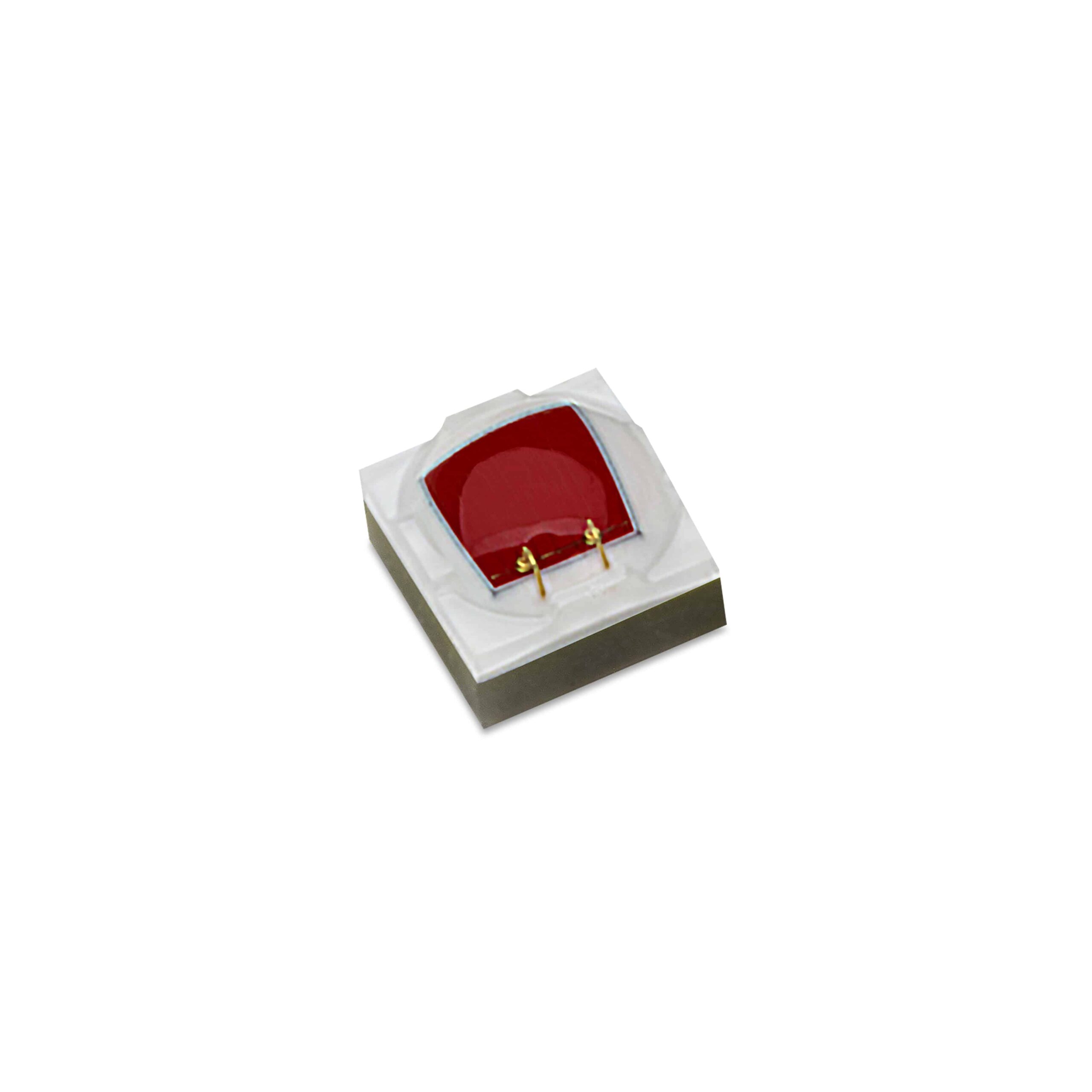

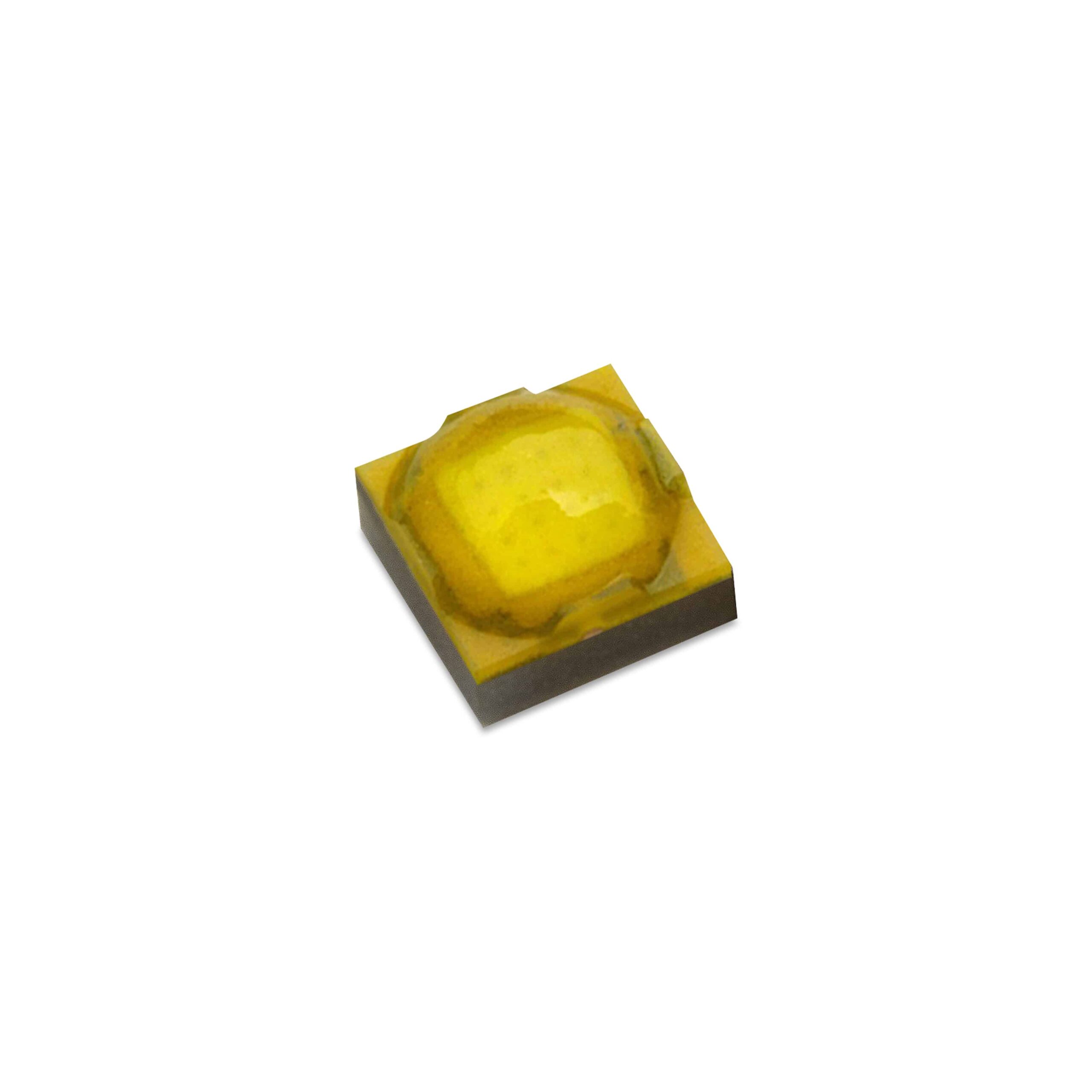

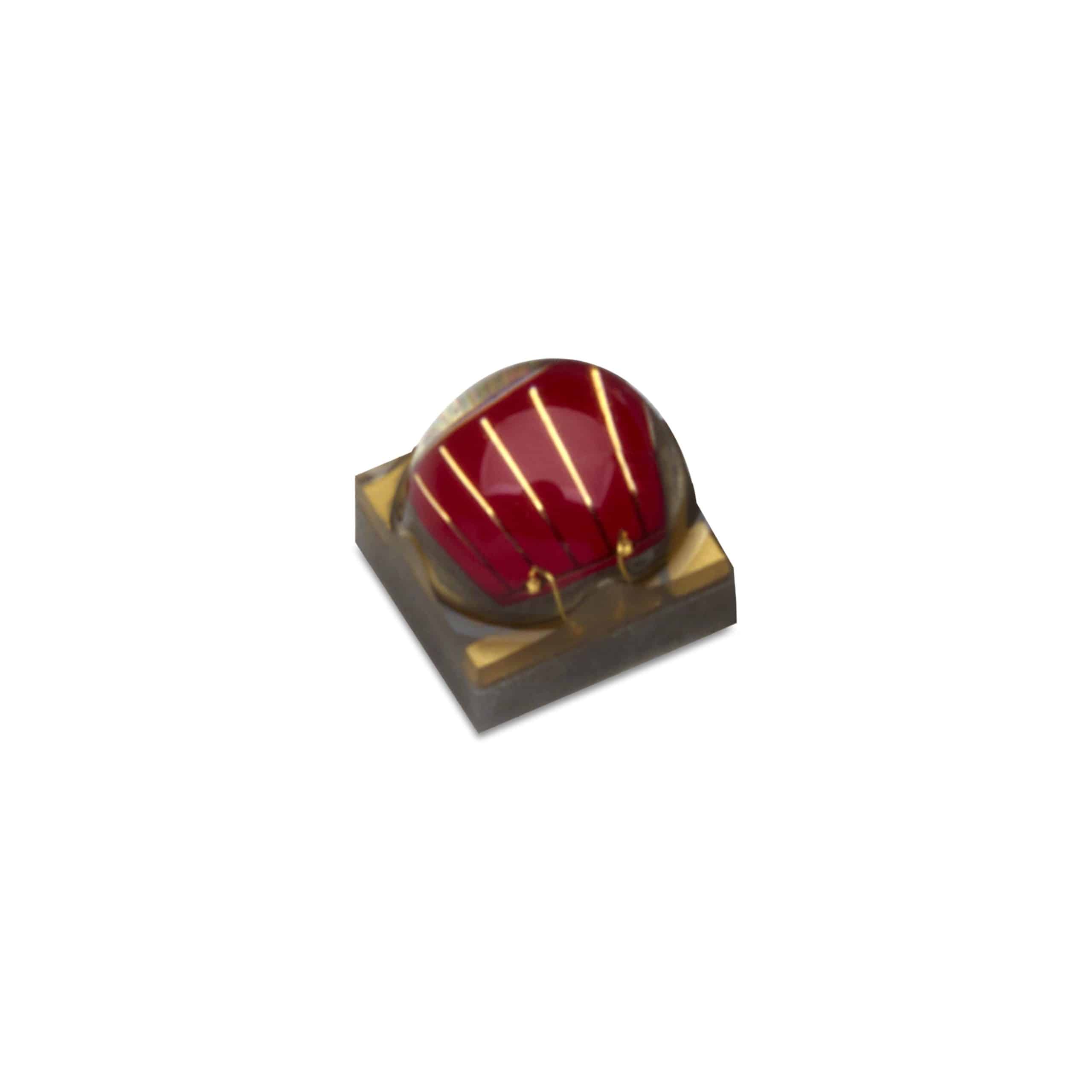

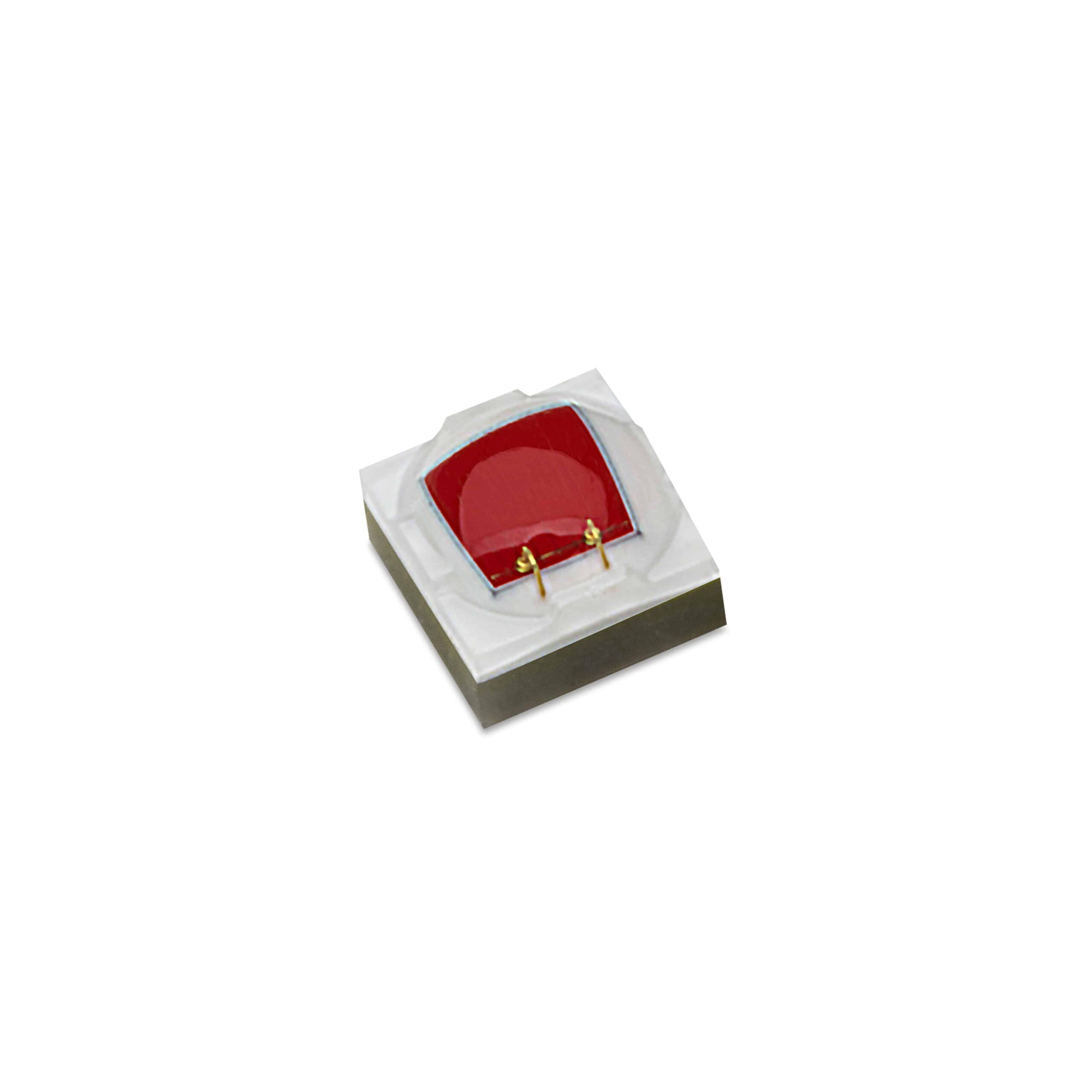

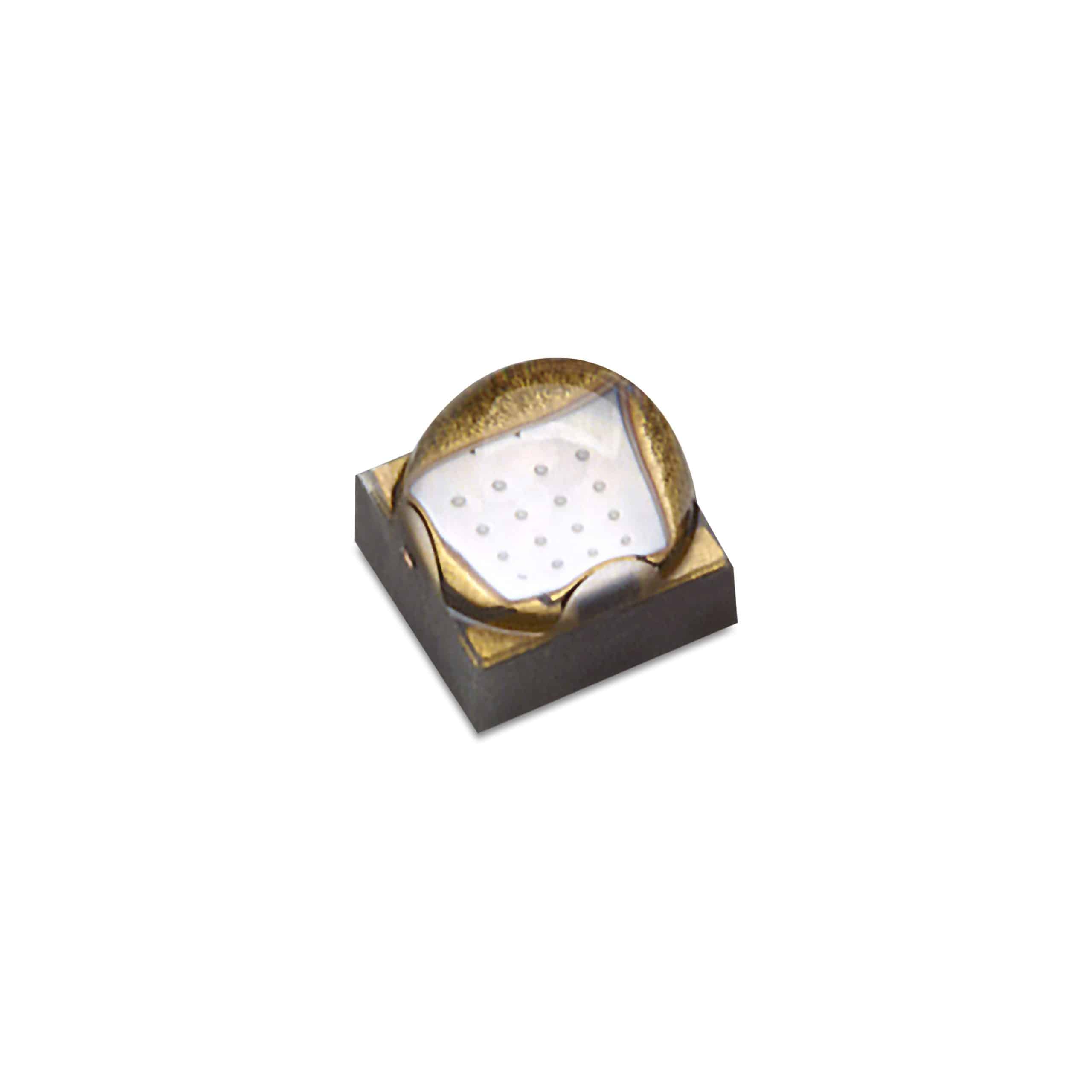

LUXEON SunPlus 20 Line

The LUXEON SunPlus Series is purpose-built to enable ease of system design for Horticulture applications. The LUXEON SunPlus Series offers the only LEDs available today that are binned and tested based on Photosynthetic Photon Flux (PPF). The LUXEON SunPlus Series includes two different packages: LUXEON SunPlus 20 Line, which is 2.0mm x 2.0mm and LUXEON SunPlus 35 Line, which is 3.5mm x 3.5mm. The LUXEON SunPlus Series includes options for single driver solutions and multi-channel, color tunable solutions.

Product performance of LUXEON SunPlus 20 Line at 350mA, Tj=85°C.

Product	Color	Peak Wavelength (nm)	PPF (μmol/s) in PAR (400 to 700nm)	PPF/W Typical (µmol/J)	Part Number
LUXEON SunPlus 20 Line	Far Red	720	750	1.10	1.37	2.26	L1SP-FRD0002000000
1.60	1.96	2.95	L1SP-FRD0002F00000
Deep Red	655	670	1.60	1.81	2.65	L1SP-DRD0002000000
1.70	2.08	2.90	L1SP-DRD0002F00000
Royal Blue	445	455	1.90	2.04	2.11	L1SP-RYL0002000000
1.90	2.25	2.30	L1SP-RYL0002F00000
Lime	-	-	1.50	1.59	1.66	L1SP-LME0002000000
1.50	1.62	1.66	L1SP-LME0002F00000
Cool White	-	-	1.40	1.51	1.57	L1SP-CW90002000000
1.60	1.70	1.73	L1SP-CW90002F00000

Product

Color

Peak
Wavelength (nm)

PPF (μmol/s) in PAR (400 to 700nm)

PPF/W Typical (µmol/J)

Part Number

Minimum

Maximum

Minimum

Typical

LUXEON SunPlus 20 Line

Far Red

720

750

1.10

1.37

2.26

L1SP-FRD0002000000

1.60

1.96

2.95

L1SP-FRD0002F00000

Deep Red

655

670

1.60

1.81

2.65

L1SP-DRD0002000000

1.70

2.08

2.90

L1SP-DRD0002F00000

Royal Blue

445

455

1.90

2.04

2.11

L1SP-RYL0002000000

1.90

2.25

2.30

L1SP-RYL0002F00000

Lime

1.50

1.59

1.66

L1SP-LME0002000000

1.50

1.62

1.66

L1SP-LME0002F00000

Cool White

1.40

1.51

1.57

L1SP-CW90002000000

1.60

1.70

1.73

L1SP-CW90002F00000

Documentation

Design Resources

Doc Number	Title	Size (KB)	Last Modified
AB171	LUXEON SunPlus 35 Line for Horticulture Application Brief	1416	Nov 10, 2016
AB06	LUXEON Illumination LEDs Circuit Design and Layout Practices to Minimize Electrical Stress	1516	Jun 5, 2017
AB170	LUXEON SunPlus 20 Line for Horticulture Technology Application Brief	3342	Nov 8, 2016

Doc Number	Title	Size (KB)	Last Modified
DS171	LUXEON SunPlus Series for Horticulture Product Datasheet	2165	Oct 16, 2019

Doc Number	Title	Size (KB)	Last Modified
BR44	Horticultural Lighting Solutions Brochure	16782	Nov 7, 2018
BR11	Illumination Line Card	1592	Sep 21, 2018

Doc Number	Title	Size (KB)	Last Modified
PB171	LUXEON SunPlus Series for Horticulture Product Brief	1609	Oct 16, 2019

Doc Number	Title	Size (KB)	Last Modified
WP34	LUXEON SunPlus Series Lime LEDs Produce High Yield and Nutrition in Leafy Greens	2106	Dec 13, 2017

Mechanical

LUXEON SunPlus 20 Line

top

LL ID	File Format	Title	Products	Modified	Size (MB)
DRM3461	STEP	LUXEON SunPlus 20 120° Domed STEP	L1SP-CW90002F00000 L1SP-DRD0002F00000 L1SP-FRD0002F00000 L1SP-LME0002F00000 More Products L1SP-RYL0002F00000	04/03/2019	0.02
DRM2793	STEP	LUXEON SunPlus 20 Line STEP	L1SP-CW90002000000 L1SP-DRD0002000000 L1SP-FRD0002000000 L1SP-LME0002000000 More Products L1SP-RYL0002000000	09/28/2016	0.05

Optical

LUXEON SunPlus 20 Line

top

In order to properly use the design resource files below, please download the README file for instructions.

LL ID	File Format	Title	Products	Modified	Size (MB)
DRO3425	ASAP	LUXEON SunPlus 20 120° Domed Cool White ASAP 5M rays	L1SP-CW90002F00000	04/02/2019	133.52
DRO3426	IES TM-25	LUXEON SunPlus 20 120° Domed Cool White IES-TM21 5M rays	L1SP-CW90002F00000	04/02/2019	133.55
DRO3457	ProSource rs8	LUXEON SunPlus 20 120° Domed Cool White in Prosource rs8 format	L1SP-CW90002F00000	04/02/2019	404.88
DRO3427	LightTools	LUXEON SunPlus 20 120° Domed Cool White LightTools Binary 5M rays	L1SP-CW90002F00000	04/02/2019	133.52
DRO3428	LucidShape	LUXEON SunPlus 20 120° Domed Cool White LucidShape 5M rays	L1SP-CW90002F00000	04/02/2019	133.52
DRO3429	Optis	LUXEON SunPlus 20 120° Domed Cool White Optis 5M rays	L1SP-CW90002F00000	04/02/2019	152.59
DRO3430	Photopia	LUXEON SunPlus 20 120° Domed Cool White Photopia 5M rays	L1SP-CW90002F00000	04/02/2019	133.52
DRO3431	TracePro	LUXEON SunPlus 20 120° Domed Cool White TracePro Binary 5M rays	L1SP-CW90002F00000	04/02/2019	133.52
DRO3432	Zemax	LUXEON SunPlus 20 120° Domed Cool White Zemax 5M rays	L1SP-CW90002F00000	04/02/2019	133.52
DRO3433	ASAP	LUXEON SunPlus 20 120° Domed Deep Red ASAP 5M rays	L1SP-DRD0002F00000	04/02/2019	133.51
DRO3434	IES TM-25	LUXEON SunPlus 20 120° Domed Deep Red IES TM-25 5M rays	L1SP-DRD0002F00000	04/02/2019	133.55
DRO3458	ProSource rs8	LUXEON SunPlus 20 120° Domed Deep Red in Prosource rs8 format	L1SP-DRD0002F00000	04/02/2019	135.24
DRO3435	LightTools	LUXEON SunPlus 20 120° Domed Deep Red LightTools Binary 5M rays	L1SP-DRD0002F00000	04/02/2019	133.51
DRO3436	LucidShape	LUXEON SunPlus 20 120° Domed Deep Red LucidShape 5M rays	L1SP-DRD0002F00000	04/02/2019	133.51
DRO3437	Optis	LUXEON SunPlus 20 120° Domed Deep Red Optis 5M rays	L1SP-DRD0002F00000	04/02/2019	152.59
DRO3437	Photopia	LUXEON SunPlus 20 120° Domed Deep Red Photopia 5M rays	L1SP-DRD0002F00000	04/02/2019	133.51
DRO3439	TracePro	LUXEON SunPlus 20 120° Domed Deep Red TracePro Binary 5M rays	L1SP-DRD0002F00000	04/02/2019	133.51
DRO3440	Zemax	LUXEON SunPlus 20 120° Domed Deep Red Zemax 5M rays	L1SP-DRD0002F00000	04/02/2019	133.51
DRO3441	ASAP	LUXEON SunPlus 20 120° Domed Far Red ASAP 5M rays	L1SP-FRD0002F00000	04/02/2019	133.52
DRO3442	IES TM-25	LUXEON SunPlus 20 120° Domed Far Red IES TM-25 5M rays	L1SP-FRD0002F00000	04/02/2019	133.55
DRO3459	ProSource rs8	LUXEON SunPlus 20 120° Domed Far Red in Prosource rs8 format	L1SP-FRD0002F00000	04/02/2019	150.45
DRO3443	LightTools	LUXEON SunPlus 20 120° Domed Far Red LightTools Binary 5M rays	L1SP-FRD0002F00000	04/02/2019	133.52
DRO3444	LucidShape	LUXEON SunPlus 20 120° Domed Far Red LucidShape 5M rays	L1SP-FRD0002F00000	04/02/2019	133.52
DRO3445	Optis	LUXEON SunPlus 20 120° Domed Far Red Optis 5M rays	L1SP-FRD0002F00000	04/02/2019	152.59
DRO3446	Photopia	LUXEON SunPlus 20 120° Domed Far Red Photopia 5M rays	L1SP-FRD0002F00000	04/02/2019	133.52
DRO3447	TracePro	LUXEON SunPlus 20 120° Domed Far Red TracePro Binary 5M rays	L1SP-FRD0002F00000	04/02/2019	133.52
DRO3448	Zemax	LUXEON SunPlus 20 120° Domed Far Red Zemax 5M rays	L1SP-FRD0002F00000	04/02/2019	133.52
DRO3462	ASAP	LUXEON SunPlus 20 120° Domed Lime ASAP 5M rays	L1SP-LME0002F00000	04/03/2019	133.51
DRO3463	IES TM-25	LUXEON SunPlus 20 120° Domed Lime IES TM-25 5M rays	L1SP-LME0002F00000	04/03/2019	133.55
DRO3471	ProSource rs8	LUXEON SunPlus 20 120° Domed Lime in Prosource rs8 format	L1SP-LME0002F00000	04/18/2019	281.91
DRO3464	LightTools	LUXEON SunPlus 20 120° Domed Lime LightTools Binary 5M rays	L1SP-LME0002F00000	04/03/2019	133.51
DRO3465	LucidShape	LUXEON SunPlus 20 120° Domed Lime LucidShape 5M rays	L1SP-LME0002F00000	04/03/2019	133.51
DRO3466	Optis	LUXEON SunPlus 20 120° Domed Lime Optis 5M rays	L1SP-LME0002F00000	04/03/2019	152.59
DRO3467	Photopia	LUXEON SunPlus 20 120° Domed Lime Photopia 5M rays	L1SP-LME0003500000	04/03/2019	133.51
DRO3468	TracePro	LUXEON SunPlus 20 120° Domed Lime TracePro Binary 5M rays	L1SP-LME0002F00000	04/03/2019	133.51
DRO3469	Zemax	LUXEON SunPlus 20 120° Domed Lime Zemax 5M rays	L1SP-LME0002F00000	04/03/2019	133.51
DRO3449	ASAP	LUXEON SunPlus 20 120° Domed Royal Blue ASAP 5M rays	L1SP-RYL0002F00000	04/02/2019	133.52
DRO3450	IES TM-25	LUXEON SunPlus 20 120° Domed Royal Blue IES TM-25 5M rays	L1SP-RYL0002F00000	04/02/2019	133.55
DRO3460	ProSource rs8	LUXEON SunPlus 20 120° Domed Royal Blue in Prosource rs8 format	L1SP-RYL0002F00000	04/02/2019	117.02
DRO3451	LightTools	LUXEON SunPlus 20 120° Domed Royal Blue LightTools Binary 5M rays	L1SP-RYL0002F00000	04/02/2019	133.52
DRO3452	LucidShape	LUXEON SunPlus 20 120° Domed Royal Blue LucidShape 5M rays	L1SP-RYL0002F00000	04/02/2019	133.52
DRO3453	Optis	LUXEON SunPlus 20 120° Domed Royal Blue Optis 5M rays	L1SP-RYL0002F00000	04/02/2019	152.59
DRO3454	Photopia	LUXEON SunPlus 20 120° Domed Royal Blue Photopia 5M rays	L1SP-RYL0002F00000	04/02/2019	133.52
DRO3455	TracePro	LUXEON SunPlus 20 120° Domed Royal Blue TracePro Binary 5M rays	L1SP-RYL0002F00000	04/02/2019	133.52
DRO3456	Zemax	LUXEON SunPlus 20 120° Domed Royal Blue Zemax 5M rays	L1SP-RYL0002F00000	04/02/2019	133.52
DRO2805	LightTools	LUXEON SunPlus 20 Far Red, Deep Red LightTools Binary 5M Rays	L1SP-DRD0002000000 L1SP-FRD0002000000	09/29/2016	133.51
DRO2804	ASAP	LUXEON SunPlus 20 Line Far Red, Deep Red ASAP 5M Rays	L1SP-DRD0002000000 L1SP-FRD0002000000	09/29/2016	133.51
DRO2803	ProSource rs8	LUXEON SunPlus 20 Line Far Red, Deep Red in Prosource rs8 format	L1SP-DRD0002000000 L1SP-FRD0002000000	09/29/2016	256.96
DRO2806	LucidShape	LUXEON SunPlus 20 Line Far Red, Deep Red LucidShape 5M Rays	L1SP-DRD0002000000 L1SP-FRD0002000000	09/29/2016	133.51
DRO2807	Optis	LUXEON SunPlus 20 Line Far Red, Deep Red OPTIS 5M Rays	L1SP-DRD0002000000 L1SP-FRD0002000000	09/29/2016	152.58
DRO2808	Photopia	LUXEON SunPlus 20 Line Far Red, Deep Red Photopia 5M Rays	L1SP-DRD0002000000 L1SP-FRD0002000000	09/29/2016	133.51
DRO2809	TracePro	LUXEON SunPlus 20 Line Far Red, Deep Red TracePro Binary 5M Rays	L1SP-DRD0002000000 L1SP-FRD0002000000	09/29/2016	133.51
DRO2810	Zemax	LUXEON SunPlus 20 Line Far Red, Deep Red Zemax 5M Rays	L1SP-DRD0002000000 L1SP-FRD0002000000	09/29/2016	133.51
DRO2812	ASAP	LUXEON SunPlus 20 Line Lime ASAP 5M Rays	L1SP-LME0002000000	09/30/2016	133.51
DRO2813	LightTools	LUXEON SunPlus 20 Line Lime LightTools Binary 5M Rays	L1SP-LME0002000000	09/30/2016	133.51
DRO2814	LucidShape	LUXEON SunPlus 20 Line Lime LucidShape 5M Rays	L1SP-LME0002000000	09/30/2016	133.51
DRO2815	Optis	LUXEON SunPlus 20 Line Lime Optis 5M Rays	L1SP-LME0002000000	09/30/2016	152.59
DRO2816	Photopia	LUXEON SunPlus 20 Line Lime Photopia 5M Rays	L1SP-LME0002000000	09/30/2016	133.51
DRO2811	ProSource rs8	LUXEON SunPlus 20 Line Lime ProSource rs8 format	L1SP-LME0002000000	09/30/2016	506.01
DRO2817	TracePro	LUXEON SunPlus 20 Line Lime TracePro Binary 5M Rays	L1SP-LME0002000000	09/30/2016	133.51
DRO2818	Zemax	LUXEON SunPlus 20 Line Lime Zemax 5M Rays	L1SP-LME0002000000	09/30/2016	133.51
DRO2820	ASAP	LUXEON SunPlus 20 Line Royal Blue ASAP 5M Rays	L1SP-RYL0002000000	09/30/2016	133.51
DRO2821	LightTools	LUXEON SunPlus 20 Line Royal Blue LightTools Binary 5M Rays	L1SP-RYL0002000000	09/30/2016	133.51
DRO2822	LucidShape	LUXEON SunPlus 20 Line Royal Blue LucidShape 5M Rays	L1SP-RYL0002000000	09/30/2016	133.51
DRO2823	Optis	LUXEON SunPlus 20 Line Royal Blue Optis 5M Rays	L1SP-RYL0002000000	09/30/2016	152.59
DRO2824	Photopia	LUXEON SunPlus 20 Line Royal Blue Photopia 5M Rays	L1SP-RYL0002000000	09/30/2016	133.51
DRO2819	ProSource rs8	LUXEON SunPlus 20 Line Royal Blue ProSource rs8 format	L1SP-RYL0002000000	09/30/2016	157.88
DRO2825	TracePro	LUXEON SunPlus 20 Line Royal Blue TracePro Binary 5M Rays	L1SP-RYL0002000000	09/30/2016	133.51
DRO2826	Zemax	LUXEON SunPlus 20 Line Royal Blue Zemax 5M Rays	L1SP-RYL0002000000	09/30/2016	133.51
DRO2796	ASAP	LUXEON SunPlus 20, Cool White ASAP 5M rays	L1SP-CW90002000000	09/24/2019	133.51
DRO3586	IES TM-25	LUXEON SunPlus 20, Cool White IES TM-25 5M rays	L1SP-CW90002000000	09/25/2019	133.55
DRO3589	ProSource rs8	LUXEON SunPlus 20, Cool White in ProSource rs8 format	L1SP-CW90002000000	09/25/2019	284.90
DRO2797	LightTools	LUXEON SunPlus 20, Cool White LightTools Binary 5M rays	L1SP-CW90002000000	09/24/2019	133.51
DRO2798	LucidShape	LUXEON SunPlus 20, Cool White LucidShape 5M rays	L1SP-CW90002000000	09/24/2019	133.51
DRO2799	Optis	LUXEON SunPlus 20, Cool White OPTIS 5M rays	L1SP-CW90002000000	09/24/2019	152.59
DRO3587	Photopia	LUXEON SunPlus 20, Cool White Photopia 5M rays	L1SP-CW90002000000	09/25/2019	133.51
DRO3588	TracePro	LUXEON SunPlus 20, Cool White TracePro Binary 5M rays	L1SP-CW90002000000	09/25/2019	133.51
DRO2802	Zemax	LUXEON SunPlus 20, Cool White Zemax 5M rays	L1SP-CW90002000000	09/24/2019	133.51
