LUXEON Z ES

Extreme flux density in a micro footprint package for precise optical control

LUXEON Z ES

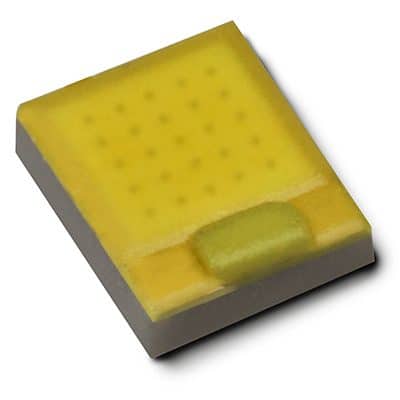

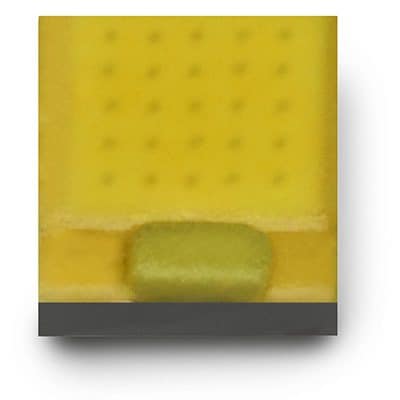

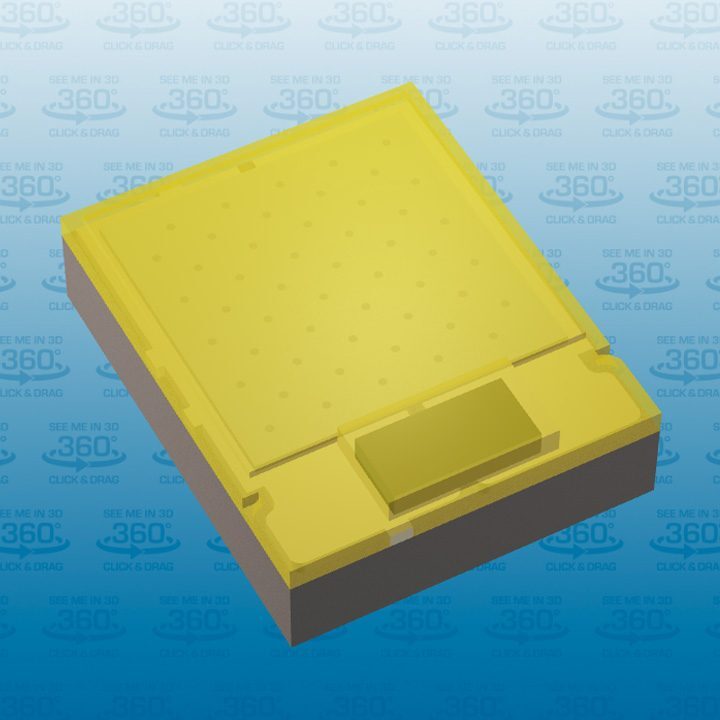

LUXEON Z ES is a high power 1.6mm x 2.0mm LED that enables never before seen color consistency, luminance, flux density and design flexibility for lighting solutions. LUXEON Z ES is undomed, a feature that provides unmatched optical flexibility for precise beam angle control. Tested and binned at application conditions, 85°C, LUXEON Z ES emitters are an ideal choice for indoor and outdoor light sources requiring superior beam angles, higher efficacy and lower costs.

Product performance at 700mA and 350mA, Tj=85°C.
Nominal
CCT
Minimum
CRI
Luminous Flux
(lm)
Typical
Luminous Efficacy
(lm/W)
Typical Luminous Flux (lm)Typical Luminous Efficacy (lm/W)Part Number
MinimumTypical
700mA350mA
4000K 70 220 260 133 143 150 LXZ2-4070
5000K 70 220 260 133 143 150 LXZ2-5070
5700K 70 220 270 138 149 156 LXZ2-5770
5700K Typ 70 250 270 138 149 156 LXZ2-577T
6500K 70 220 270 138 149 156 LXZ2-6570
6500K Typ 70 250 270 138 149 156 LXZ2-657T
2200K 80 140 188 96 103 109 LXZ2-2280-x
2700K 80 170 216 110 119 125 LXZ2-2780-x
3000K 80 180 230 117 127 133 LXZ2-3080-x
3500K 80 190 240 122 132 139 LXZ2-3580-x
4000K 80 190 248 127 136 144 LXZ2-4080-x
5000K 80 190 250 128 138 145 LXZ2-5080-x
2700K 90 140 180 92 99 104 LXZ2-2790-x
3000K 90 150 190 97 105 110 LXZ2-3090-x
3500K 90 150 197 101 108 114 LXZ2-3590-x
4000K 90 150 205 105 113 119 LXZ2-4090-x
5700K 90 170 215 110 118 124 LXZ2-5790-x



Product performance for LUXEON Z ES Royal Blue at 700mA, Tj=85°C.
ColorRadiometric Power (mW)Typical
Radiant Efficacy
(%)
Part Number
MinimumTypical
Royal Blue 800 850 45% LXZ2-PR02

Refer to datasheet for additional information.

Documentation

Design Resources

  • Electrical

    Electrical

    LUXEON Z ES
    LL ID File Format Title Products Modified Size (MB)
    DRE1621 DWG LUXEON Z ES Design A MCPCB LXZ2-2780-Y
    LXZ2-2790-Y
    LXZ2-3080-Y
    LXZ2-3090-Y
    More Products
    06/20/2013 0.10
    DRE1622 DWG LUXEON Z ES Design B MCPCB LXZ2-2780-Y
    LXZ2-2790-Y
    LXZ2-3080-Y
    LXZ2-3090-Y
    More Products
    06/20/2013 0.16
  • Mechanical

    Mechanical

    LUXEON Z ES
    LL ID File Format Title Products Modified Size (MB)
    DRM1498 STEP LUXEON Z ES STEP LXZ2-2780-Y
    LXZ2-2790-Y
    LXZ2-3080-Y
    LXZ2-3090-Y
    More Products
    04/29/2013 0.02

Features & Benefits

  • Micro footprint enables close packaging
  • Undomed design allows precise optical control
  • 3- and 5-step MacAdam ellipse: Freedom from Binning enabling color consistency
  • LM-80 test report available

Applications
