LUXEON M

Brightest, most uniform and highest efficacy multi-die emitter

Home / Products / High Power LEDs / LUXEON M

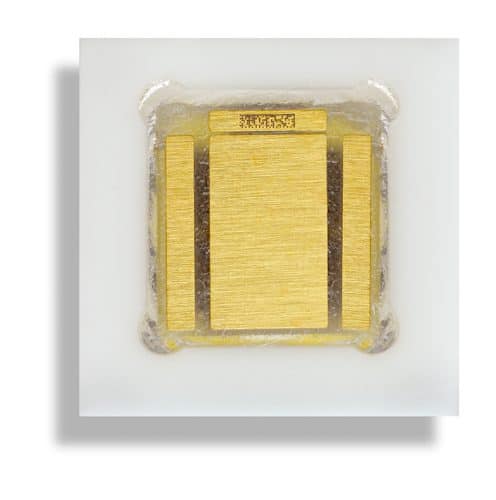

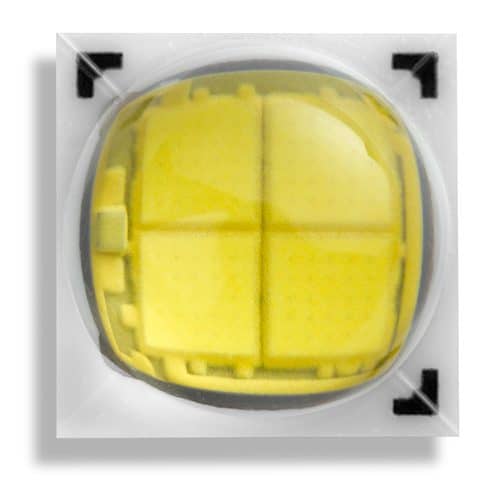

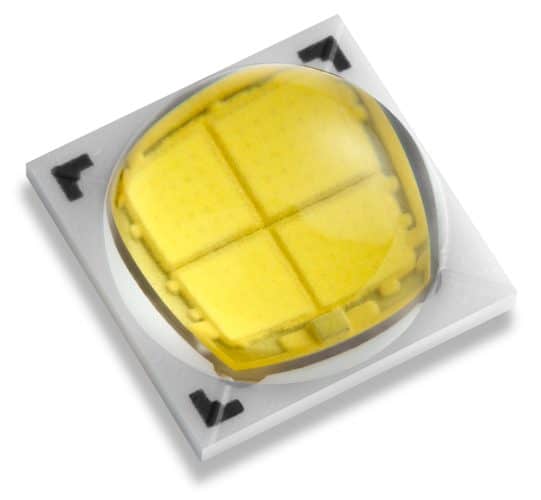

LUXEON M

LUXEON M is an illumination grade multi-die LED designed to enable outdoor and industrial applications targeting either high efficiency or low cost. With Freedom from Binning and leading performance, LUXEON M falls within a single 3- or 5-step MacAdam ellipse centered in ANSI to ensure color consistency from LED to LED, delivering high efficacy and high flux density from a uniform source with tight correlated color temperature control. The superior quality of light, volume of lumens, and real world efficacy enable leading performance and efficient solution development in a wide variety of lighting segments.

Product performance for LUXEON M White at test current, Tj=85°C.
VoltageNominal
CCT		Minimum
CRI		Luminous Flux
(lm)		Test
Current
(mA)		Part Number
MinimumTypical
12V 3000K 70 900 1000 700 LXR7-SW30
4000K 70 970 1076 700 LXR7-SW40
5000K 70 1040 1100 700 LXR7-SW50
5700K 70 1040 1110 700 LXR7-SW57
6500K 70 1040 1130 700 LXR7-SW65
2700K 80 730 800 700 LXR8-SW27
3000K 80 780 850 700 LXR8-SW30
3500K 80 780 870 700 LXR8-SW35
4000K 80 840 905 700 LXR8-SW40
5000K 80 840 920 700 LXR8-SW50
2700K 90 600 660 700 LXR9-SW27
3000K 90 640 736 700 LXR9-SW30
5700K 90 800 880 700 LXR9-SW57
6V 3000K 70 900 1000 1400 LXR7-RW30
4000K 70 970 1076 1400 LXR7-RW40
5000K 70 1040 1100 1400 LXR7-RW50
5700K 70 1040 1110 1400 LXR7-RW57
6500K 70 1040 1130 1400 LXR7-RW65
2700K 80 730 800 1400 LXR8-RW27
3000K 80 780 850 1400 LXR8-RW30
3500K 80 780 870 1400 LXR8-RW35
4000K 80 840 920 1400 LXR8-RW40
5000K 80 840 920 1400 LXR8-RW50
2700K 90 600 660 1400 LXR9-RW27
3000K 90 640 736 1400 LXR9-RW30
5700K 90 800 880 1400 LXR9-RW27
3V 3000K 70 900 1000 2800 LXR7-QW30
4000K 70 970 1076 2800 LXR7-QW40
5000K 70 1040 1100 2800 LXR7-QW50
5700K 70 1040 1110 2800 LXR7-QW57
6500K 70 1040 1130 2800 LXR7-QW65
2700K 80 730 800 2800 LXR8-QW27
3000K 80 780 850 2800 LXR8-QW30
3500K 80 780 870 2800 LXR8-QW35
4000K 80 840 920 2800 LXR8-QW40
5000K 80 840 920 2800 LXR8-QW50
2700K 90 600 660 2800 LXR9-QW27
3000K 90 640 736 2800 LXR9-QW30
5700K 90 800 880 2800 LXR9-QW57


Documentation

Design Resources

  • Electrical

    Electrical

    LUXEON M
    top
    LL ID File Format Title Products Modified Size (MB)
    DRE1415 Gerber LUXEON M Star MCPCB Gerber LXR7-SW40
    LXR7-SW57
    LXR8-SW40
    		 02/06/2013 0.01
  • Mechanical

    Mechanical

    LUXEON M
    top
    LL ID File Format Title Products Modified Size (MB)
    DRM0946 DWG LUXEON M MCPCB Layout LXR7-SW40
    LXR7-SW57     		07/22/2016 0.03
    DRM0947 STP LUXEON M STP LXR7-SW40
    LXR7-SW57     		01/04/2013 0.08
LUXEON M
  • LUXEON M
  • LUXEON M

Features & Benefits

  • Uniform image enables tight beam control in MR16 and spotlight applications
  • High flux density from a 3mm2 area enables reduced emitter count and compact fixture designs
  • 11.2V, 5.6V and 2.8V package options puts high performance within reach with high efficiency and low cost drivers
  • Leading thermal resistance allows flexible system design to optimize for lm/$ and lm/W
  • Exceeds ENERGY STAR® lumen maintenance requirements

Applications
