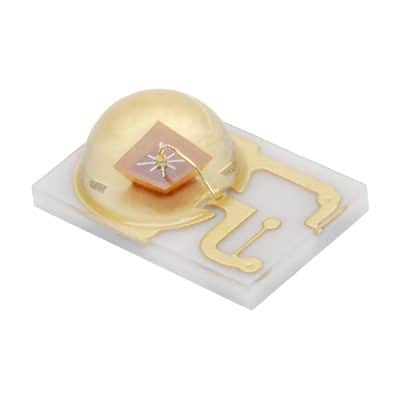

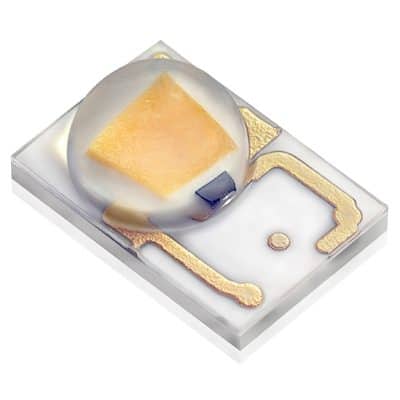

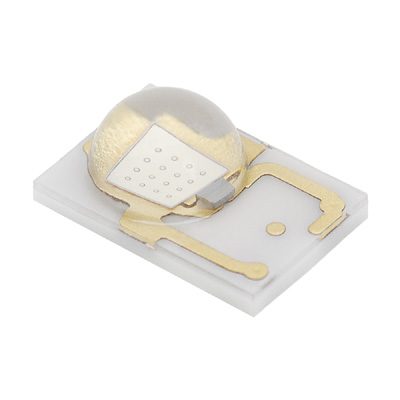

LUXEON Rebel Color Line

The LUXEON Rebel Color Line has leading light output, color stability, flux density and clear saturated colors. These color LEDs are ideal for a wide variety of lighting, signaling, signage and entertainment applications. Every LUXEON Rebel Color emitter has built-in quality, reliability, lumen maintenance and the ease of manufacturing needed to create a superior, high quality light. LUXEON Rebel Color emitters give designers an endless palette of colors to work with, adding interest, dimension and liveliness to all lighting projects.

Product performance of LUXEON Rebel Color Line at test conditions.

ColorDominant[1,2] or Peak[2]
Wavelength (nm)
Luminous Flux [1,3](lm) or
Radiometric Power[3] (mW)
Test Current (mA)Part Number
MinimumMaximumMinimumTypical
Deep RedFar Red720750210260350LXML-PF01
Deep RedDeep Red650670270360350LXM3-PD01
RedRed6206456062350LXM2-PD01-0060
6206455053350LXM2-PD01-0050
6206454048350LXM2-PD01-0040
6206455052350LXML-PD01-0050
6206454046350LXML-PD01-0040
6206453038350LXML-PD01-0030
6206455064350LXM5-PD01
Red OrangeRed-Orange6106207072350LXM2-PH01-0070
6106206067350LXM2-PH01-0060
6106206062350LXML-PH01-0060
6106205056350LXML-PH01-0050
6106205090350LXM5-PH01
AmberPC Amber59460480110350LXM2-PL01-0000
AmberAmber5855956061350LXML-PL01-0060
5855955054350LXML-PL01-0050
5855954048350LXML-PL01-0040
5855953038350LXML-PL01-0030
5855955074350LXM5-PL01
LimeLime566569140184350LXML-PX02-0000
GreenGreen520540100102350LXML-PM01-0100
5205409095350LXML-PM01-0090
5205408088350LXML-PM01-0080
5205407079350LXML-PM01-0070
CyanCyan4905158083350LXML-PE01-0080
4905157076350LXML-PE01-0070
4905156067350LXML-PE01-0060
BlueBlue4604854041350LXML-PB01-0040
4604853035350LXML-PB01-0030
4604852328350LXML-PB01-0023
4604851822350LXML-PB01-0018
4604855074350LXML-PB02
Royal BlueRoyal Blue440460500520350LXML-PR01-0500
44046011001120700LXML-PR02-1100
44046010501070700LXML-PR02-1050
44046010001030700LXML-PR02-1000
440460950970700LXML-PR02-0950
440460900940700LXML-PR02-0900
440460800890700LXML-PR02-0800
4404609001030700LXML-PR02-A900[4]

Table Notes:
1. Lumileds maintains a tolerance of ±0.5nm for dominant wavelength and ±6.5% on luminous flux measurements.
2. Far Red, Deep Red and Royal Blue are binned by peak wavelength and all other colors by dominant wavelength.
3. Far Red, Deep Red and Royal Blue are binned by radiometric power and all other colors by luminous flux.
4. LXML-PR02-A900 is a selection of color bins 4 and 5 only.

Documentation

Design Resources

Features & Benefits

  • Full color palette for a wider spectrum range
  • Highest efficacy available for colors, allowing for lower power consumption
  • High flux and leading hot and cold performance for saturated colors
  • Fully developed ecosystem for LUXEON Rebel platforms

Applications
