LUXEON CZ Color Line

Maximum punch in any application

LUXEON CZ Color Line

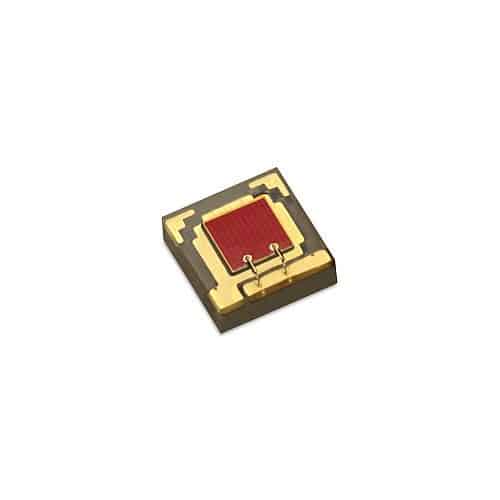

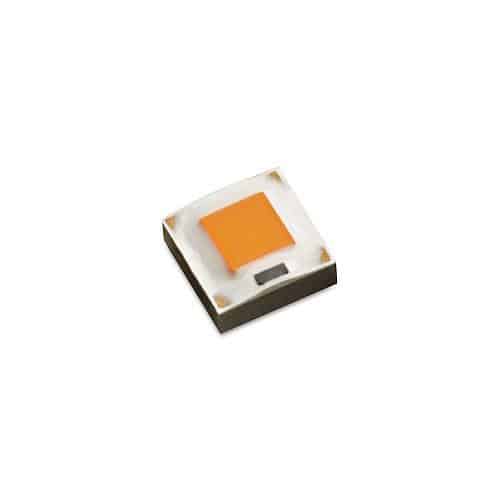

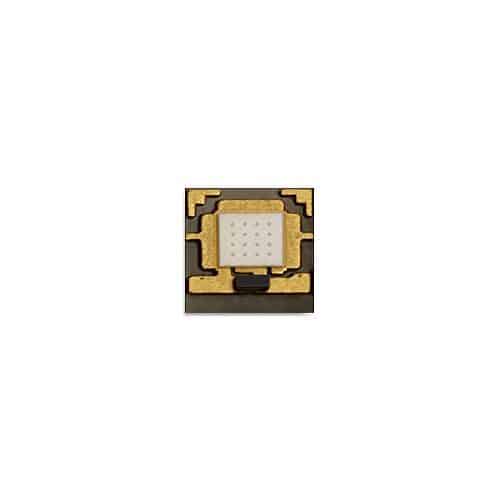

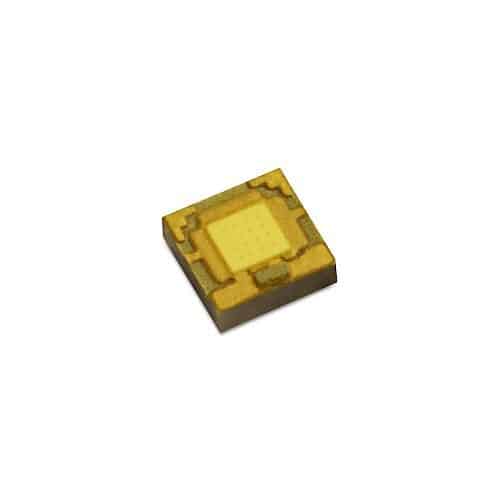

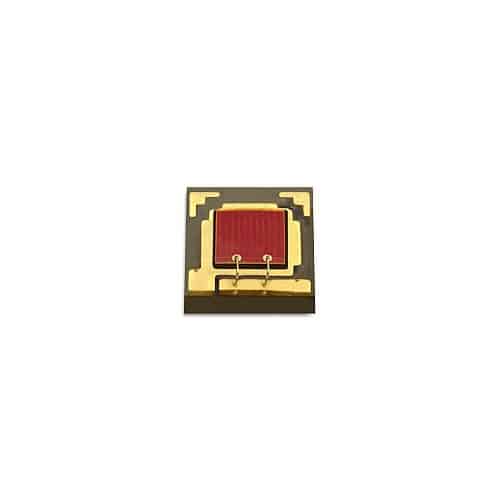

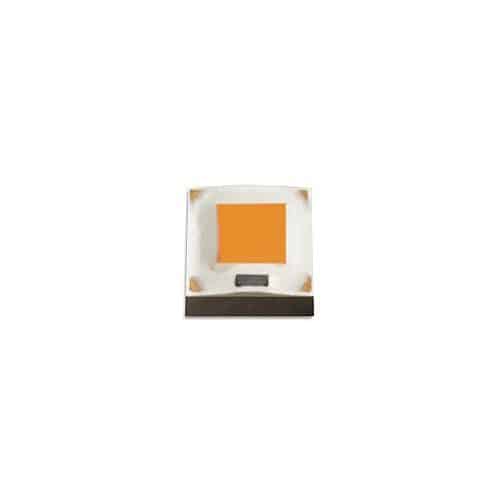

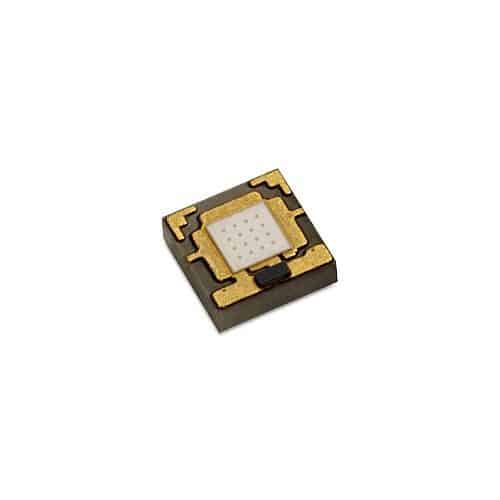

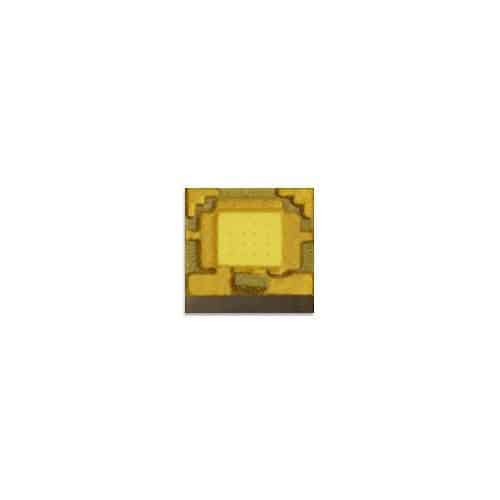

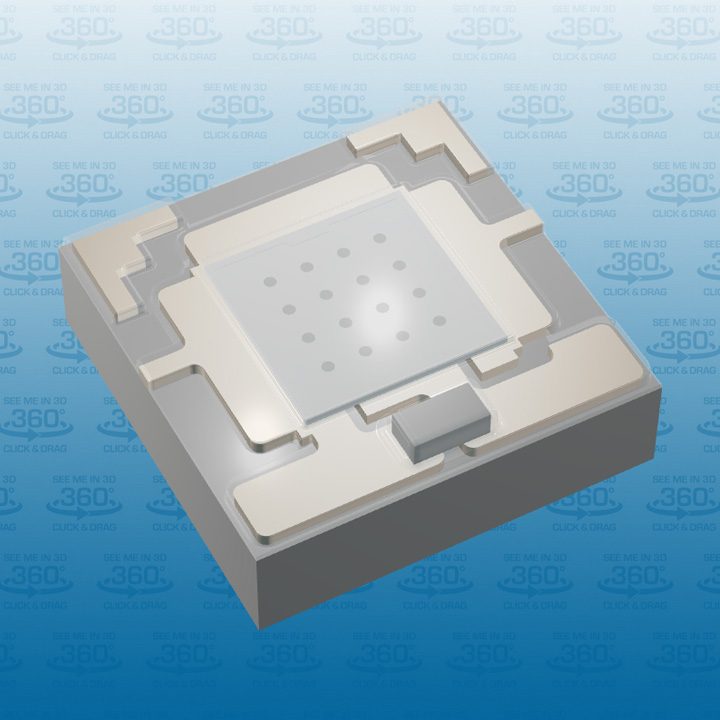

LUXEON CZ Color Line is an optically advanced portfolio of Color and White LEDs. Designed to maximize punch, the LUXEON CZ Color Line is the optimal LED solution for architecture, entertainment and emergency vehicle lighting applications.

LUXEON CZ Colors product performance at 350mA,Tj=85°C.

ColorDominant or Peak
Wavelength (nm)
Luminous Flux (lm) or
Radiometric Power (mW)
Part Number
MinimumMaximumMinimumTypical
Far RedFar Red 720 750 150 200 L1CU-FRD1000000000
Deep RedDeep Red 655 675 190 225 L1CU-DRD1000000000
RedRed 624 634 20 31 L1CU-RED1000000000
Red OrangeRed-Orange 614 624 25 37 L1CU-RNG1000000000
AmberAmber 585 600 10 16 L1CU-AMB1000000000
AmberPC Amber - - 65 78 L1CU-PCA1000000000
MintMint - - 120 132 L1CU-MNT1000000000
LimeLime - - 120 122 L1CU-LME1000000000
GreenGreen 520 540 80 99 L1CU-GRN1000000000
CyanCyan 490 510 60 73 L1CU-CYN1000000000
BlueBlue 465 485 25 33 L1CU-BLU1000000000
Royal BlueRoyal Blue 440 460 360 425 L1CU-RYL1000000000
Royal BlueViolet 420 430 400 458 L1CU-VLT1000000000



LUXEON CZ White product performance at 350mA,Tj=85°C.

NOMINAL CCTMinimum CRILuminous Flux (lm)Typical Luminous
Efficacy (lm/W)
Part Number
MinimumTypical
4000K 70 100 109 113 L1CU-4070000000000
5000K 70 100 109 113 L1CU-5070000000000
5700K 70 100 109 113 L1CU-5770000000000
6500K 70 100 109 113 L1CU-6570000000000
2700K 80 80 89 92 L1CU-2780000000000
3000K 80 90 95 99 L1CU-3080000000000
4000K 80 90 99 103 L1CU-4080000000000
5700K 90 70 89 92 L1CU-5790000000000



Documentation

Design Resources

  • Mechanical

    Mechanical

    LUXEON CZ Color
    LL ID File Format Title Products Modified Size (MB)
    DRM3161 STEP LUXEON CZ Color Line AlInGaP STEP L1CU-AMB1000000000
    L1CU-DRD1000000000
    L1CU-FRD1000000000
    L1CU-RED1000000000
    More Products
    07/24/2018 0.04
    DRM3165 STEP LUXEON CZ Color Line Direct InGaN STEP L1CU-BLU1000000000
    L1CU-CYN1000000000
    L1CU-GRN1000000000
    L1CU-RYL1000000000
    More Products
    07/24/2018 0.13
    DRM3166 STEP LUXEON CZ Color Line PC Amber STEP L1CU-PCA1000000000 07/24/2018 0.01
    DRM3164 STEP LUXEON CZ Color Line White, Mint STEP L1CU-MNT1000000000
    L1CU-xxxx000000000
    07/24/2018 0.16
    DRM3167 STEP LUXEON CZ Color Line White, Mint STEP L1CU-MNT1000000000
    L1CU-xxxx000000000
    07/24/2018 0.16

  • Small and symmetrical 2x2mm² package
  • Industry leading Hot/Cold Factors and the lowest thermal resistance
  • Maximized punch (cd/lm)

Applications
