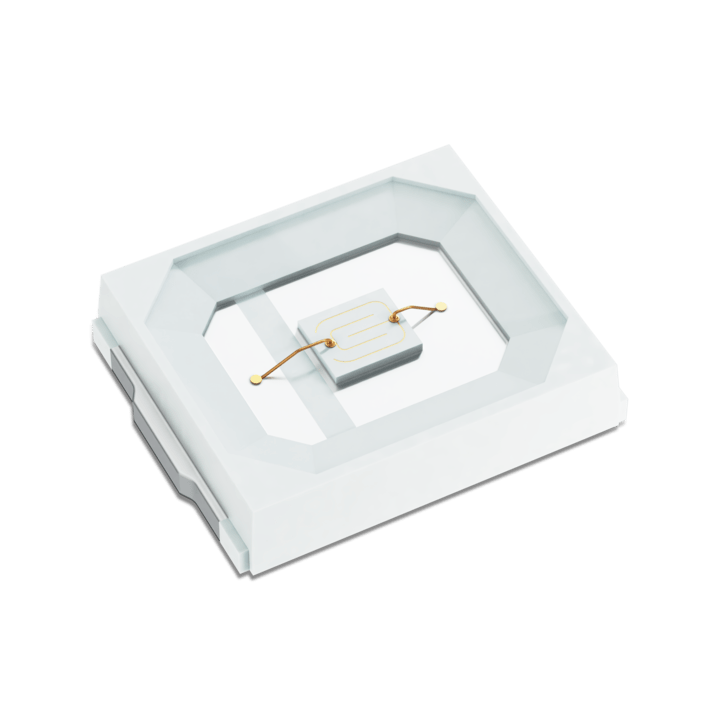

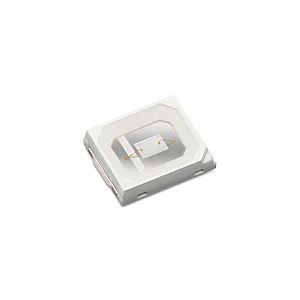

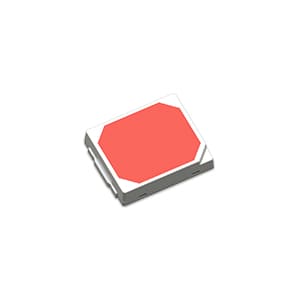

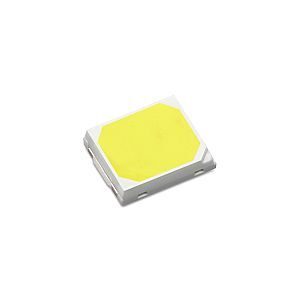

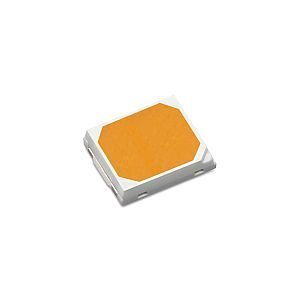

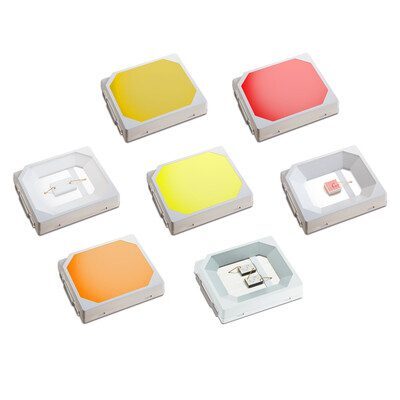

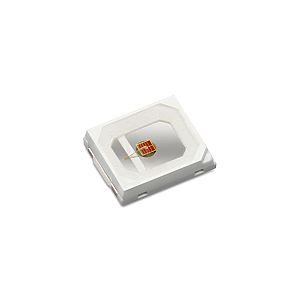

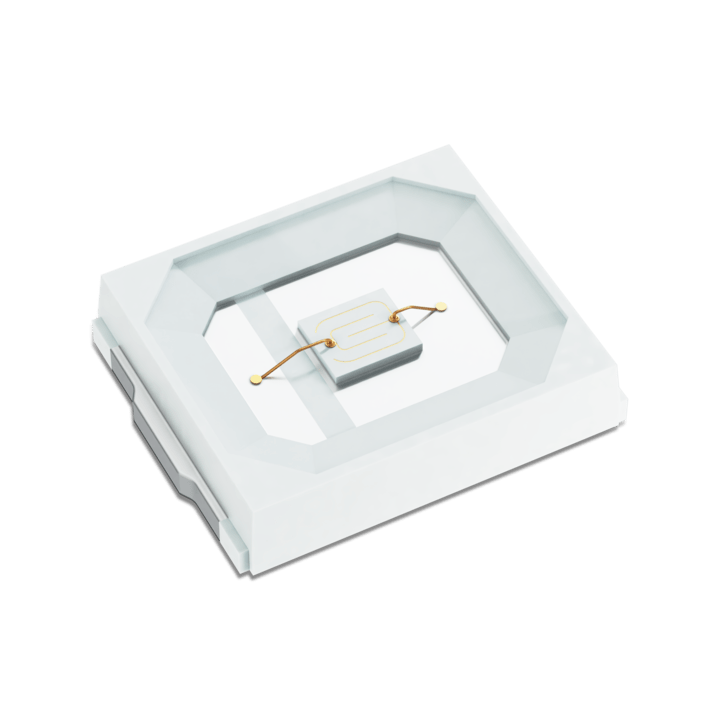

LUXEON 2835 Color Line

The LUXEON 2835 Color Line enables a new era of color lighting. This robust color line provides high performance and is targeted at cost effective designs. Complemented by a broad range of white offerings, the LUXEON 2835 Color Line enables RGBW applications. This product line extends the comprehensive LUXEON Color Family.

LUXEON 2835 Colors product performance at 120mA and 200mA,T_j=25°C.

Color	Dominant or Peak Wavelength (nm)	Luminous Flux (lm) or Radiometric Power (mW)	Part Number
Far Red	720	740	85	97	159	L128-FRD1003500000
Deep Red	650	670	98	108	192	L128-DRD1003500000
Red	620	630	15	17	27	L128-RED1003500000
Red-Orange	610	620	19	20	32	L128-RNG1003500000
PC Amber	-	-	44	48	75	L128-PCA1003500000
Mint	-	-	69	75	117	L128-MNT1003500000
Lime	-	-	70	77	121	L128-LME1003500000
Green	520	540	40	45	61	L128-GRN1003500000
Cyan	490	510	24	27	38	L128-CYN1003500000
Blue	469	480	14	16	24	L128-BLU1003500000
Royal Blue	440	455	185	205	325	L128-RYL1003500000

Color

Dominant or Peak
Wavelength (nm)

Luminous Flux (lm) or
Radiometric Power (mW)

Part Number

Minimum

Maximum

Minimum

120mA Typical

200mA Typical

Far Red

720

740

159

L128-FRD1003500000

Deep Red

650

670

108

192

L128-DRD1003500000

Red

620

630

L128-RED1003500000

Red-Orange

610

620

L128-RNG1003500000

PC Amber

L128-PCA1003500000

Mint

117

L128-MNT1003500000

Lime

121

L128-LME1003500000

Green

520

540

L128-GRN1003500000

Cyan

490

510

L128-CYN1003500000

Blue

469

480

L128-BLU1003500000

Royal Blue

440

455

185

205

325

L128-RYL1003500000

LUXEON 2835 White product performance at 120mA,T_j=25°C.

Color	Nominal CCT	Minimum CRI	Luminous Flux (lm)	Typical Luminous Efficacy (lm/W)	Part Number
White	5700K	70	58	64	187	L128-5770003500000
3000K	80	54	59	173	L128-3080003500000
4000K	80	56	62	181	L128-4080003500000

Color

Nominal CCT

Minimum CRI

Luminous Flux (lm)

Typical Luminous
Efficacy (lm/W)

Part Number

Minimum

Typical

White

5700K

187

L128-5770003500000

3000K

173

L128-3080003500000

4000K

181

L128-4080003500000

Documentation

Design Resources

Doc Number	Title	Size (KB)	Last Modified
DS236	LUXEON 2835 Color Line Product Datasheet	2675	Oct 31, 2018

Doc Number	Title	Size (KB)	Last Modified
PB236	LUXEON 2835 Color Line Product Brief	1460	Nov 4, 2018

Mechanical

LUXEON 2835 Color Line

top

LL ID	File Format	Title	Products	Modified	Size (MB)
DRO3336	ASAP	LUXEON 2835 Blue, Royal Blue ASAP 5M rays	L128-BLU1003500000 L128-RYL1003500000	11/26/2018	133.51
DRM2728	STEP	LUXEON 2835 Line STEP	L128-BLU1003500000 L128-CYN1003500000 L128-DRD1003500000 L128-FRD1003500000 More Products L128-GRN1003500000 L128-LME1003500000 L128-MNT1003500000 L128-PCA1003500000 L128-RED1003500000 L128-RNG1003500000 L128-RYL1003500000 L128-xxxxCA3500001 L128-xxxxCB3500001 L128-xxxxEA3500001 L128-xxxxEB3500001 L128-xxxxEC3500001 L128-xxxxHA3500001	11/26/2018	0.04

Optical

LUXEON 2835 Color Line

top

In order to properly use the design resource files below, please download the README file for instructions.

LL ID	File Format	Title	Products	Modified	Size (MB)
DRO3336	ASAP	LUXEON 2835 Blue, Royal Blue ASAP 5M rays	L128-BLU1003500000 L128-RYL1003500000	11/26/2018	133.51
DRO3337	IES TM-25	LUXEON 2835 Blue, Royal Blue IES TM-25 5M rays	L128-BLU1003500000 L128-RYL1003500000	11/26/2018	133.55
DRO3344	ProSource rs8	LUXEON 2835 Blue, Royal Blue in ProSource rs8 format	L128-BLU1003500000 L128-RYL1003500000	11/28/2018	174.63
DRO3338	LightTools	LUXEON 2835 Blue, Royal Blue LightTools Binary 5M rays	L128-BLU1003500000 L128-RYL1003500000	11/28/2018	133.51
DRO3339	LucidShape	LUXEON 2835 Blue, Royal Blue LucidShape 5M rays	L128-BLU1003500000 L128-RYL1003500000	11/28/2018	133.51
DRO3340	Optis	LUXEON 2835 Blue, Royal Blue OPTIS 5M rays	L128-BLU1003500000 L128-RYL1003500000	11/28/2018	152.59
DRO3341	Photopia	LUXEON 2835 Blue, Royal Blue Photopia 5M rays	L128-BLU1003500000 L128-RYL1003500000	11/28/2018	133.51
DRO3342	TracePro	LUXEON 2835 Blue, Royal Blue TracePro Binary 5M rays	L128-BLU1003500000 L128-RYL1003500000	11/28/2018	133.51
DRO3343	Zemax	LUXEON 2835 Blue, Royal Blue Zemax 5M rays	L128-BLU1003500000 L128-RYL1003500000	11/28/2018	133.51
DRO3345	ASAP	LUXEON 2835 Cyan ASAP 5M rays	L128-CYN1003500000	11/28/2018	133.51
DRO3346	IES TM-25	LUXEON 2835 Cyan IES TM-25 5M rays	L128-CYN1003500000	11/28/2018	133.55
DRO3353	ProSource rs8	LUXEON 2835 Cyan in ProSource rs8 format	L128-CYN1003500000	11/28/2018	187.68
DRO3347	LightTools	LUXEON 2835 Cyan LightTools Binary 5M rays	L128-CYN1003500000	11/28/2018	133.51
DRO3348	LucidShape	LUXEON 2835 Cyan LucidShape 5M rays	L128-CYN1003500000	11/28/2018	133.51
DRO3349	Optis	LUXEON 2835 Cyan OPTIS 5M rays	L128-CYN1003500000	11/28/2018	152.59
DRO3350	Photopia	LUXEON 2835 Cyan Photopia 5M rays	L128-CYN1003500000	11/28/2018	133.51
DRO3351	TracePro	LUXEON 2835 Cyan TracePro Binary 5M rays	L128-CYN1003500000	11/28/2018	133.51
DRO3352	Zemax	LUXEON 2835 Cyan Zemax 5M rays	L128-CYN1003500000	11/28/2018	133.51
DRO3354	ASAP	LUXEON 2835 Green ASAP 5M rays	L128-GRN1003500000	11/28/2018	133.52
DRO3355	IES TM-25	LUXEON 2835 Green IES TM2-5 5M rays	L128-GRN1003500000	11/28/2018	133.55
DRO3362	ProSource rs8	LUXEON 2835 Green in ProSource rs8 format	L128-GRN1003500000	11/28/2018	145.57
DRO3356	LightTools	LUXEON 2835 Green LightTools Binary 5M rays	L128-GRN1003500000	11/28/2018	133.52
DRO3357	LucidShape	LUXEON 2835 Green LucidShape 5M rays	L128-GRN1003500000	11/28/2018	133.52
DRO3358	Optis	LUXEON 2835 Green OPTIS 5M rays	L128-GRN1003500000	11/28/2018	152.59
DRO3359	Photopia	LUXEON 2835 Green Photopia 5M rays	L128-GRN1003500000	11/28/2018	133.52
DRO3360	TracePro	LUXEON 2835 Green TracePro Binary 5M rays	L128-GRN1003500000	11/28/2018	133.52
DRO3361	Zemax	LUXEON 2835 Green Zemax 5M rays	L128-GRN1003500000	11/28/2018	133.52
DRO3372	ASAP	LUXEON 2835 Lime ASAP 5M rays	L128-LME1003500000	11/28/2018	133.51
DRO3373	IES TM-25	LUXEON 2835 Lime IES TM-25 5M rays	L128-LME1003500000	11/28/2018	133.55
DRO3380	ProSource rs8	LUXEON 2835 Lime in ProSource rs8 format	L128-LME1003500000	11/28/2018	484.20
DRO3374	LightTools	LUXEON 2835 Lime LightTools Binary 5M rays	L128-LME1003500000	11/28/2018	133.51
DRO3375	LucidShape	LUXEON 2835 Lime LucidShape 5M rays	L128-LME1003500000	11/28/2018	133.51
DRO3376	Optis	LUXEON 2835 Lime OPTIS 5M rays	L128-LME1003500000	11/28/2018	152.59
DRO3377	Photopia	LUXEON 2835 Lime Photopia 5M rays	L128-LME1003500000	11/28/2018	133.51
DRO3378	TracePro	LUXEON 2835 Lime TracePro Binary 5M rays	L128-LME1003500000	11/28/2018	133.51
DRO3379	Zemax	LUXEON 2835 Lime Zemax 5M rays	L128-LME1003500000	11/28/2018	133.51
DRO3381	ASAP	LUXEON 2835 Mint ASAP 5M rays	L128-MNT1003500000	11/28/2018	133.51
DRO3382	IES TM-25	LUXEON 2835 Mint IES TM-25 5M rays	L128-MNT1003500000	11/28/2018	133.55
DRO3389	ProSource rs8	LUXEON 2835 Mint in ProSource rs8 format	L128-MNT1003500000	11/28/2018	493.66
DRO3383	LightTools	LUXEON 2835 Mint LightTools Binary 5M rays	L128-MNT1003500000	11/28/2018	133.51
DRO3384	LucidShape	LUXEON 2835 Mint LucidShape 5M rays	L128-MNT1003500000	11/28/2018	133.51
DRO3385	Optis	LUXEON 2835 Mint OPTIS 5M rays	L128-MNT1003500000	11/28/2018	152.59
DRO3386	Photopia	LUXEON 2835 Mint Photopia 5M rays	L128-MNT1003500000	11/28/2018	133.51
DRO3387	TracePro	LUXEON 2835 Mint TracePro Binary 5M rays	L128-MNT1003500000	11/28/2018	133.51
DRO3388	Zemax	LUXEON 2835 Mint Zemax 5M rays	L128-MNT1003500000	11/28/2018	133.51
DRO3363	ASAP	LUXEON 2835 PC Amber ASAP 5M rays	L128-PCA1003500000	11/28/2018	133.51
DRO3364	IES TM-25	LUXEON 2835 PC Amber IES TM-25 5M rays	L128-PCA1003500000	11/28/2018	133.55
DRO3371	ProSource rs8	LUXEON 2835 PC Amber in ProSource rs8 format	L128-PCA1003500000	11/28/2018	428.92
DRO3365	LightTools	LUXEON 2835 PC Amber LightTools Binary 5M rays	L128-PCA1003500000	11/28/2018	133.51
DRO3366	LucidShape	LUXEON 2835 PC Amber LucidShape 5M rays	L128-PCA1003500000	11/28/2018	133.51
DRO3367	Optis	LUXEON 2835 PC Amber OPTIS 5M rays	L128-PCA1003500000	11/28/2018	152.59
DRO3368	Photopia	LUXEON 2835 PC Amber Photopia 5M rays	L128-PCA1003500000	11/28/2018	133.51
DRO3369	TracePro	LUXEON 2835 PC Amber TracePro Binary 5M rays	L128-PCA1003500000	11/28/2018	133.51
DRO3370	Zemax	LUXEON 2835 PC Amber Zemax 5M rays	L128-PCA1003500000	11/28/2018	133.51
DRO3391	ASAP	LUXEON 2835 Red, Red-Orange, Deep Red, Far Red ASAP 5M rays	L128-DRD1003500000 L128-FRD1003500000 L128-RED1003500000 L128-RNG1003500000	11/28/2018	133.52
DRO3392	IES TM-25	LUXEON 2835 Red, Red-Orange, Deep Red, Far Red IES TM-25 5M rays	L128-DRD1003500000 L128-FRD1003500000 L128-RED1003500000 L128-RNG1003500000	11/28/2018	133.55
DRO3390	ProSource rs8	LUXEON 2835 Red, Red-Orange, Deep Red, Far Red in ProSource rs8 format	L128-DRD1003500000 L128-FRD1003500000 L128-RED1003500000 L128-RNG1003500000	11/28/2018	113.02
DRO3393	LightTools	LUXEON 2835 Red, Red-Orange, Deep Red, Far Red LightTools Binary 5M rays	L128-DRD1003500000 L128-FRD1003500000 L128-RED1003500000 L128-RNG1003500000	11/28/2018	133.52
DRO3394	LucidShape	LUXEON 2835 Red, Red-Orange, Deep Red, Far Red LucidShape 5M rays	L128-DRD1003500000 L128-FRD1003500000 L128-RED1003500000 L128-RNG1003500000	11/28/2018	133.52
DRO3395	Optis	LUXEON 2835 Red, Red-Orange, Deep Red, Far Red OPTIS 5M rays	L128-DRD1003500000 L128-FRD1003500000 L128-RED1003500000 L128-RNG1003500000	11/28/2018	152.59
DRO3396	Photopia	LUXEON 2835 Red, Red-Orange, Deep Red, Far Red Photopia 5M rays	L128-DRD1003500000 L128-FRD1003500000 L128-RED1003500000 L128-RNG1003500000	11/28/2018	133.52
DRO3397	TracePro	LUXEON 2835 Red, Red-Orange, Deep Red, Far Red TracePro Binary 5M rays	L128-DRD1003500000 L128-FRD1003500000 L128-RED1003500000 L128-RNG1003500000	11/28/2018	133.52
DRO3398	Zemax	LUXEON 2835 Red, Red-Orange, Deep Red, Far Red Zemax 5M rays	L128-DRD1003500000 L128-FRD1003500000 L128-RED1003500000 L128-RNG1003500000	11/28/2018	133.52
