Color LEDs

Nearly a decade ago, Lumileds launched the LUXEON Rebel Color Line–the market-leading color LEDs that have been transforming lighting designs ever since. Today, Lumileds delivers a complete range of colors, from far red to cyan, UV and even lime and mint. With three high power color lines – LUXEON Rebel, LUXEON Z, LUXEON C – and the LUXEON 2835 and 3535L Color Line, Lumileds offers the most comprehensive family of mid and high power color LEDs with the industry’s best quality of light.

NEW – Expansion and Performance Upgrade of LUXEON C and LUXEON CZ Color Lines

The luminous flux is greater than in the previous generation: 20% up for Green; 10% up for Cyan, 5% up for Blue, while radiometric power for the Deep Red and Far Red LEDs are 20% brighter. In addition, the white color range has also been enriched to 13 white LED selections for LUXEON C and 14 white LEDs for LUXEON CZ Color Line. Both LUXEON C and LUXEON CZ have also added 90 CRI options at various CCTs.

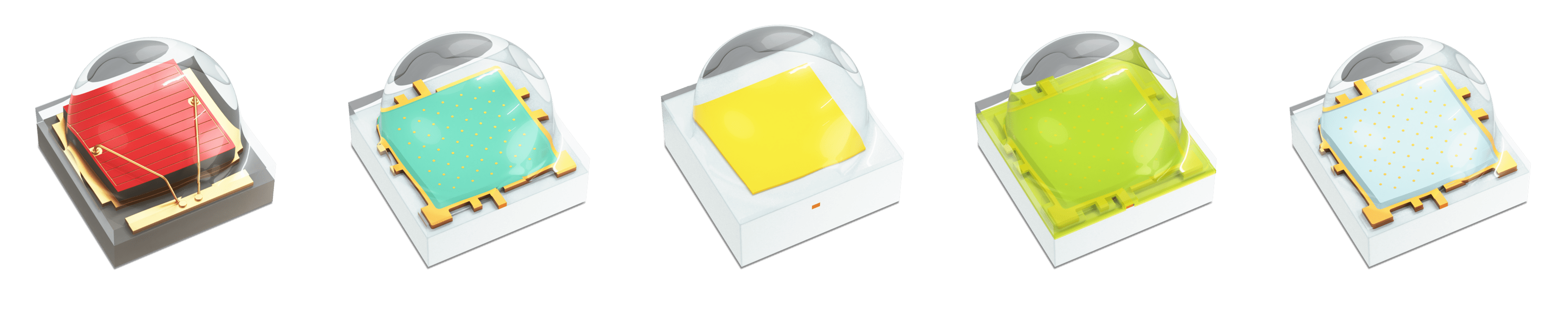

LUXEON C and LUXEON CZ high power RGB LEDs

View the LUXEON C Color Line Datasheet

View the LUXEON CZ Color Line Datasheet

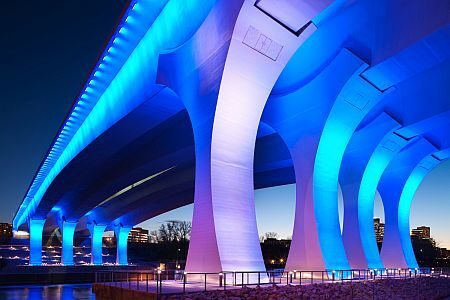

LUXEON 2835 Color Line

The LUXEON 2835 Color Line enables a new era of color lighting. This robust color line provides high performance and is targeted at cost effective designs. Complemented by a broad range of white offerings, the LUXEON 2835 Color Line enables RGBW applications. This product line extends the comprehensive LUXEON Color Family:

  • Single die and single source architecture for optical control
  • Full color palette for a wider spectrum range

LUXEON 3528 RGB

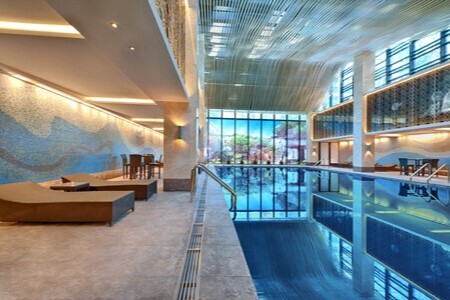

LUXEON 3258 is the perfect RGB package for indoor, architectural, and decorative applications. Its very compact, low profile package – only 1.75mm – can manage up to 0.5W of power and has an IPX8 water resistant rating. Each of the three color channels can be individually addressed and controlled. It pairs perfectly with LUXEON 2835 Architectural white LEDs for additional color changing options.

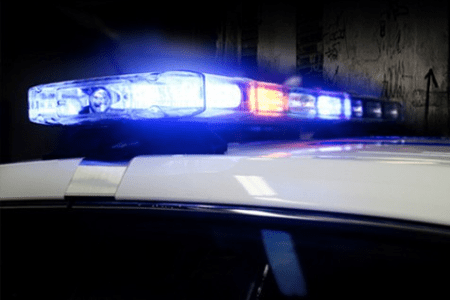

LUXEON 3535L Color Line

The LUXEON 3535L Color Line enables a new era of color lighting. This robust color line provides high performance and is targeted at cost effective designs. Complemented by a broad range of white offerings, the LUXEON 3535L Color Line enables RGBW applications. This product line extends the comprehensive LUXEON Color Family.

  • Industry standard package enables drop-in replacement for existing 3535 packages
  • Single die and single source architecture for optical control
  • Common focal length with LUXEON Rebel and LUXEON Z Color LEDs
  • Full color palette for a wider spectrum range

LUXEON 3735 RGB

The LUXEON 3735 RGB is a compact 3-in-1 package that offers flexibility and versatility. With the ability to control individually or all at the same time the color control is precise.

  • RGB 3-in-1 module
  • 3.7mm x 3.5mm
  • Individually control each channel
  • IPX8 water resistant rating

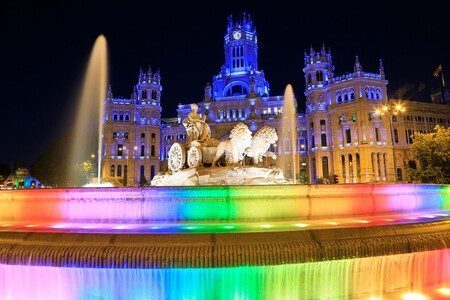

LUXEON 5052 RGBW

The LUXEON 5052 RGBW is a 4-in-1 package that makes color tuning easier. Each channel is individually addressable, enabling a large color gamut while simplifying the ability of getting just the right color point.

  • RGBW 4-in-1 module
  • 5.0mm x 5.2mm
  • Individually control each channel

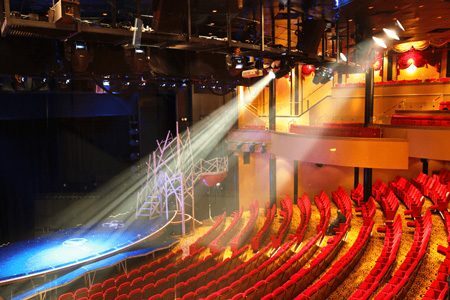

LUXEON C Color Line

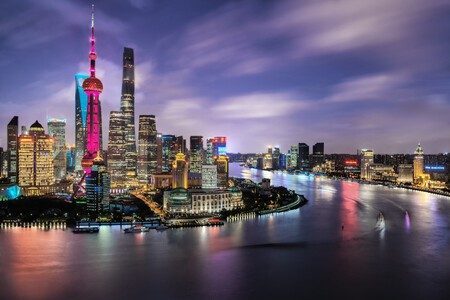

The LUXEON C Color Line is an optically advanced portfolio of Color and White LEDs. Designed for flawless color mixing, LUXEON C Color Line has one focal length for all colors, which provides consistent radiation patterns from secondary optics and maximizes optical efficiency. With low dome design, it keeps effective source size small while still improving light extraction. Designed for smooth color mixing and maximum punch, LUXEON C Color Line is the optimal LED solution for architecture, entertainment and emergency vehicle lighting applications.

  • One focal length allows flawless color mixing, maximum optical efficiency and removes halos
  • Low dome design eliminates trade-offs between flux and source size
  • Hot tested—removes guesswork for designers
  • Industry’s lowest thermal resistance means greater light output and lower heatsink costs
  • Small symmetrical 2x2mm² package enables dense packing and limits the impact of rotation during reflow

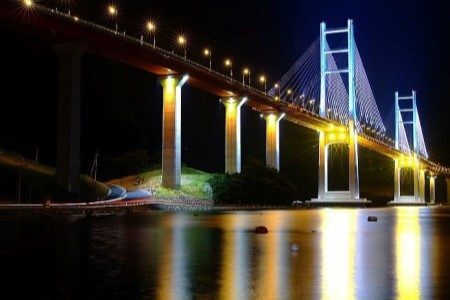

LUXEON CZ Color Line

Lumileds LUXEON CZ Color Line delivers up to 48% higher “punch” than competitive products. Offered in 21 color options, LUXEON CZ makes fixture designs with narrow beam angles possible, as it’s easier for optics to pick up all the light because the LEDs cast minimal light below the horizon. LUXEON CZ is also designed to eliminate crosstalk, ensuring a true color point when LEDs are packed closely together. Created with the same robust building blocks as the award-winning LUXEON C Color Line, all LUXEON CZ LEDs feature identical focal length in an undomed design, enabling superior color mixing in all applications.

  • Small and symmetrical 2x2mm² package
  • Industry leading Hot/Cold Factors and the lowest thermal resistance
  • Maximized punch (cd/lm)

LUXEON FlipChip Royal Blue

Customers have complete design flexibility to access Lumileds industry leading performance at the die level and customize the phosphor and packaging to best suit their lighting applications with the 0.5mm2 LUXEON FlipChip. LUXEON FlipChip is a Chip Scale Package (CSP) LED that can be attached by reflow without additional packaging. Traditional wire bonding limits the packing and power density of LEDs. LUXEON FlipChip LEDs can be packaged closer and can be driven at a higher current density, therefore requiring fewer emitters to achieve a higher lumen output at higher lumen densities.

  • Micro sized CSP: 0.5mm2 package for design flexibilty and packing density
  • No wire bonds allows for direct attach and reflow
  • 5-sided emitter enables wide viewing angles
  • 445–460nm wavelength range for dispense and remote phosphor applications
  • Low thermal resistance of 2.9V for leading system level lm/$

LUXEON Rebel Color Line

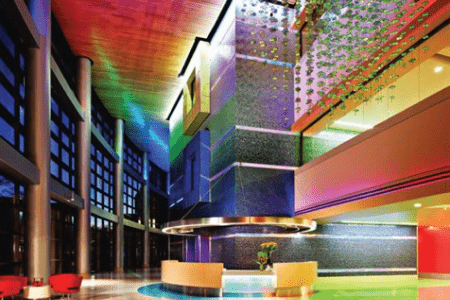

The LUXEON Rebel Color Line has leading light output, color stability, flux density and clear saturated colors. These color LEDs are ideal for a wide variety of lighting, signaling, signage and entertainment applications. Every LUXEON Rebel Color emitter has built-in quality, reliability, lumen maintenance and the ease of manufacturing needed to create a superior, high quality light. LUXEON Rebel Color emitters give designers an endless palette of colors to work with, adding interest, dimension and liveliness to all lighting projects.

  • Full color palette for a wider spectrum range
  • Highest efficacy available for colors, allowing for lower power consumption
  • High flux and leading hot and cold performance for saturated colors
  • Fully developed ecosystem for LUXEON Rebel platforms

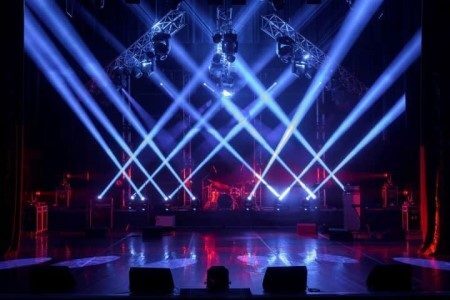

LUXEON Rubix

LUXEON Rubix is a breakthrough design for the LED industry. Designed with high driving current capability and small form factor, it provides maximum flux in a minimal amount of space making it ideal for entertainment, architecture and emergency vehicle lighting application. This LED provides double the flux at a much higher driving current compared to previous generations. It is the smallest form factor in the Lumileds Colors portfolio enabling it to be packaged even closer to achieve higher lumen output at higher lumen densities. The individual emitters and color gamut allow customers to have much better flexibility in their product design.

  • Tiny footprint 1414 package
  • High Drive current up to 3 Amps DC
  • Maximized punch (cd/lm)

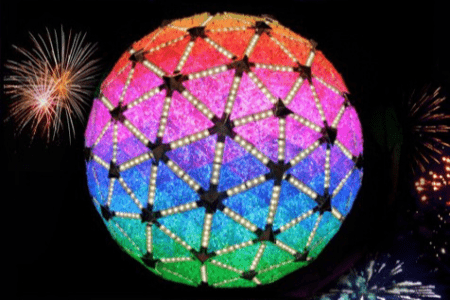

LUXEON Z Color Line

The LUXEON Z Color Line comprises a broad portfolio of LEDs that enable never before seen lumen density, flexibility and freedom of design. Available in the full spectrum of colors from 440nm to 670nm, including Lime, enabling highly efficient color mixing with a convenient above-blackbody color point. The LUXEON Z Color Line is ideal for entertainment and stage lighting, indoor and outdoor architectural lighting, emergency vehicle lighting, remote phosphor applications and a wide spectrum of specialty lighting applications.

  • Broad selection spanning 440–670nm, including a unique Lime color
  • 1.3mm x 1.7mm footprint enables unique arrangements in space constrained applications
  • 4-up RGBW pixel in 9.5mm² — four colors in less area than one regular high power color emitter
  • Undomed design allows better optical management
  • Enables customizable light sources: linear, rectangular, circular
