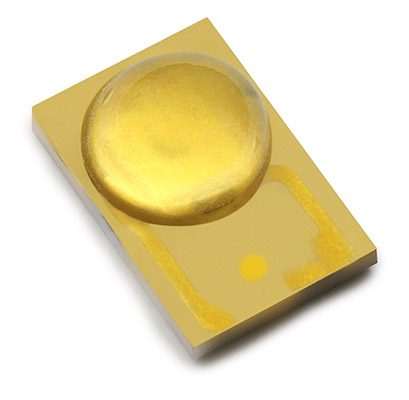

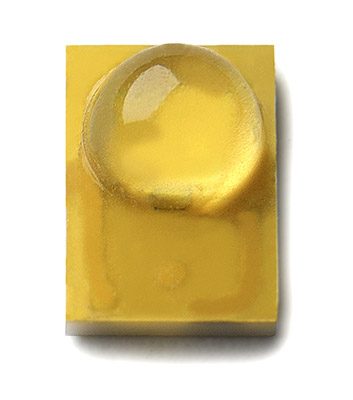

LUXEON Rebel PLUS

LUXEON Rebel PLUS is designed with the highest possible efficacy and light output from an industry standard 4530 package with a 2.5mm2 dome. With hot testing and color binning, every LUXEON Rebel PLUS is tested and specified at real world operating conditions — 85°C. Our exceptional color control enables design simplicity for luminaire manufacturers and ensures that they can be confident in color consistency from LED to LED. The superior quality of light, light output, and real world efficacy enable leading performance and efficient solution development in a wide variety of outdoor and industrial lighting segments.

Features & Benefits

  • 3 and 5-step MacAdam ellipse: Freedom from Binning for superior quality of light
  • Ability to deliver high lm/$ for indoor applications
  • Low typical Vf ~2.8V
  • Small optical source size
  • Full range of CCTs in 80CRI minimum
  • LM-80 test report available
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance at 350mA, Tj=85°C.

Nominal
CCT
Minimum
CRI
Luminous Flux (lm) Typical
Luminous
Efficacy (lm/W)
Part Number
Minimum Typical
2700K 80 80 85 88 LX18-P127-Y
3000K 80 85 95 98 LX18-P130-Y
3500K 80 90 98 101 LX18-P135-Y
4000K 80 90 103 107 LX18-P140-Y
5000K 80 95 106 110 LX18-P150-Y
