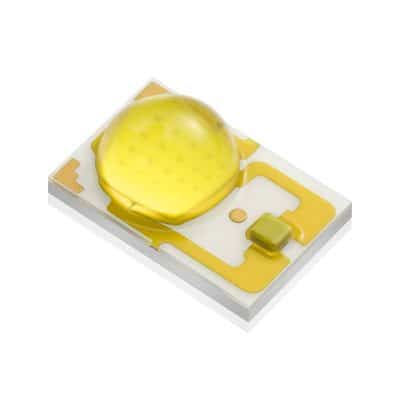

LUXEON Rebel

LUXEON Rebel LEDs deliver optimized combinations of light quality and light output needed for a variety of lighting applications. In addition to delivering specified correlated color temperature and color rendering combinations, these emitters deliver the efficacy, lifetime and reliability that all LUXEON LEDs are renowned for.

Features & Benefits

  • Specified CCT & CRI combinations
  • ANSI-compliant Quarter binning
  • Exceeds ENERGY STAR® lumen maintenance requirements
  • High efficacy for sustainable design
  • More light delivered at operating temperature
  • Recognized under the Component Recognition Program of Underwriters Laboratories Inc. UL listing E327436
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree
Color Part Number Performance at Test Current Typical Performance at Indicated Current
Minimum Luminous Flux (lm) Test Current (mA) Typical Luminous Flux (lm) Drive Current (mA)
Cool White LXML-PWC1-0090 90 350
160
700
LXML-PWC1-0100 100 350 180
700
LXML-PWC1-0110 110 350 200
700
LXML-PWC1-0120 120 350 220
700
Neutral-White

LXML-PWN1-0090 90 350 160 700
LXML-PWN1-0100 100 350 180 700
LXML-PWN1-0110 110 350 200 700
LXML-PWN1-0120
120
350
220
700
