LUXEON MZ

The perfect balance of brightness, uniformity and precision

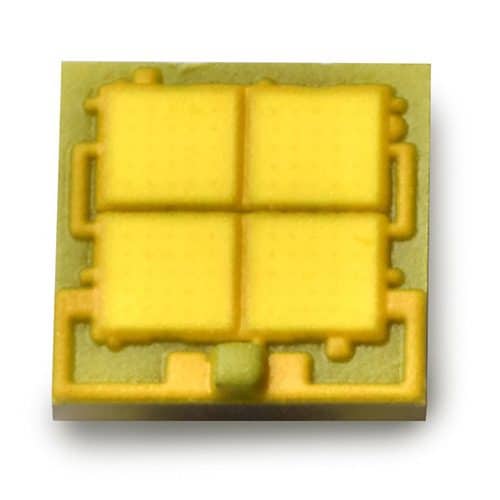

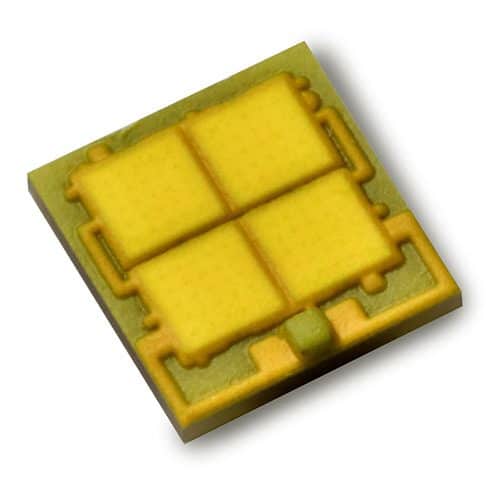

LUXEON MZ is an illumination grade multi-die LED designed to enable outdoor and industrial applications with all of the features of LUXEON M including the identical solder footprint, but allowing for tighter beam control and higher punch due to a smaller apparent source size. With Freedom from Binning and leading performance, LUXEON MZ falls within a single 3- or 5-step MacAdam ellipse centered in ANSI to ensure color consistency from LED to LED, delivering high efficacy and high flux density from a uniform source with tight correlated color temperature control. The superior quality of light, volume of lumens, and real world efficacy enable leading performance and efficient solution development in a wide variety of lighting segments.

Features & Benefits

    Undomed package for improved punch and exceptional luminance

  • Common footprint as LUXEON M for compatibility with existing designs
  • Industry leading 11.2V package delivers exceptional efficacy
  • Leading thermal resistance enables flexible system design to optimize for lm/$ and lm/W
  • Exceeds ENERGY STAR® lumen maintenance requirements
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance for LUXEON MZ White at test current, Tj=85°C.

Voltage Nominal
CCT
Minimum
CRI
Luminous Flux
(lm)
Test Current
(mA)
Part Number
Minimum Typical
12V 3000K 70 805 840 700 LMZ7-SW30
4000K 70 870 940 700 LMZ7-SW40
5000K 70 870 950 700 LMZ7-SW50
5700k 70 900 980 700 LMZ7-SW57
6500K 70 900 980 700 LMZ7-SW65
2700K 80 710 760 700 LMZ8-SW27
3000K 80 730 781 700 LMZ8-SW30
3500K 80 730 800 700 LMZ8-SW35
4000K 80 840 880 700 LMZ8-SW40
5000K 80 840 890 700 LMZ8-SW50
2700K 90 560 600 700 LMZ9-SW27
3000K 90 600 640 700 LMZ9-SW30
5700K 90 700 770 700 LMZ9-SW57
6V 3000K 70 805 840 1400 LMZ7-RW30
4000K 70 870 940 1400 LMZ7-RW40
5000K 70 870 950 1400 LMZ7-RW50
5700K 70 900 980 1400 LMZ7-RW57
6500K 70 900 980 1400 LMZ7-RW65
2700K 80 710 760 1400 LMZ8-RW27
3000K 80 730 781 1400 LMZ8-RW30
3500K 80 730 800 1400 LMZ8-RW35
4000K 80 840 880 1400 LMZ8-RW40
5000K 80 840 890 1400 LMZ8-RW50
2700K 90 560 600 1400 LMZ9-RW27
3000K 90 600 640 1400 LMZ9-RW30
5700K 90 700 770 1400 LMZ9-RW57
3V 3000K 70 805 840 2800 LMZ7-QW30
4000K 70 870 940 2800 LMZ7-QW40
5000K 70 870 950 2800 LMZ7-QW50
5700K 70 900 980 2800 LMZ7-QW57
6500K 70 900 980 2800 LMZ7-QW65
2700K 80 710 760 2800 LMZ8-QW27
3000K 80 730 781 2800 LMZ8-QW30
3500K 80 730 800 2800 LMZ8-QW35
4000K 80 840 880 2800 LMZ8-QW40
5000K 80 840 890 2800 LMZ8-QW50
2700K 90 560 600 2800 LMZ9-QW27
3000K 90 600 640 2800 LMZ9-QW30
5700K 90 700 770 2800 LMZ9-QW57

Product performance for LUXEON MZ Royal Blue at test current, Tj=85°C.

Voltage Dominant Wavelength (nm) Radiometric Power (mW) Test Current
(mA)
Part Number
Minimum Maximum Minimum Typical
12V 445 460 3500 3600 700 LMZ0-SR00
6V 445 460 3500 3600 1400 LMZ0-RR00
3V 445 460 3500 3600 2800 LMZ0-QR00
