LUXEON Z Color Line

High power color LEDs in a micro footprint package for ultimate design flexibility

LUXEON Z Color Line

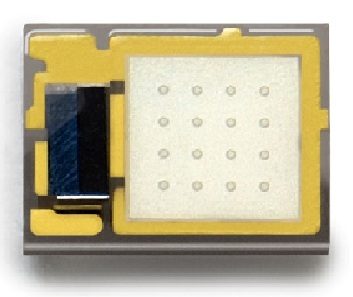

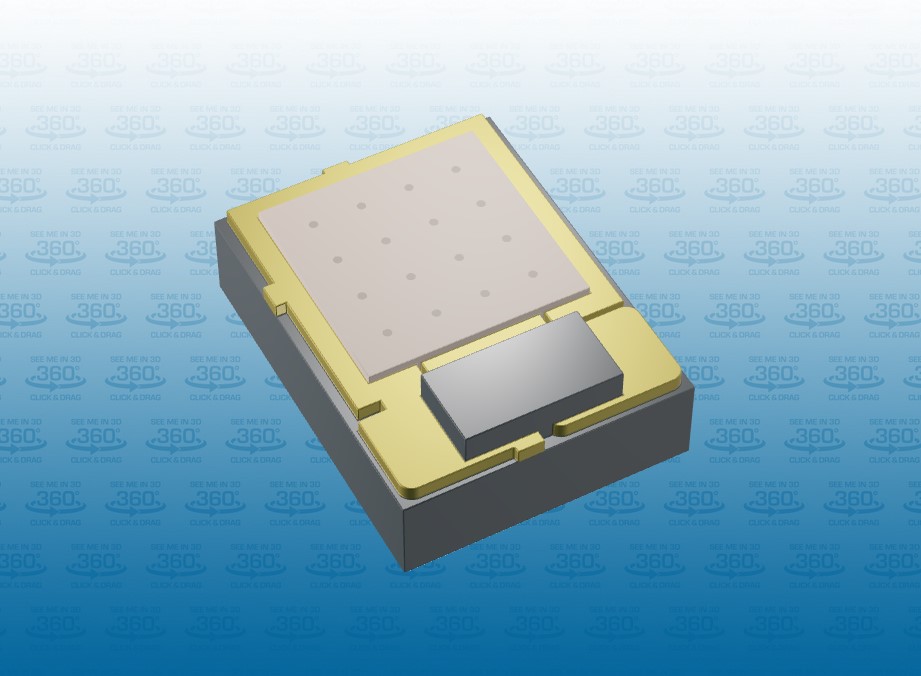

The LUXEON Z Color Line comprises a broad portfolio of LEDs that enable never before seen lumen density, flexibility and freedom of design. Available in the full spectrum of colors from 440nm to 670nm, including Lime, enabling highly efficient color mixing with a convenient above-blackbody color point. The LUXEON Z Color Line is ideal for entertainment and stage lighting, indoor and outdoor architectural lighting, emergency vehicle lighting, remote phosphor applications and a wide spectrum of specialty lighting applications.

Product Selection Guide

LUXEON Z Colors product performance tested at 500mA,Tj=25°C.

ColorDominant or Peak
Wavelength (nm)
Luminous Flux (lm) or
Radiometric Power (mW)
Part Number
MinimumMaximumMinimumTypical
Deep RedDeep Red 650 670 250 275 LXZ1-PA01
650 670 300 325 LXZ1-PA01
650 670 350 375 LXZ1-PA01
RedRed 620 645 40 44 LXZ1-PD01
620 645 48 52 LXZ1-PD01
620 645 56 60 LXZ1-PD01
Red OrangeRed-Orange 610 620 56 60 LXZ1-PH01
610 620 64 68 LXZ1-PH01
610 620 72 76 LXZ1-PH01
AmberAmber 585 590 48 52 LXZ1-PL01
585 595 56 60 LXZ1-PL01
585 595 64 68 LXZ1-PL01
GreenGreen 520 540 80 84 LXZ1-PM01
520 540 88 92 LXZ1-PM01
520 540 96 100 LXZ1-PM01
520 540 104 108 LXZ1-PM01
CyanCyan 490 510 48 52 LXZ1-PE01
490 510 56 60 LXZ1-PE01
490 510 64 68 LXZ1-PE01
BlueBlue 460 480 24 28 LXZ1-PB01
460 480 32 36 LXZ1-PB01
460 480 40 44 LXZ1-PB01
Royal BlueRoyal Blue 440 460 500 525 LXZ1-PR01
440 460 550 575 LXZ1-PR01
440 460 600 625 LXZ1-PR01

LUXEON Z Colors product performance tested at 500mA,Tj=85°C.

ColorDominant or Peak
Wavelength (nm)
Luminous Flux (lm) or
Radiometric Power (mW)
Part Number
MinimumMaximumMinimumTypical
RedRed 624 634 24 28 LXZ1-PD02
624 634 32 36 LXZ1-PD02
624 634 40 44 LXZ1-PD02
624 634 48 52 LXZ1-PD02
Red OrangeRed-Orange 614 624 40 44 LXZ1-PH02
614 624 48 52 LXZ1-PH02
614 624 56 60 LXZ1-PH02
AmberAmber 594 604 16 20 LXZ1-PL03
594 604 24 28 LXZ1-PL03
594 604 32 36 LXZ1-PL03
PC AmberPC Amber 588 592 72 76 LXZ1-PL02
588 592 80 84 LXZ1-PL02
588 592 88 92 LXZ1-PL02
588 592 96 100 LXZ1-PL02
588 592 104 110 LXZ1-PL02
LimeLime 566 569 144 149 LXZ1-PX01
566 569 154 159 LXZ1-PX01
566 569 164 169 LXZ1-PX01
566 569 174 179 LXZ1-PX01
566 569 184 189 LXZ1-PX01
566 569 194 199 LXZ1-PX01

Documentation

Design Resources

  • Electrical

    Electrical

    LUXEON Z
    LL ID File Format Title Products Colors/Packages Modified Size (MB)
    DRE1846 Altium Designer LUXEON Z 1-Up Altium LXZ1-4070
    LXZ1-PA01-0250
    LXZ1-PA01-0300
    LXZ1-PA01-0350
    More Products
    Amber
    Blue
    Cyan
    Green
    More Colors
    03/18/2014 1.04
    DRE1847 Altium Designer LUXEON Z 4-Up Altium LXZ1-4070
    LXZ1-PA01-0250
    LXZ1-PA01-0300
    LXZ1-PA01-0350
    More Products
    Amber
    Blue
    Cyan
    Green
    More Colors
    03/18/2014 1.04
    DRE1414 Gerber LUXEON Z Individually Addressable 4-Up MCPCB Star Board LXZ1-4070
    LXZ1-PA01-0250
    LXZ1-PA01-0300
    LXZ1-PA01-0350
    More Products
    03/18/2014 0.56
  • Mechanical

    Mechanical

    LUXEON Z
    LL ID File Format Title Products Colors/Packages Modified Size (MB)
    DRM1277 STEP LUXEON Z AllnGaP LXZ1-PD01-0040
    LXZ1-PD01-0048
    LXZ1-PD01-0056
    LXZ1-PH01-0056
    More Products
    11/18/2013 0.01
    DRM1276 STEP LUXEON Z InGaN Direct Color LXZ1-PB01-0024
    LXZ1-PB01-0032
    LXZ1-PB01-0040
    LXZ1-PB01-0048
    More Products
    11/18/2013 0.02
    DRM1760 STEP LUXEON Z Lime STEP LXZ1-PX01 02/19/2014 0.01
    DRM1275 STEP LUXEON Z White LXZ1-4070 11/18/2013 0.01

Features & Benefits

  • Broad selection spanning 440–670nm, including a unique Lime color
  • 2.2mm² footprint enables unique arrangements in space constrained applications
  • 4-up RGBW pixel in 9.5mm² — four colors in less area than one regular high power color emitter
  • Undomed design allows better optical management
  • Enables customizable light sources: linear, rectangular, circular
