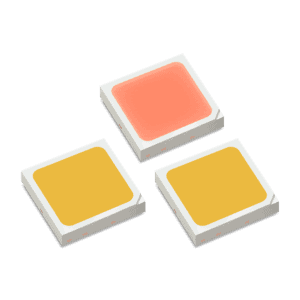

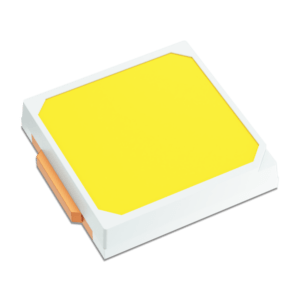

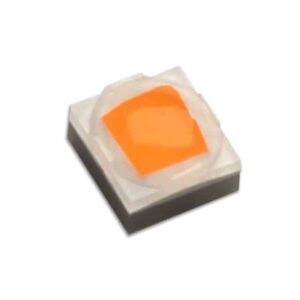

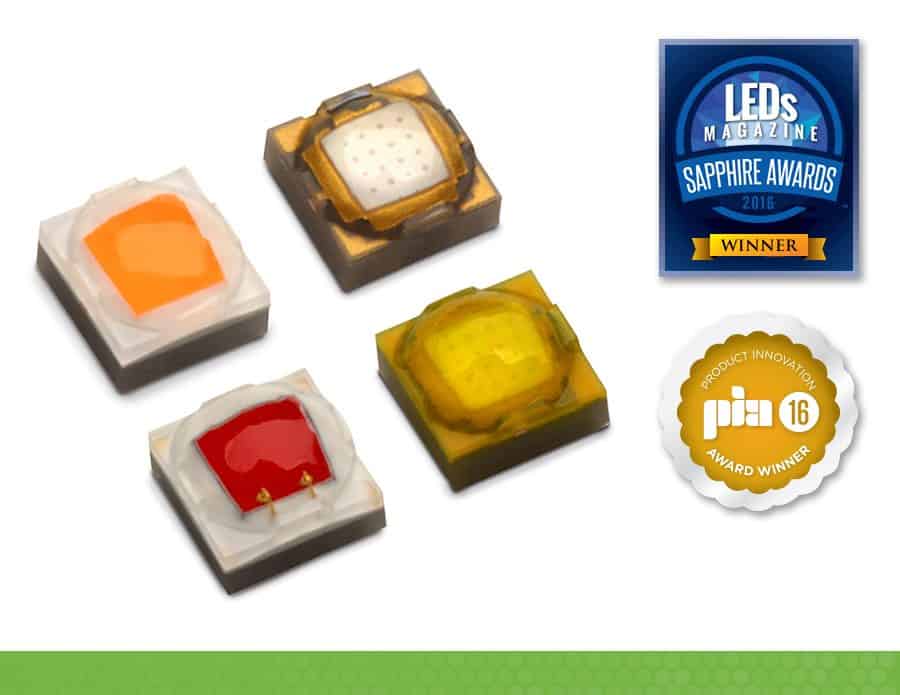

LUXEON C Color Line

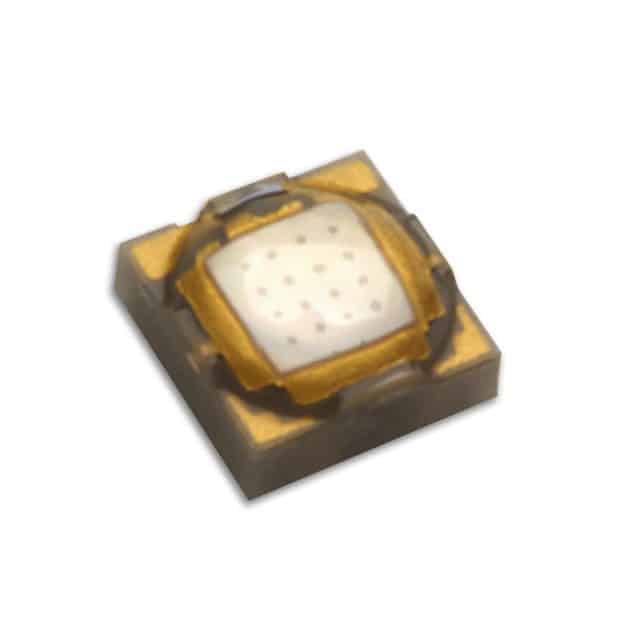

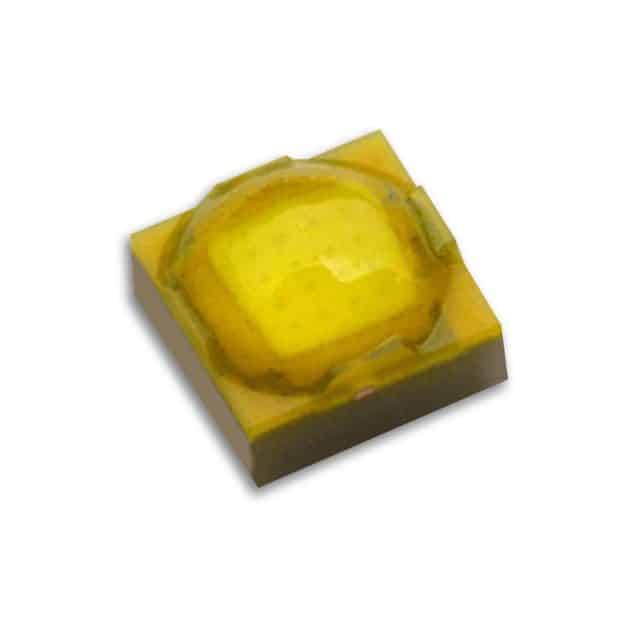

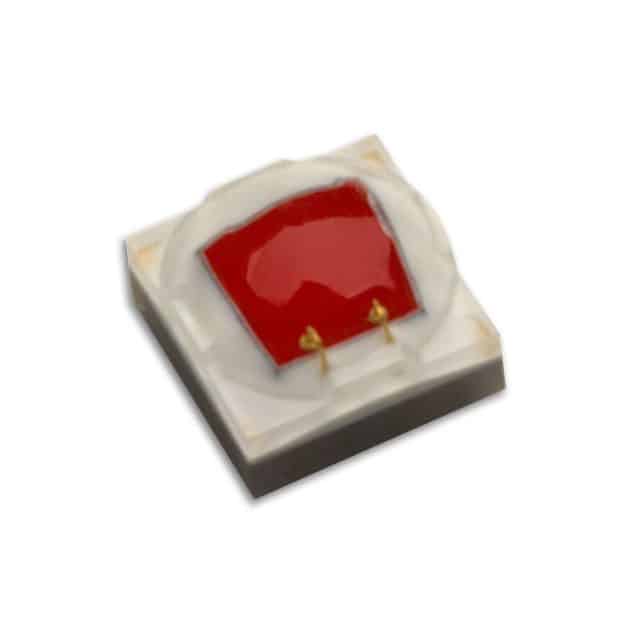

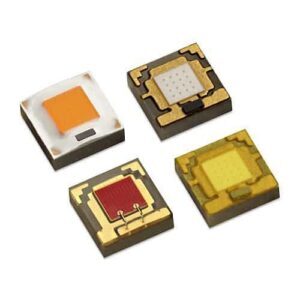

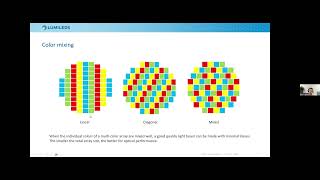

The LUXEON C Color Line is an optically advanced portfolio of Color and White LEDs. Designed for flawless color mixing, LUXEON C Color Line has one focal length for all colors, which provides consistent radiation patterns from secondary optics and maximizes optical efficiency. With low dome design, it keeps effective source size small while still improving light extraction. Designed for smooth color mixing and maximum punch, LUXEON C Color Line is the optimal LED solution for architecture, entertainment and emergency vehicle lighting applications.

Features & Benefits

  • One focal length allows flawless color mixing, maximum optical efficiency and removes halos
  • Low dome design eliminates trade-offs between flux and source size
  • Hot tested—removes guesswork for designers
  • Industry’s lowest thermal resistance means greater light output and lower heatsink costs

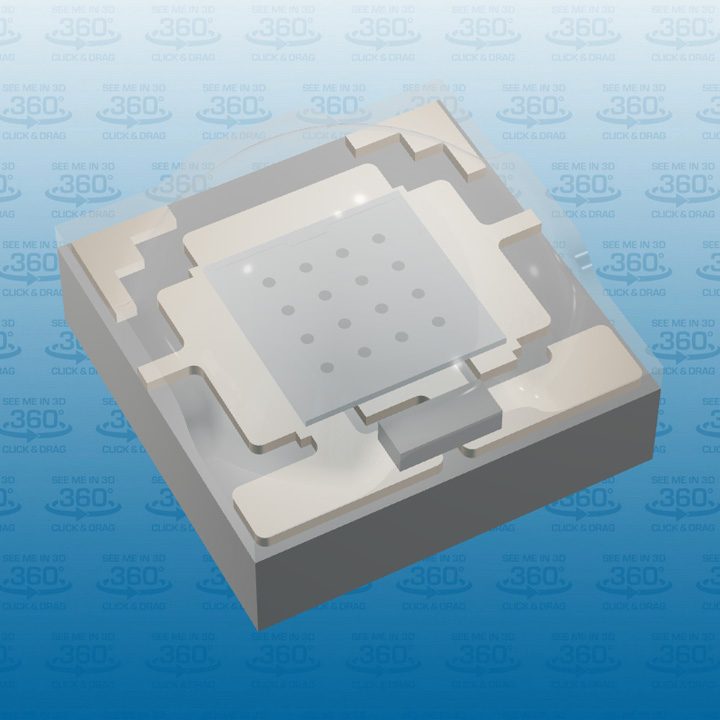

  • Small symmetrical 2x2mm² package enables dense packing and limits the impact of rotation during reflow
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

LUXEON C Colors product performance at 350mA,Tj=85°C.

Note: Royal Blue measured in peak wavelength and radiometric power.

Color Dominant or Peak
Wavelength (nm)
Luminous Flux (lm) or
Radiometric Power (mW)
Part Number
Minimum Maximum Minimum Typical
RedFar Red 720 750 190 340 L1C1-FRD1000000000
RedDeep Red 655 675 280 380 L1C1-DRD1000000000
RedRed 624 634 35 49 L1C1-RED1000000000
Red OrangeRed-Orange 614 624 45 60 L1C1-RNG1000000000
AmberAmber 585 600 20 30 L1C1-AMB1000000000
AmberPC Amber 80 110 L1C1-PCA1000000000
GreenMint 140 152 L1C1-MNT1000000000
GreenLime 125 149 L1C1-LME1000000000
GreenGreen 520 540 90 141 L1C1-GRN1000000000
CyanCyan 490 510 65 100 L1C1-CYN1000000000
BlueBlue 465 485 25 43 L1C1-BLU1000000000
BluePC Blue 40 52 L1C1-PCB1000000000
Royal BlueRoyal Blue 440 460 480 552 L1C1-RYL1000000000
VioletViolet 420 430 480 595 L1C1-VLT1000000000

LUXEON C White product performance at 350mA,Tj=85°C.

Color NOMINAL CCT Minimum CRI Luminous Flux (lm) Typical Luminous
Efficacy (lm/W)
Part Number
Minimum Typical
White 4000K 70 100 116 121 L1C1-4070000000000
5000K 70 100 117 122 L1C1-5070000000000
5700K 70 100 118 124 L1C1-5770000000000
6500K 70 100 119 124 L1C1-6570000000000
2200K 80 70 85 88 L1C1-2280000000000
2700K 80 90 94 98 L1C1-2780000000000
3000K 80 90 102 106 L1C1-3080000000000
3500K 80 90 108 112 L1C1-3580000000000
4000K 80 100 113 117 L1C1-4080000000000
2700K 90 70 82 85 L1C1-2790000000000
3000K 90 70 86 89 L1C1-3090000000000
4000K 90 75 95 95 L1C1-4090000000000
5700K 90 80 93 94 L1C1-5790000000000
