LUXEON 3535L Color Line

Color LEDs that deliver the perfect amount of color you need. No More. No less.

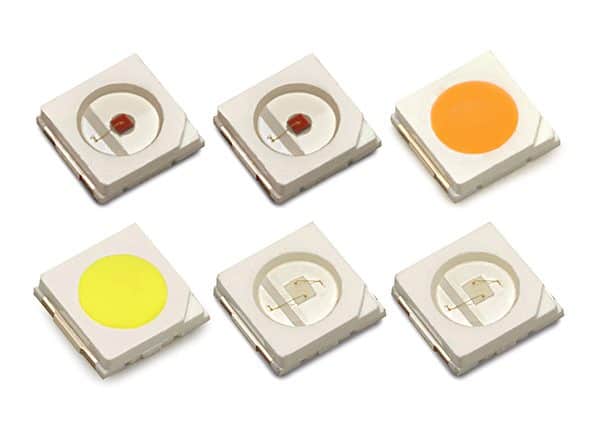

LUXEON 3535L Color Line

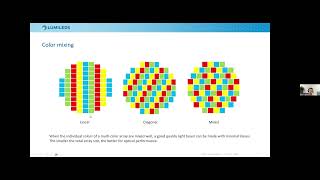

The LUXEON 3535L Color Line enables a new era of color lighting. This robust color line provides high performance and is targeted at cost effective designs. Complemented by a broad range of white offerings, the LUXEON 3535L Color Line enables RGBW applications. This product line extends the comprehensive LUXEON Color Family.

Product performance for LUXEON 3535L Color Line at 100mA,Tj=25°C.
Note: Royal Blue measured in peak wavelength and radiometric power.

ColorDominant or Peak
Wavelength (nm)
Luminous Flux (lm) or
Radiometric Power (mW)
Part Number
MinimumMaximumMinimumTypical

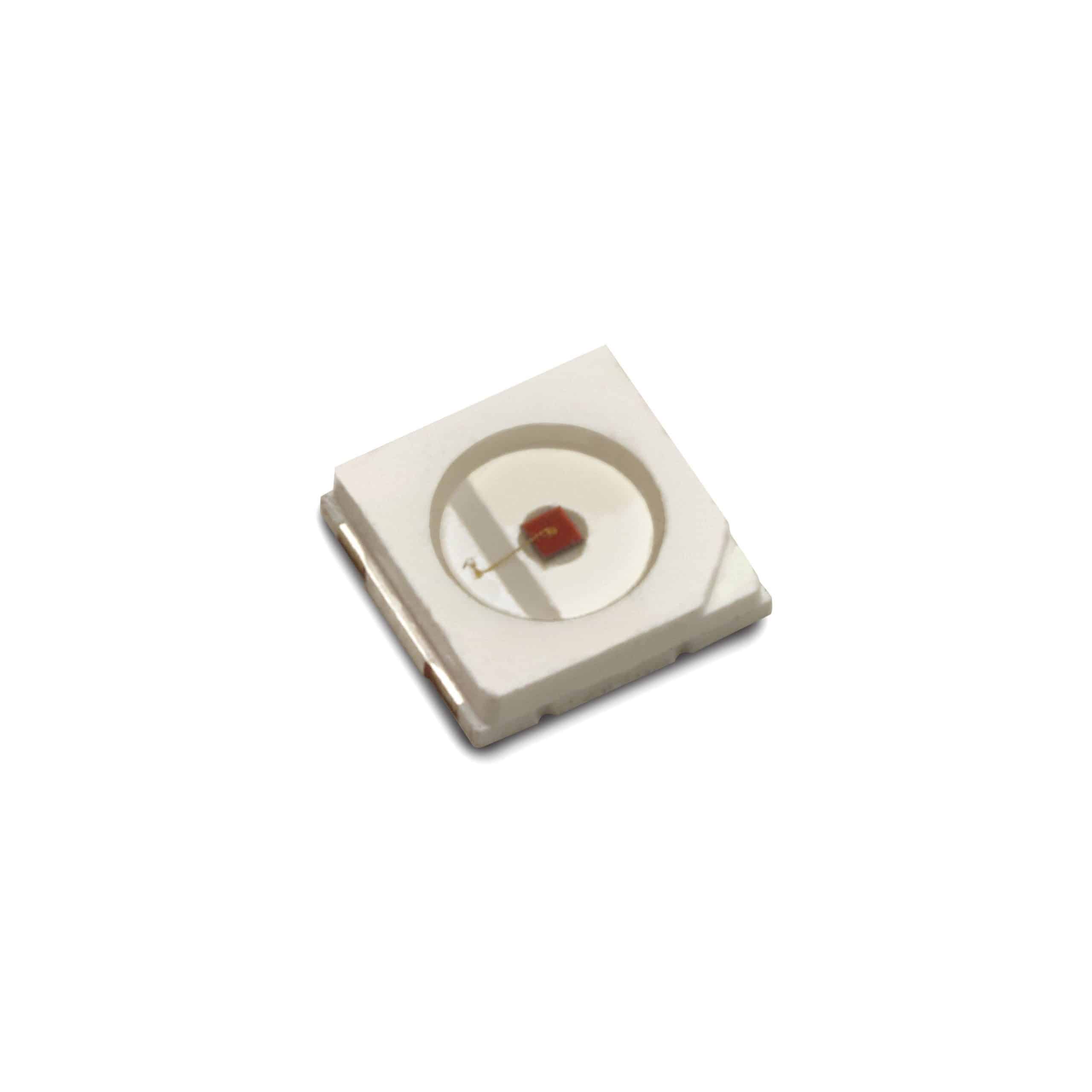

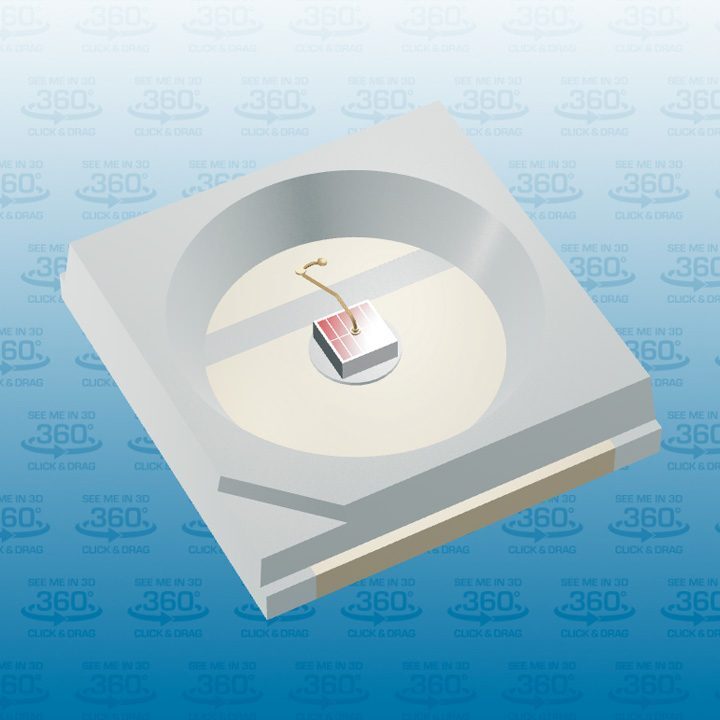

RedRed 620 630 10.0 13.5 L135-R625003500000
Red OrangeRed-Orange 610 620 13.0 15.5 L135-O615003500000

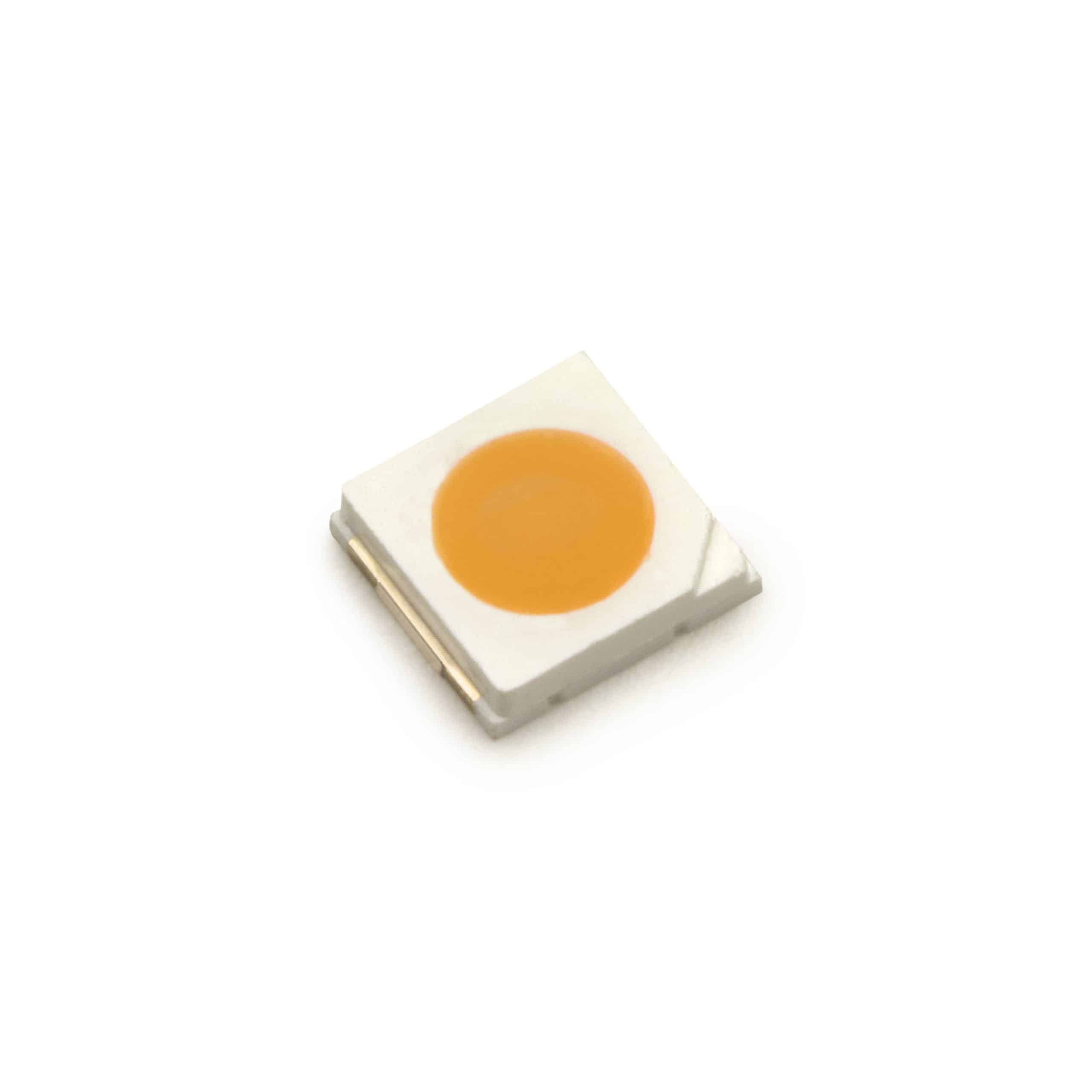

AmberPC Amber - - 24.0 35.0 L135-A589003500000

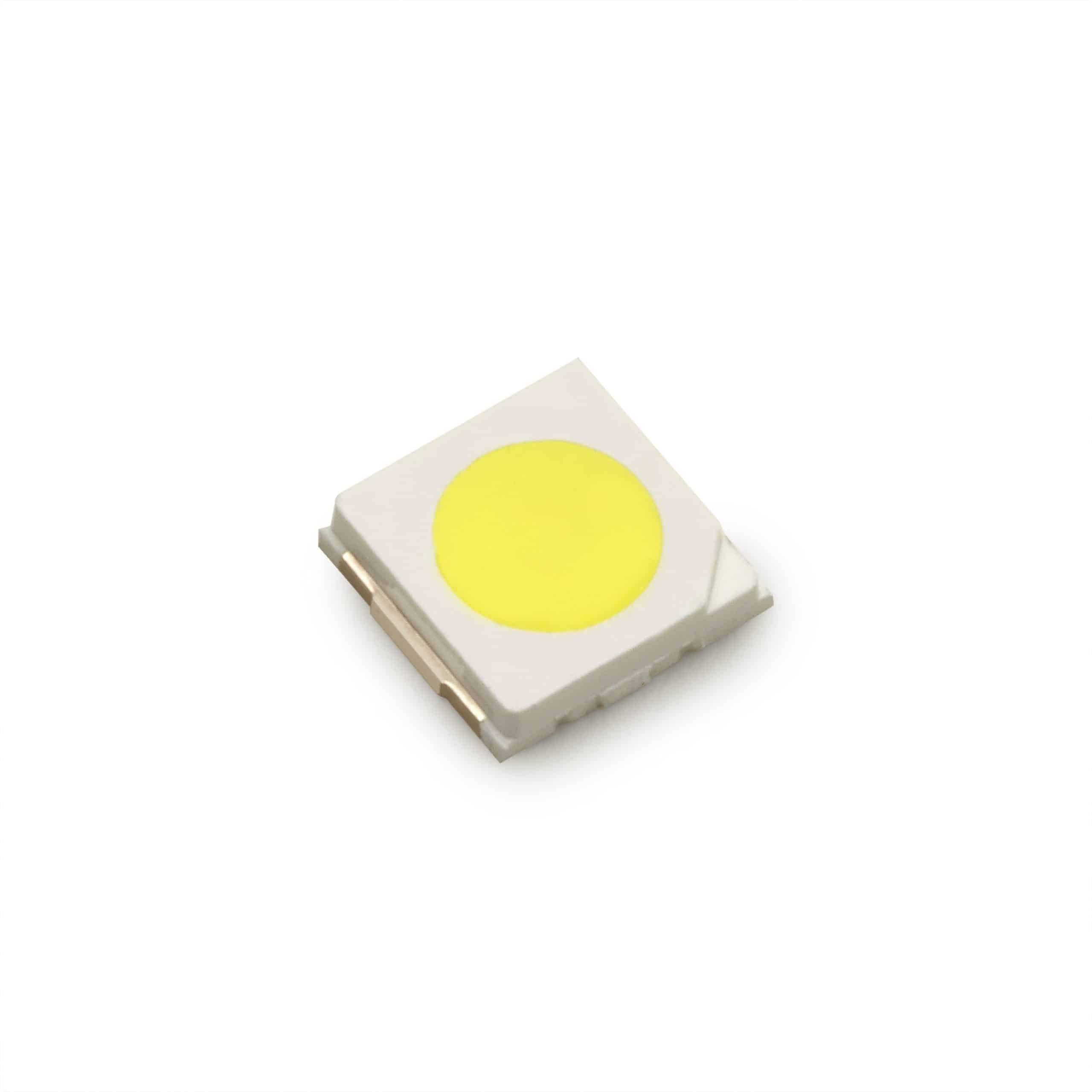

GreenLime - - 44.0 56.0 L135-L567003500000
GreenGreen 520 540 21.0 23.0 L135-G525003500000
BlueBlue 469 480 8.2 11.0 L135-B475003500000
Royal BlueRoyal Blue 440 455 130 155 L135-U450003500000

Documentation

Design Resources

  • Electrical

    Electrical

    LUXEON 3535L Color
    LL ID File Format Title Products Colors/Packages Modified Size (MB)
    DRE1473 Altium Designer LUXEON 3535L and LUXEON 3535L Color Altium Footprint Layout L135-A589003500000
    L135-B475003500000
    L135-G525003500000
    L135-L567003500000
    More Products
    06/27/2016 1.02
    DRE1476 Gerber LUXEON 3535L and LUXEON 3535L Color FR4 Star Gerber L135-A589003500000
    L135-B475003500000
    L135-G525003500000
    L135-L567003500000
    More Products
    06/29/2016 0.01
  • Mechanical

    Mechanical

    LUXEON 3535L Color
    LL ID File Format Title Products Colors/Packages Modified Size (MB)
    DRM1474 STEP LUXEON 3535L and LUXEON 3535L Color 3D STEP L135-A589003500000
    L135-B475003500000
    L135-G525003500000
    L135-L567003500000
    More Products
    06/27/2016 0.02
    DRM1477 DWG LUXEON 3535L and LUXEON 3535L Color Pad Layout L135-A589003500000
    L135-B475003500000
    L135-G525003500000
    L135-L567003500000
    More Products
    06/29/2016 0.07

Features & Benefits

  • Industry standard package enables drop-in replacement for existing 3535 packages
  • Single die and single source architecture for optical control
  • Common focal length with LUXEON Rebel and LUXEON Z Color LEDs
  • Full color palette for a wider spectrum range
