What is LUXEON Versat 2020 Line?

LUXEON Versat 2020 is the industry-leading compact solution for modern automotive signaling applications. This family of products provides design flexibility, automotive reliability and ease of integration / manufacturing to facilitate simplified system integration for high volume automotive designs.

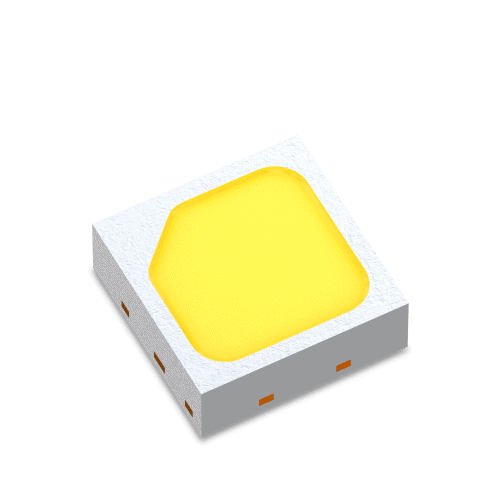

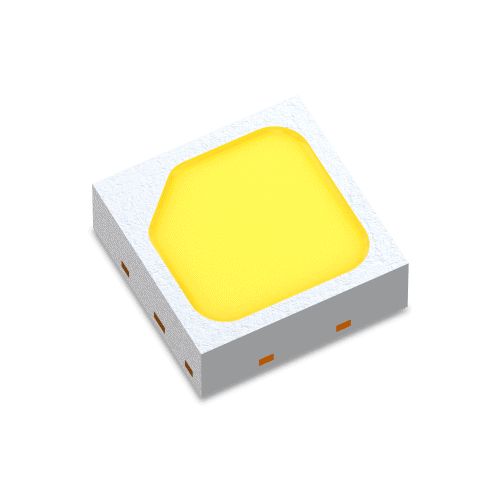

The LUXEON Versat 2020 CW 150 LED is designed to meet the needs of exterior automotive front lighting applications. All LUXEON Versat 2020 LEDs are AEC-Q102 qualified and cold binned at 25 °C.

Benefits of LUXEON Versat 2020 Line:

  • Miniaturized footprint enables dense lighting clusters or slim forms with narrow tolerances
  • Optimal light extraction means increased encircled flux efficiency versus traditional mid-power packages:
    • Front – Maximized functionality in drive current and operating temperature to empower innovative design ambitions
    • Rear – Lower Rth and a higher Tjunction capability translates into greater light output and lower heatsink costs, with a proven robustness to extreme sulphur conditions

Key Features:

  • Industry standard footprint for simple integration
  • Optimized package drives efficient light extraction
  • Low Z profile simplifies optical design and minimizes design space
  • Industry leading efficacy

Important Notes:

  • Available in cool white, PC amber, direct amber, red-orange, red, long red and super red

Products

COLOR
[DOMINANT WAVELENGTH]
PRODUCT TEST CURRENT (mA) MAX DC CURRENT (mA) MINIMUM FLUX (lm) PART NUMBER
Cool White Cool White LUXEON Versat 2020 CW 150 150 250 48.0 A1VB-5850A

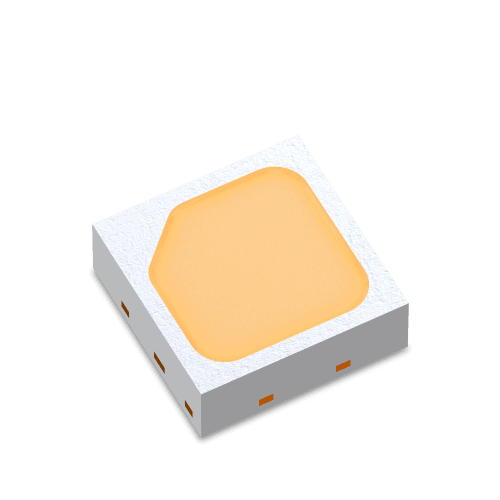

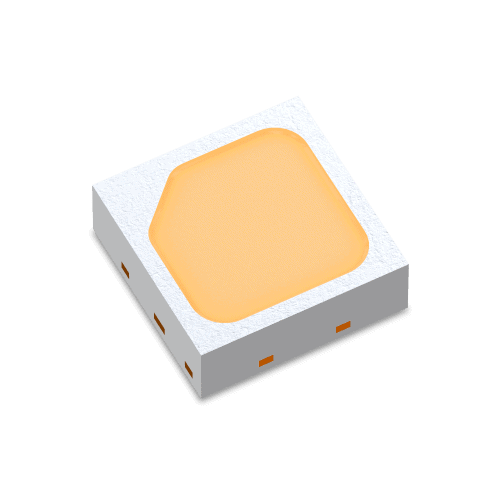

PC Amber PC Amber  [590 nm] LUXEON Versat 2020 PCA 150 150 250 30.0 A1VB-P591A

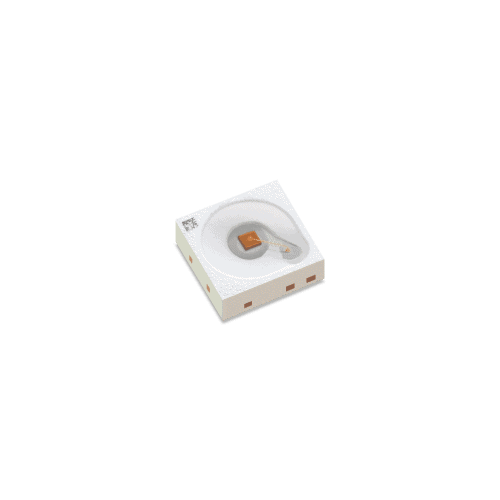

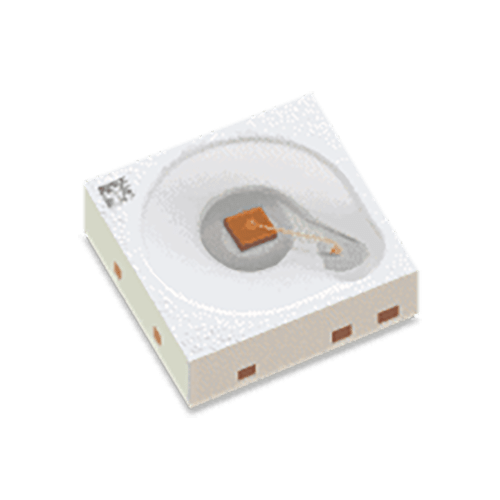

PC Amber Amber  [586 nm] LUXEON Versat 2020 50 AM 50 70 6.1 A1VB-A584B
PC AMBER Amber  [590 nm] LUXEON Versat 2020 50 AM 50 70 8.0 A1VB-A588B

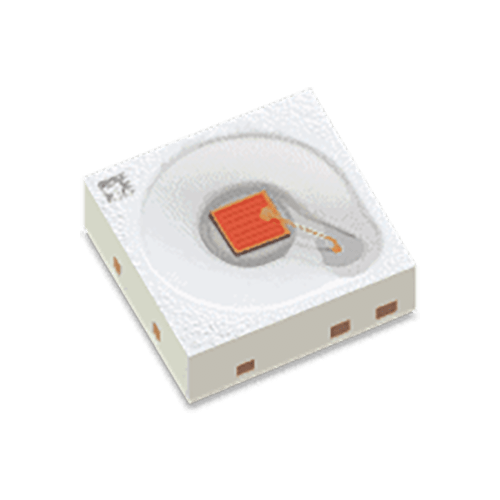

PC Amber Amber  [586 nm] LUXEON Versat 2020 140 AM 140 200 15.0 A1VB-A584C
PC Amber Amber  [590 nm] LUXEON Versat 2020 140 AM 140 200 23.0 A1VB-A588C

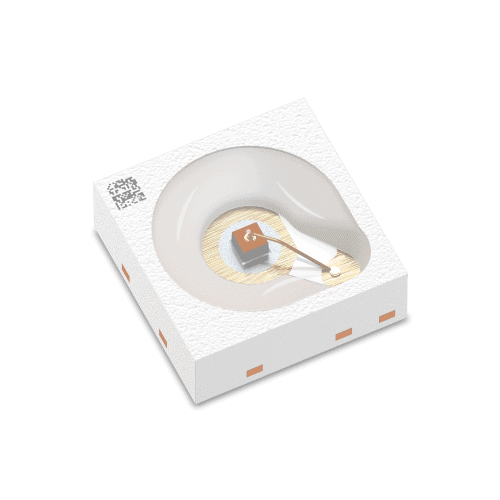

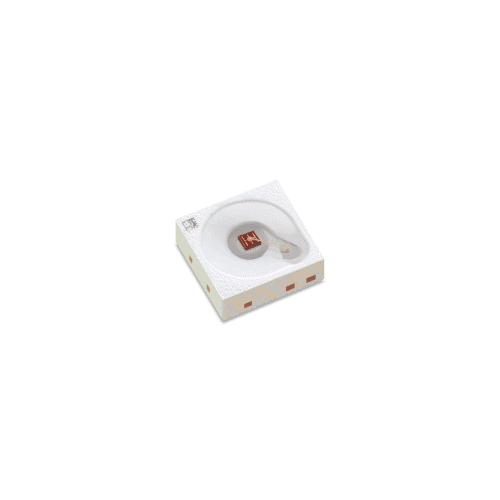

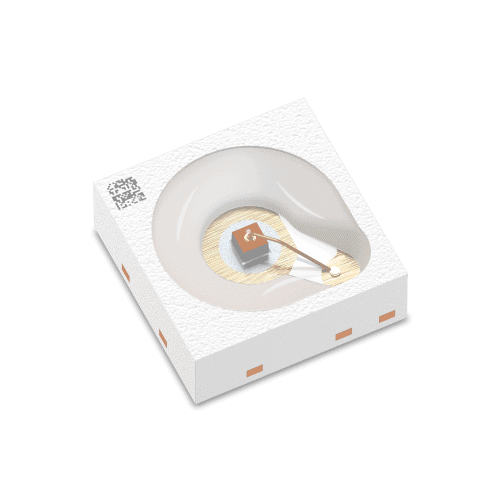

Red Orange Red-Orange [615 nm] LUXEON Versat 2020 20 20 50 3.3 A1VB-O612A

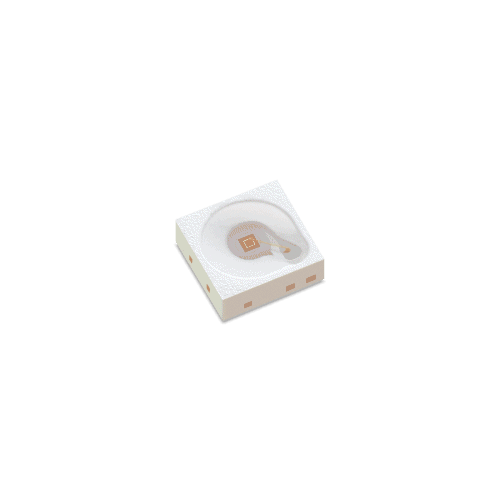

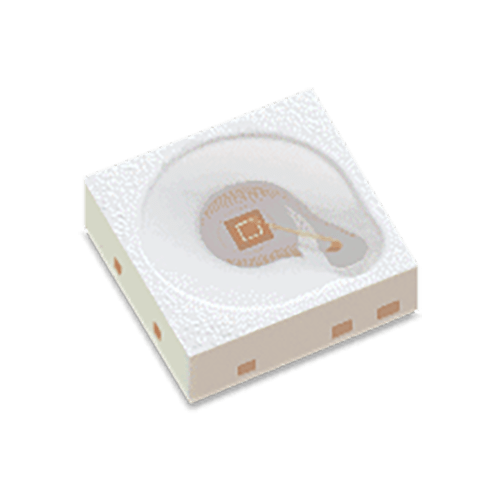

Red Red [623 nm] LUXEON Versat 2020 20 20 50 2.6 A1VB-R620A
Long Red Long Red [630 nm] LUXEON Versat 2020 20 20 50 1.8 A1VB-S627A
Super Red Super Red [635 nm] LUXEON Versat 2020 20 20 50 1.5 A1VB-S632A

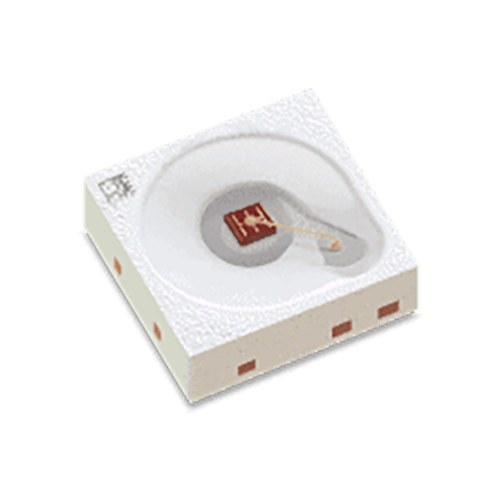

Red-Orange Red Orange [615 nm] LUXEON Versat 2020 50 50 90 8.0 A1VB-O612B

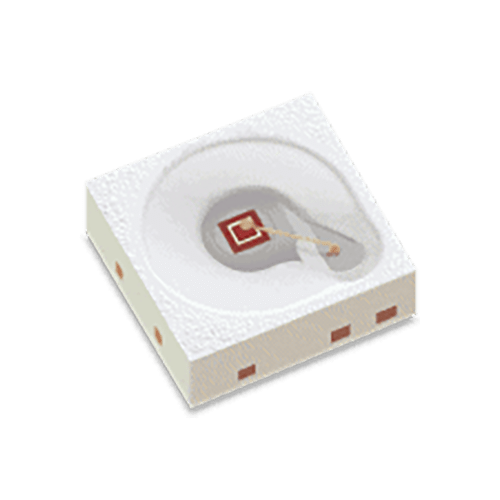

Red Red [623 nm] LUXEON Versat 2020 50 50 90 6.1 A1VB-R620B
Long Red Long Red [630 nm] LUXEON Versat 2020 50 50 90 4.7 A1VB-S627B
Super Red Super Red [635 nm] LUXEON Versat 2020 50 50 90 3.3 A1VB-S632B

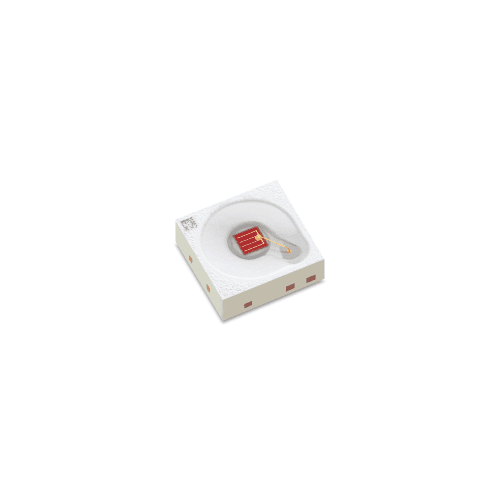

Red Orange Red Orange [615 nm] LUXEON Versat 2020 140 140 200 23.0 A1VB-O612C

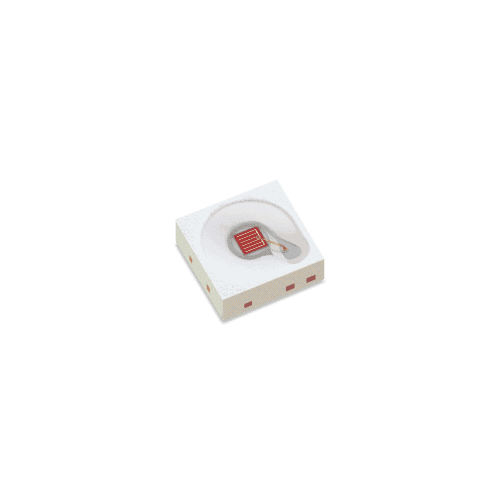

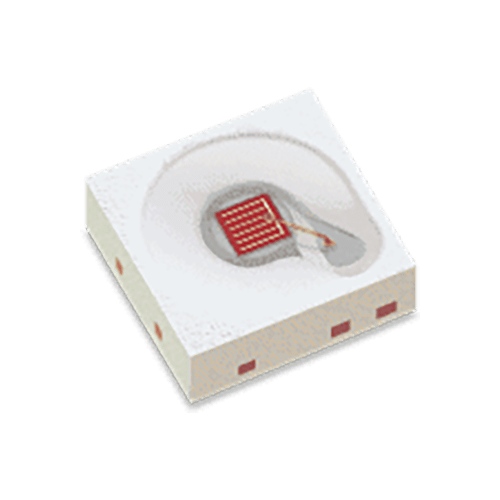

Red Red [623 nm] LUXEON Versat 2020 140 140 200 19.5 A1VB-R620C
Long Red Long Red [630 nm] LUXEON Versat 2020 140 140 200 15.0 A1VB-S627C
Super Red Super Red [635 nm] LUXEON Versat 2020 140 140 200 10.4 A1VB-S632C

Expand Media

Applications

  • Back-Up/Reverse
  • Daytime Running Lights
  • Front Fog
  • Front Turn
  • Rear Turn
  • Rear Fog
  • Side Marker

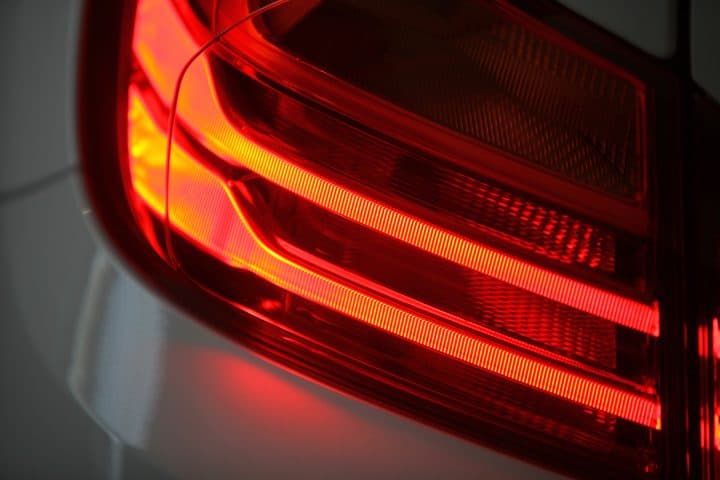

  • Stop/Tail
  • CHMSL
  • Turn
  • License Plate
