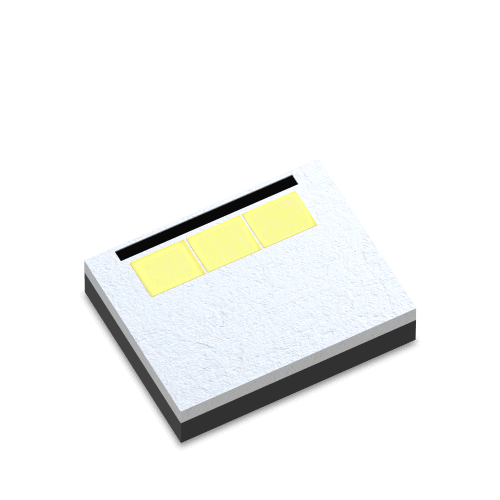

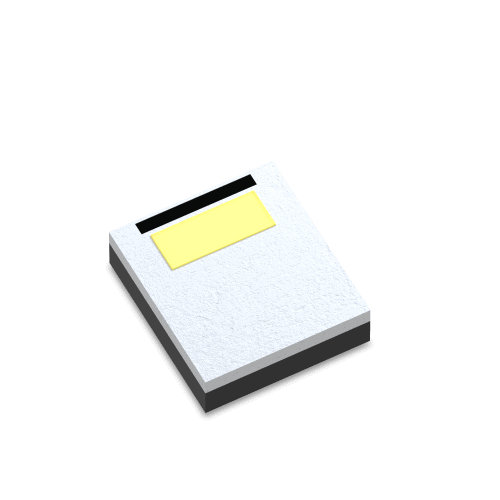

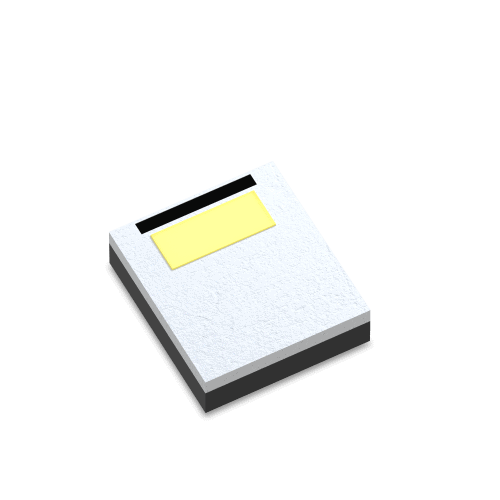

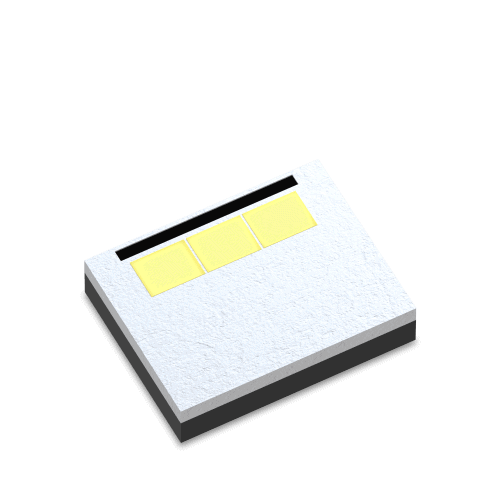

LUXEON Altilon Intense

Small form factor multi die LED for headlighting

What is LUXEON Altilon Intense?

Small form factor multi-die LED with high drive current capability and contrast for advanced headlighting.


Benefits of LUXEON Altilon Intense:

  • High luminance enables higher beam intensity, the miniaturization of secondary optics, and greater design flexibility
  • Low thermal resistance and high operating case temperature allow for smaller heatsinks, efficient heat dissipation, and simplified thermal management
  • High luminance with wide flux range provides best-in-class headlight beam performance, and allows for advanced lighting systems

Key Features:

  • High luminance device
  • Low thermal resistance with dedicated thermal pad
  • Flexible packaging
  • Binned at 85°C, consistent with automotive operational environments

Important Notes:

  • Available in 1x2, 1x3 and 1x4 configurations
  • Same footprint as LUXEON SMD

Products

ProductI-maxHigh Beam, Low Beam, Spot LightAdaptive Driving BeamFront FogDaytime Running Lights (DRL, Front Position, Park),
Front Position Light
Front Turn Signal, Hazard Light
LUXEON Altilon Intense 1x2 1.5A X X X
LUXEON Altilon Intense 1x3 1.125A X X X
LUXEON Altilon Intense 1x4 1.125A X X X

Documentation

Design Resources

  • Mechanical

    Mechanical

    LXN-Altilon-Intense
    LL ID File Format Title Products Modified Size (MB)
    DRM3310 STEP LUXEON Altilon Intense 1x2 STEP A1SL-58502DH0xxxx0 10/08/2018 0.08
    DRM3311 STEP LUXEON Altilon Intense 1x3 STEP A1SL-58503DH0xxxx0 10/09/2018 0.08
    DRM3326 IGS LUXEON Altilon Intense 1x4 IGS A1SL-58504DH0xxxx0 10/22/2018 0.80
    DRM3312 STEP LUXEON Altilon Intense 1x4 STEP A1SL-58504DH0xxxx0 10/08/2018 0.09
