LUXEON 3030 2D

High flux, hot-color targeted 6V package

Home / Lighting Products / Mid and Low Power LEDs / LUXEON 3030 2D

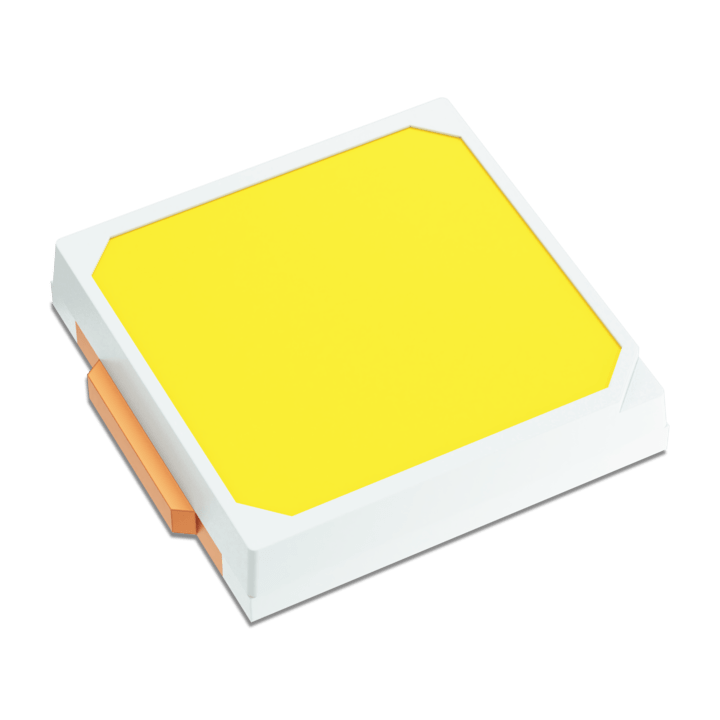

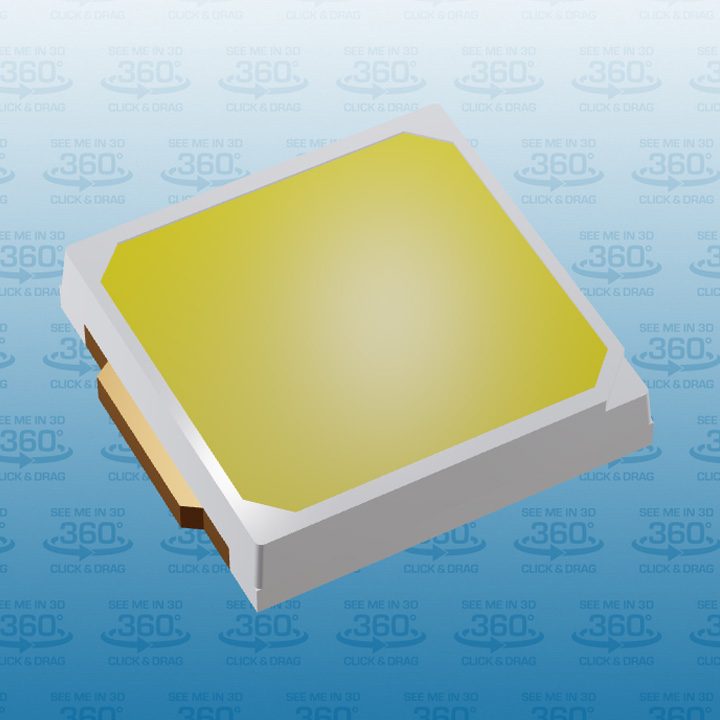

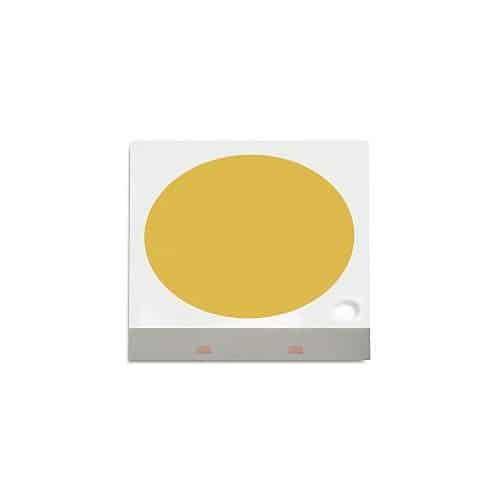

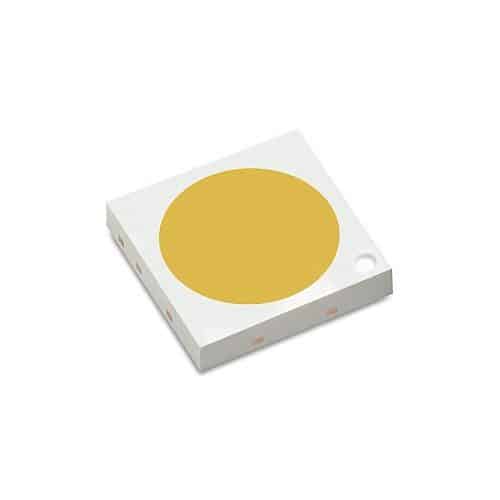

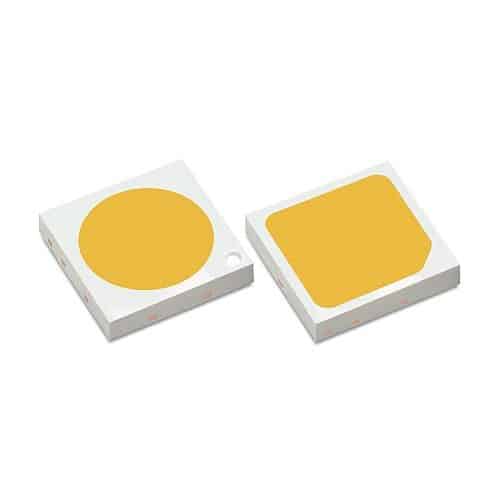

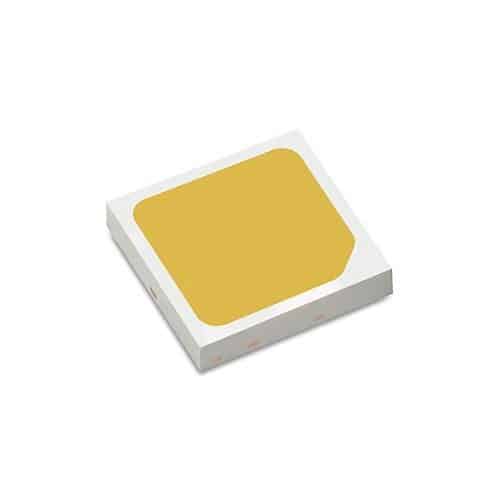

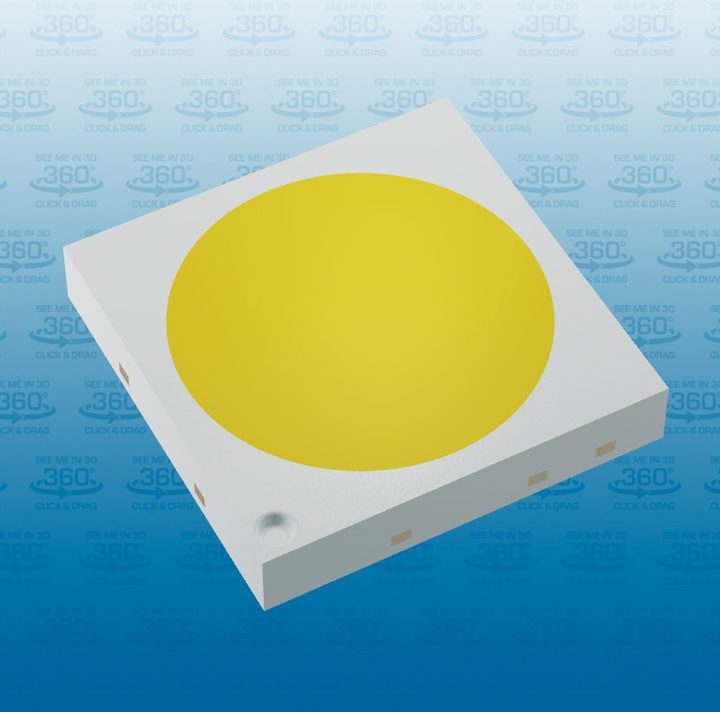

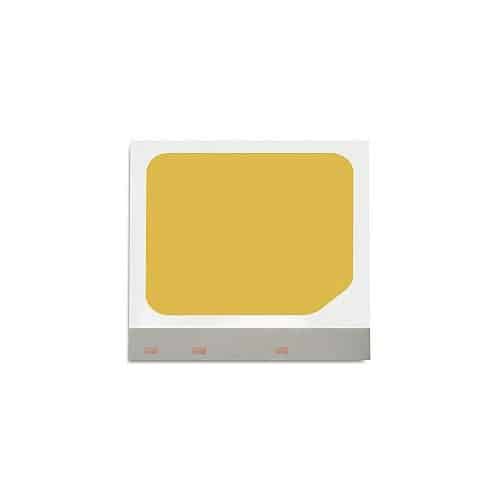

LUXEON 3030 2D

LUXEON 3030 2D is the first hot-color targeted mid power LED. Hot-color targeting ensures that the LEDs are within color target at application conditions — 85°C. Using an industry standard packaging of 3.0mm x 3.0mm x 0.5mm and 6V surface-mount emitter solution, LUXEON 3030 2D comes in all ANSI CCTs and delivers the efficacy and reliability required for indoor illumination markets.

Product performance at 120mA and 100mA at specified temperature.
Nominal
CCT		Minimum
CRI		Luminous Flux
(lm)		Typical
Luminous Efficacy
(lm/W)		Typical Luminous Flux (lm)Typical Luminous Efficacy (lm/W)Part Number
MinimumTypical100mA
120mA
3000K 70 98 108 148 92 153 L130-3070003000W21
3500K 70 100 111 152 95 158 L130-3570003000W21
4000K 70 101 116 158 99 165 L130-4070003000W21
5000K 70 101 116 158 99 165 L130-5070003000W21
5700K 70 101 115 157 98 164 L130-5770003000W21
6500K 70 101 115 157 98 164 L130-6570003000W21
2200K 80 80 88 120 75 125 L130-2280003000W21
2700K 80 80 103 141 88 147 L130-2780003000W21
3000K 80 85 106 145 90 150 L130-3080003000W21
3500K 80 85 109 149 93 155 L130-3580003000W21
4000K 80 90 115 157 98 163 L130-4080003000W21
5000K 80 90 115 157 98 163 L130-5080003000W21
5700K 80 90 115 157 98 163 L130-5780003000W21
6500K 80 90 115 157 98 163 L130-6580003000W21
2700K 90 72 84 115 72 119 L130-2790003000W21
3000K 90 75 86 117 73 122 L130-3090003000W21
3500K 90 75 88 120 75 125 L130-3590003000W21
4000K 90 75 92 126 78 131 L130-4090003000W21
5000K 90 75 92 126 78 131 L130-5090003000W21

Documentation

Design Resources

  • Electrical

    Electrical

    LUXEON 3030 2D
    top
    LL ID File Format Title Products Colors/Packages Modified Size (MB)
    DRE1896 Altium Designer LUXEON 3030 2D Altium L130-xxxx003000W21 03/07/2016 1.04
    DRE1897 Gerber LUXEON 3030 2D Gerber L130-xxxx003000W21 03/07/2016 0.04
    DRM1845 STEP LUXEON 3030 2D STEP file L130-xxxx003000W21 03/07/2016 0.02
  • Mechanical

    Mechanical

    LUXEON 3030 2D
    top
    LL ID File Format Title Products Colors/Packages Modified Size (MB)
    DRE1896 Altium Designer LUXEON 3030 2D Altium L130-xxxx003000W21 03/07/2016 1.04
    DRE1897 Gerber LUXEON 3030 2D Gerber L130-xxxx003000W21 03/07/2016 0.04
    DRM1845 STEP LUXEON 3030 2D STEP file L130-xxxx003000W21 03/07/2016 0.02
LUXEON 3030 2D

Features & Benefits

  • Industry standard package enables drop-in replacement for existing 3030 packages
  • 1/9th micro-color binning enables tight color control
  • Superior luminous flux at max current for reduced LED count
  • Hot-color targeting ensures that color is within ANSI bin at typical application conditions, 85°C
  • Enables 3-, 4-, 5-step MacAdam ellipse custom binning kits
