LUXEON XF-3535L (Not Recommended for New Design)

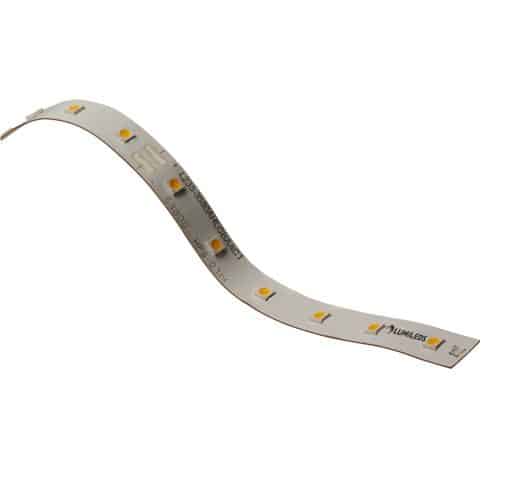

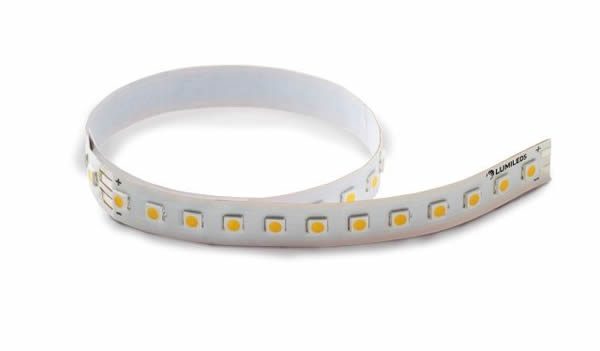

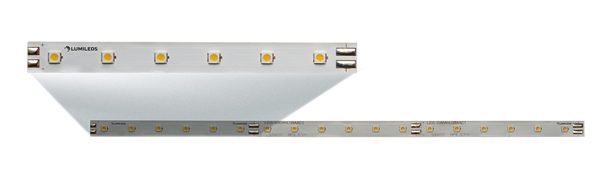

LUXEON XF-3535L is a fully integrated solution optimized for lighting applications requiring flexible linear LED arrays that can easily fit into any luminaire housing form factor. The turnkey solution minimizes time to market and simplifies supply chain by reducing optical and mechanical design efforts. Combined with LUXEON 3535L, LUXEON XF-3535L provides the same powerful optical performance guaranteed by LUXEON LEDs.

Product performance at test current and Tj=25°C.

Nominal
CCT
Minimum
CRI
Luminous
Flux (lm)
Typical Luminous
Efficacy (lm/W)
Test
Current
(mA)
Part Number
Minimum Typical
2200K 80 1080 1206 112 600 L235-2280AHLxByAC0
80 1680 1876 112 800 L235-2280AMLF5WAD0
80 3240 3618 112 900 L235-2280AULM5JAI0
2700K 80 1368 1476 137 600 L235-2780AHLxByAC0
80 2128 2296 137 800 L235-2780AMLF5WAD0
80 4104 4428 137 900 L235-2780AULM5JAI0
85 1080 1224 113 600 L235-2790AHLxByAC0
85 1680 1904 113 800 L235-2790AMLF5WAD0
85 3240 3672 113 900 L235-2790AULM5JAI0
3000K 80 1368 1512 140 600 L235-3080AHLxByAC0
80 2128 2352 140 800 L235-3080AMLF5WAD0
80 4104 4536 140 900 L235-3080AULM5JAI0
3500K 80 1512 1548 143 600 L235-3580AHLxByAC0
80 2352 2408 143 800 L235-3580AMLF5WAD0
80 4536 4644 143 900 L235-3580AULM5JAI0
4000K 80 1512 1584 147 600 L235-4080AHLxByAC0
80 2352 2464 147 800 L235-4080AMLF5WAD0
80 4536 4752 147 900 L235-4080AULM5JAI0
85 1224 1368 127 600 L235-4090AHLxByAC0
85 1904 2128 127 800 L235-4090AMLF5WAD0
85 3672 4104 127 900 L235-4090AULM5JAI0
5000K 80 1512 1692 157 600 L235-5080AHLxByAC0
80 2352 2632 157 800 L235-5080AMLF5WAD0
80 4536 5076 157 900 L235-5080AULM5JAI0
5700K 80 1512 1548 143 600 L235-5780AHLxByAC0
80 2352 2408 143 800 L235-5780AMLF5WAD0
80 4536 4644 143 900 L235-5780AULM5JAI0
70 1584 1692 157 600 L235-5770AHLxByAC0
70 2464 2632 157 800 L235-5770AMLF5WAD0
70 4752 5076 157 900 L235-5770AULM5JAI0

Features & Benefits

  • 1000-5000 lumen strips enabling efficacies of up to 157 lm/W
  • A full range of CCT/CRI offerings: 2200K-5700K with 70-90CRI minimums
  • Complete integrated solution guarantees simplified supply chain and faster time to market
  • Backside adhesive for attachment to heat sink allows for ease of mounting and assembly
  • Available with solder terminals or push-in wire connectors for easy electrical connection
  • UL-recognized component (E335118]
  • 5 year limited warranty
