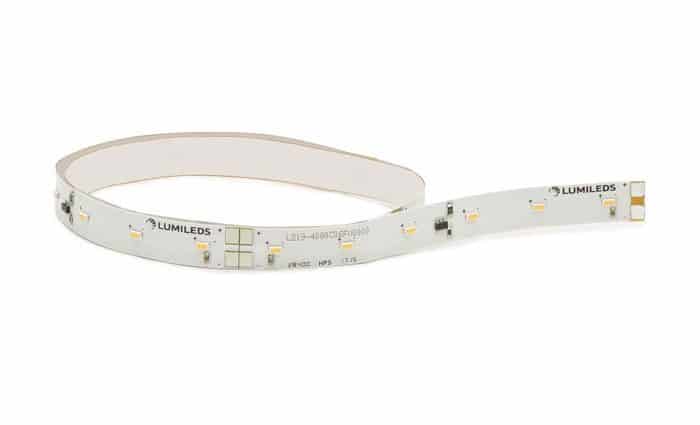

LUXEON XF-3014 CV (Not Recommended for New Design)

LUXEON XF-3014 CV is for constant voltage driven applications that require a flexible design capable of maintaining uniform light d istribution over long lengths. These current regulated flexible strips come in variable length options and are either cuttable or include snap-together connectors for precision design. Designed for ease of system integration, faster time to market and best-in-class reliability, LUXEON XF-3014 CV is available in the following configurations:

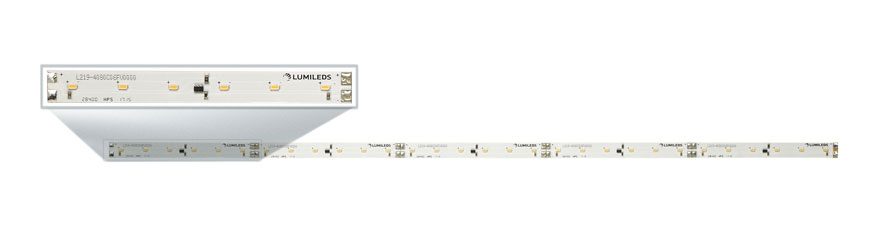

  • 6 LEDs per segment cuttable every 96mm

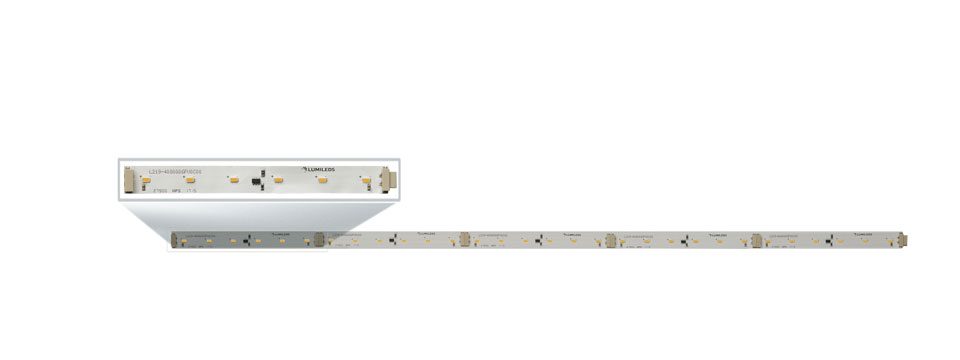

  • 6 LEDs, 96mm segments with connectors

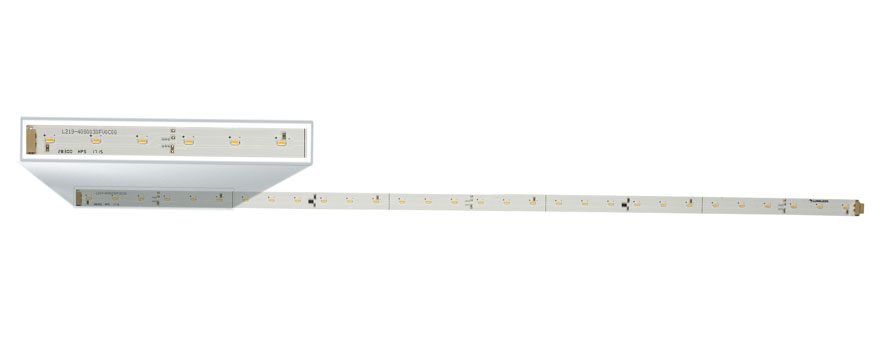

  • 30 LEDs, 480mm segments with connectors

Product performance at 24V, specified current, Tj=50°C.

Configuration Nominal
CCT
Minimum
CRI
Luminous
Flux (lm)
Typical Luminous
Efficacy (lm/W)
Regulated
Current
(mA)
Segment Type Part Number
Minimum Typical
6 LEDs, 96mm (1 parallel x 6 series) 2700K 80 86 98 95 42.5 Cuttable L219-2780C06FV0000
3000K 80 90 102 100 42.5 Cuttable L219-3080C06FV0000
4000K 80 100 112 110 42.5 Cuttable L219-4080C06FV0000
6 LEDs, 96mm (1 parallel x 6 series) 2700K 80 86 98 95 42.5 Connectors L219-2780006FV0C00
3000K 80 90 102 100 42.5 Connectors L219-3080006FV0C00
4000K 80 100 112 110 42.5 Connectors L219-4080006FV0C00
30 LEDs, 480mm (5 parallel x 6 series) 2700K 80 430 490 95 212.5 Connectors L219-2780030FV0C00
3000K 80 450 510 100 212.5 Connectors L219-3080030FV0C00
4000K 80 500 560 110 212.5 Connectors L219-4080030FV0C00

Features & Benefits

  • 112 lumens per 96mm segment with 110 lm/W efficacy at 24V, Tj=50°C
  • 2700, 3000 and 4000K CCT offerings with 80CRI
  • <2% light output attenuation over 10m length
  • Backside adhesive for attachment to heat sink allows for ease of mounting and assembly
  • Complete integrated solution guarantees simplified supply chain and faster time to market
  • 5 year limited warranty
