LUXEON IR 2720 Line

High power infrared emitters optimized for cost conscious applications

LUXEON IR 2720 Line

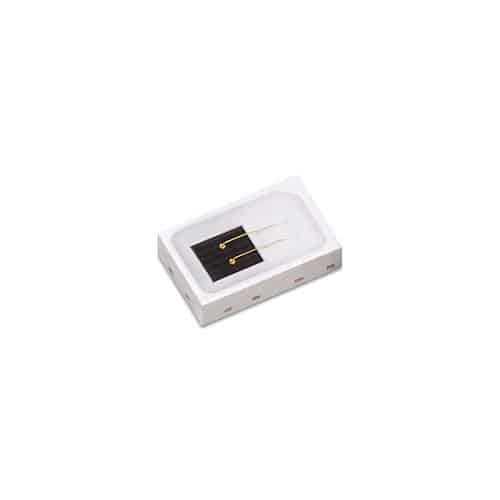

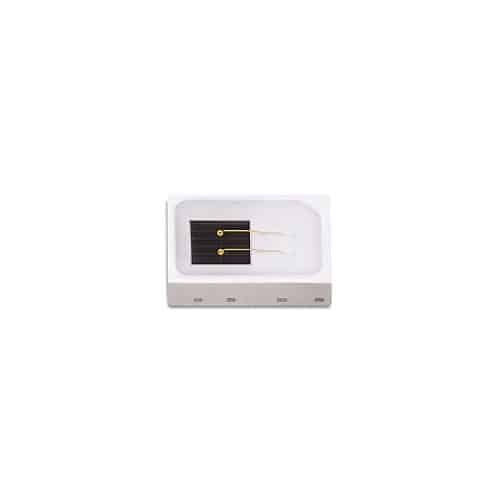

LUXEON IR 2720 is a line of high power infrared emitters in a reliable package design, affirming long lifetime and robustness in many types of application conditions. The LUXEON IR 2720 Line uses an industry standard footprint for ease of integration and upgrades of existing system designs.

LUXEON IR 2720 Line product performance at 1000mA, Tj=25°C.
Typical FWHM Beam Angle (°)Radiometric Power 600-1050 nm
(mW)
Typical Radiant Intensity (mW/sr)Part Number
MinimumTypical
120 1100 1300 420 L1IG-0850000000000
120 1000 1250 408 L1IG-0940000000000

Documentation

Design Resources

  • Mechanical

    Mechanical

    LUXEON IR 2720 Line
    LL ID File Format Title Products Modified Size (MB)
    DRM3654 STEP LUXEON IR 2720 Line STEP L1IG-0850000000000
    L1IG-0940000000000
    12/09/2019 0.01
  • Optical

    Optical

    LUXEON IR 2720 Line
    In order to properly use the design resource files below, please download the README file for instructions.
    LL ID File Format Title Products Modified Size (MB)
    DRO3661 ASAP LUXEON IR 2720 Line ASAP 5M Rays L1IG-0850000000000
    L1IG-0940000000000
    11/27/2019 133.52
    DRO3659 ProSource rs8 LUXEON IR 2720 Line in ProSource rs8 format L1IG-0850000000000
    L1IG-0940000000000
    11/27/2019 163.46
    DRO3662 LightTools LUXEON IR 2720 Line LightTools Binary 5M Rays L1IG-0850000000000
    L1IG-0940000000000
    11/27/2019 133.52
    DRO3663 LucidShape LUXEON IR 2720 Line LucidShape 5M Rays L1IG-0850000000000
    L1IG-0940000000000
    11/27/2019 133.52
    DRO3664 Optis LUXEON IR 2720 Line Optis 5M Rays L1IG-0850000000000
    L1IG-0940000000000
    11/27/2019 152.59
    DRO3667 Photopia LUXEON IR 2720 Line Photopia 5M Rays L1IG-0850000000000
    L1IG-0940000000000
    11/27/2019 133.52
    DRO3665 TracePro LUXEON IR 2720 Line TracePro Binary 5M Rays L1IG-0850000000000
    L1IG-0940000000000
    11/27/2019 133.52
    DRO3666 Zemax LUXEON IR 2720 Line Zemax 5M Rays L1IG-0850000000000
    L1IG-0940000000000
    11/27/2019 133.52

Features & Benefits

  • Available in 850nm and 940nm wavelengths to provide optimized performance for each type of application
  • Radiant Power: 1300 mW (850nm) and 1250 mW (940nm) for a greater system performance
  • 2.75mm x 2.00mm package with a 2 pad configuration that is compatible with the industry standard footprint to enable a direct upgrade in existing designs

Applications

  • Surveillance / CCTV
  • Machine Vision
  • Biometric Identification
