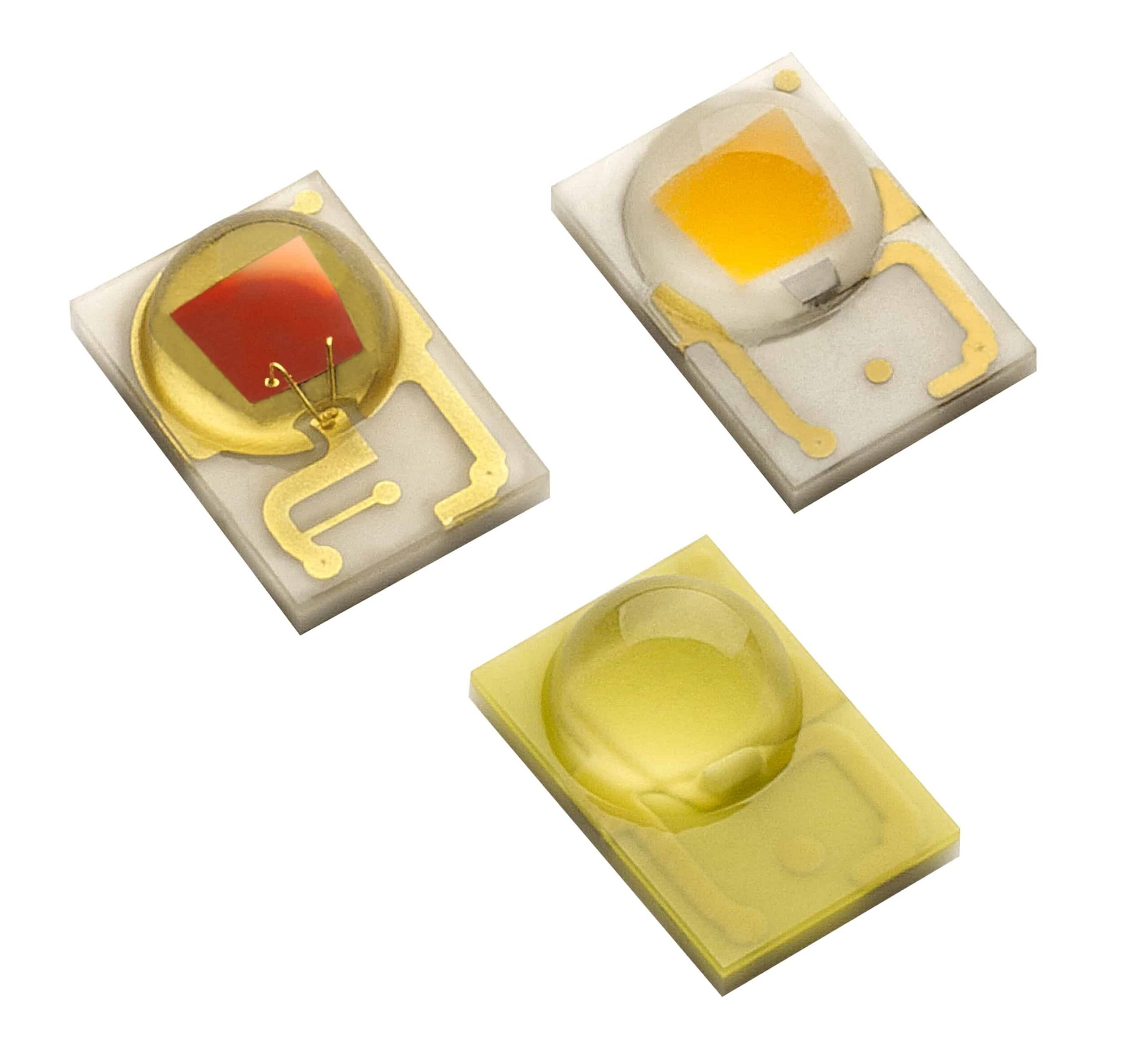

LUXEON Rebel Automotive

Automotive grade LUXEON Rebel LEDs are designed and tested to meet and exceed expectations for reliability, performance and lifetime. These high flux LEDs are suitable for use in daytime running lights, position lights, backup lights, front and rear turn lights, rear fog and stop/tail light applications.

LUXEON Rebel Automotive LED lighting applications include use of:

  • White for daytime running and backup lights
  • PC Amber for turn and side marker lights
  • Red Orange and Super Red for rear fog and stop/tail light applications

LUXEON Rebel White product performance at specified current, Tj=25°C.

ColorCCTBinning CurrentMaximum CurrentPart Number
Minimum
Luminous
Flux (lm)
Current
(mA)
Typical
Luminous
Flux (lm)
Current
(mA)
Cool WhiteCool White5500K110350199700LXMA-PW01-0110
5500K120350216700LXMA-PW01-0120
5500K130350233700LXMA-PW01-0130

LUXEON Rebel Super Red/Red Orange/PC Amber product performance at 350mA, Tj=25°C.

ColorDominant Wavelength (nm)Part Number
MinimumMaximum
Super RedSuper Red632638LXMA-PS03
Red OrangeRed Orange612618LXMA-PH03
AmberPC Amber588592LXMA-PL02



Documentation

Design Resources

  • Electrical
    LUXEON Rebel Automotive

    In order to properly use the optical design resource file below, please download the README file for instructions.
    LL IDFile formatTitleProductsModifiedSize (MB)
    DRE003 Altium Designer
    LUXEON Rebel Altium Designer library model LXW9-PW30
    LXW9-PW27
    LXW8-PW50
    LXW8-PW40
    More Products
    LXW8-PW35
    LXML-PWW1-0060
    LXML-PWW1-0050
    LXML-PWW1-0040
    LXML-PWN2
    LXML-PWN1-xxxx
    LXML-PWC2
    LXML-PWC1-xxxx
    LXML-PW71
    LXML-PW51
    LXML-PW31
    LXML-PW21
    LXML-PW11
    LXML-PR02
    LXML-PR01-0425
    LXML-PR01-0350
    LXML-PR01-0275
    LXML-PM01-0100
    LXML-PM01-0090
    LXML-PM01-0080
    LXML-PM01-0070
    LXML-PL01-0030
    LXML-PL01-0023
    LXML-PH01-0050
    LXML-PH01-0040
    LXML-PE01-0070
    LXML-PE01-0060
    LXML-PD01-0040
    LXML-PD01-0030
    LXML-PB01-0023
    LXML-PB01-0018
    LXML-PB01-0013
    LXMA-PW01-0100
    LXMA-PW01-0090
    LXMA-PL01-0030
    LXMA-PL01-0023
    LXMA-PH01-0050
    LXMA-PH01-0040
    LXM8-PW30
    LXM8-PW27
    LXM3-PW81
    LXM3-PW71
    LXM3-PW61
    LXM3-PW51
    LXM3-PD01-0350
    LXM3-PD01-0260
    LXM2-PL01-0090
    LXM2-PL01-0080
    LXM2-PL01-0070
    LXM2-PL01-0060
    LXM2-PH01-0070
    LXM2-PH01-0060
    LXM2-PD01-0050
    LXM2-PD01-0040
    LXLW-PWN1-0100
    LXLW-PWC1-0100
    LXH8-PW30
    LXH8-PW27
    LXH7-PW40
    10/04/20190.01
  • Mechanical
    LUXEON Rebel Automotive

    LL IDFile formatTitleProductsModifiedSize (MB)
    DRM004 DWG
    LUXEON Rebel Footprint (DWG) LXML-PW71
    10/04/20190.00
    DRM0985 DWG
    LUXEON Rebel FR4 Filled and Capped Vias (DWG) LXML-PR01-0425
    LXML-PR01-0350
    LXML-PR01-0275
    LXML-PM01-0100
    More Products
    LXML-PM01-0090
    LXML-PM01-0080
    LXML-PM01-0070
    LXML-PL01-0030
    LXML-PL01-0023
    LXML-PH01-0050
    LXML-PH01-0040
    LXML-PE01-0070
    LXML-PE01-0060
    LXML-PD01-0040
    LXML-PD01-0030
    LXML-PB01-0023
    LXML-PB01-0018
    LXML-PB01-0013
    LXMA-PW01-0100
    LXMA-PW01-0090
    LXMA-PL01-0030
    LXMA-PL01-0023
    LXMA-PH01-0050
    LXMA-PH01-0040
    LXM8-PW30
    LXM8-PW27
    LXM3-PW81
    LXM3-PW71
    LXM3-PW61
    LXM3-PW51
    LXM3-PD01-0350
    LXM3-PD01-0260
    LXM2-PL01-0090
    LXM2-PL01-0080
    LXM2-PL01-0070
    LXM2-PL01-0060
    LXM2-PH01-0070
    LXM2-PH01-0060
    LXM2-PD01-0050
    LXM2-PD01-0040
    04/26/20160.04
  • Optical
    LUXEON Rebel Automotive

    In order to properly use the optical design resource file below, please download the README file for instructions.
    LL IDFile formatTitleProductsModifiedSize (MB)
    DRO1049 ProSource 7
    LUXEON Rebel AllnGaP (Red, Red-Orange, Amber) LXMA-PH01-0040
    LXMA-PH01-0050
    LXMA-PL01-0023
    LXMA-PL01-0030
    08/27/2012180.78
    DRO1082 ASAP
    LUXEON Rebel AllnGaP ASAP 5M rays LXMA-PH01-0040
    LXMA-PH01-0050
    LXMA-PL01-0023
    LXMA-PL01-0030
    08/27/2012133.51
    DRO1080 ASCII
    LUXEON Rebel AllnGaP ASCII 5M rays LXMA-PH01-0040
    LXMA-PH01-0050
    LXMA-PL01-0023
    LXMA-PL01-0030
    08/27/2012488.86
    DRO1083 LightTools
    LUXEON Rebel AllnGaP LightTools 5M rays LXMA-PH01-0040
    LXMA-PH01-0050
    LXMA-PL01-0023
    LXMA-PL01-0030
    08/27/2012488.87
    DRO1084 LucidShape
    LUXEON Rebel AllnGaP LucidShape 5M rays LXMA-PH01-0040
    LXMA-PH01-0050
    LXMA-PL01-0023
    LXMA-PL01-0030
    08/27/2012133.51
    DRO1081 Zemax
    LUXEON Rebel AllnGaP Zemax 5M rays LXMA-PH01-0040
    LXMA-PH01-0050
    LXMA-PL01-0023
    LXMA-PL01-0030
    08/27/2012133.51
    DRO1048 ProSource 7
    LUXEON Rebel Cool White LXMA-PW01-0100
    LXMA-PW01-0090
    08/27/2012129.09
    DRO1063 ASCII
    LUXEON Rebel White Automotive ASCII 5M rays LXMA-PW01-0090
    LXMA-PW01-0100
    08/27/2012488.48
    DRO1065 LightTools
    LUXEON Rebel White Automotive LightTools 5M rays LXMA-PW01-0090
    LXMA-PW01-0100
    08/27/2012488.48
    DRO1062 Zemax
    LUXEON Rebel White Automotive Zemax 5M rays LXMA-PW01-0090
    LXMA-PW01-0100
    08/27/2012133.51

Features & Benefits

  • Low thermal resistance provides proven reliability
  • Low forward voltage results in higher efficacy and lower solution costs
  • Electrically isolated thermal pad provides higher lighting efficacy and reduces thermal management engineering costs

Applications

  • Backup/Reverse
  • Commercial Vehicle Lighting
  • Daytime Running Lights (DRL)
  • Front Turn
  • Mirror/Side Repeater
  • Motorcycle Lighting
  • Rear Fog
  • Rear Turn
  • Stop/Tail
  • Turn
