LUXEON MX

Unmatched performance in a proven package

LUXEON MX

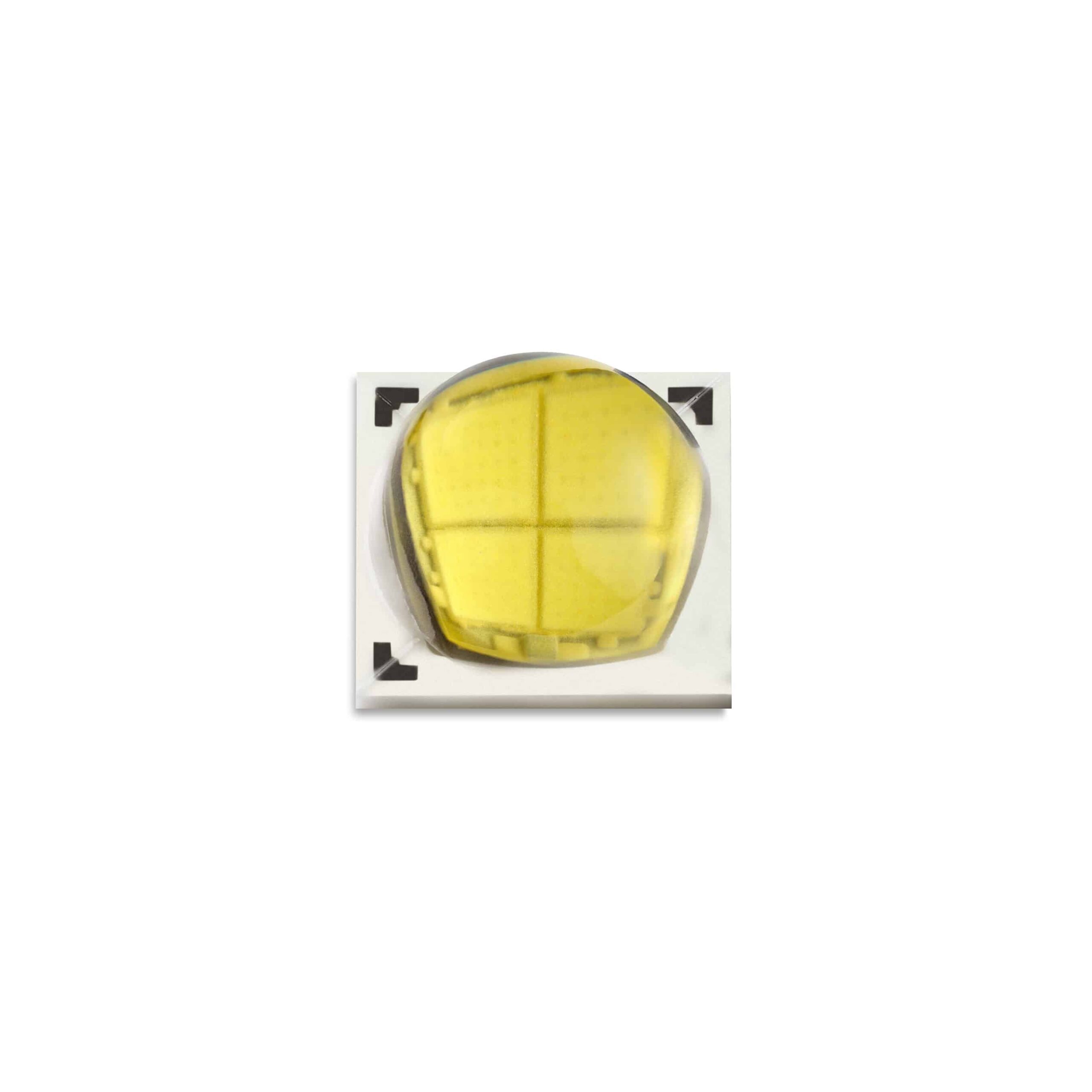

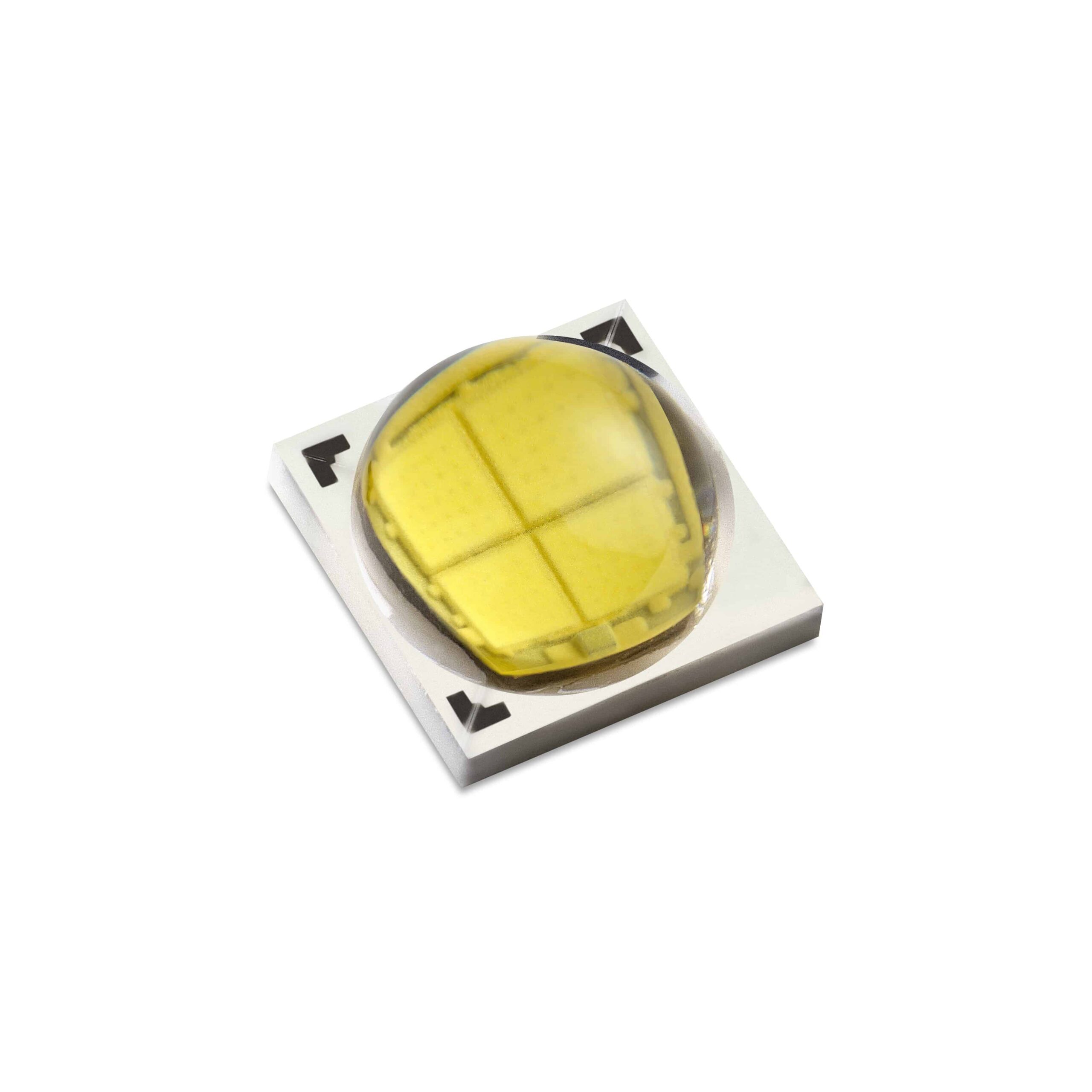

LUXEON MX is a high power emitter enabling cost effective, high reliability fixtures for High Bay and Outdoor applications requiring system efficiency of up to 157 lm/W. This breakthrough LED provides double the flu x compared to previous generations with an even more robust high power design. Designed to be optically compatible with LUXEON M, LUXE ON MX enables luminaire manufacturers to instantly upgrade their syst ems to market leading efficiency without investing design resources.

Product performance for LUXEON MX at test current, Tj=85°C.
VoltageNominal
CCT
Minimum
CRI
Luminous Flux
(lm)
Test Current
(mA)
Part Number
MinimumTypicalTypical Tj=25°C
12V 2700K 70 970 1050 1095 700 L1MX-277012V000000
3000K 70 1040 1161 1270 700 L1MX-307012V000000
4000K 70 1160 1232 1345 700 L1MX-407012V000000
5000K 70 1160 1232 1345 700 L1MX-507012V000000
5700k 70 1160 1232 1345 700 L1MX-577012V000000
6500K 70 1160 1232 1345 700 L1MX-657012V000000
2700K 80 900 988 1095 700 L1MX-278012V000000
3000K 80 970 1000 1110 700 L1MX-308012V000000
4000K 80 1040 1115 1220 700 L1MX-408012V000000
5000K 80 1040 1115 1220 700 L1MX-508012V000000
5700K 90 900 965 1046 700 L1MX-579012V000000
6V 2700K 70 970 1050 1095 1400 L1MX-277006V000000
3000K 70 1040 1161 1270 1400 L1MX-307006V000000
4000K 70 1160 1232 1345 1400 L1MX-407006V000000
5000K 70 1160 1232 1345 1400 L1MX-507006V000000
5700K 70 1160 1232 1345 1400 L1MX-577006V000000
6500K 70 1160 1232 1345 1400 L1MX-657006V000000
2700K 80 900 988 1095 1400 L1MX-278006V000000
3000K 80 970 1000 1110 1400 L1MX-308006V000000
4000K 80 1040 1115 1220 1400 L1MX-408006V000000
5000K 80 1040 1115 1220 1400 L1MX-508006V000000
5700K 90 900 965 1046 1400 L1MX-579006V000000
3V 2700K 70 970 1050 1095 2800 L1MX-277003V000000
3000K 70 1040 1161 1270 2800 L1MX-307003V000000
4000K 70 1160 1232 1345 2800 L1MX-407003V000000
5000K 70 1160 1232 1345 2800 L1MX-507003V000000
5700K 70 1160 1232 1345 2800 L1MX-577003V000000
6500K 70 1160 1232 1345 2800 L1MX-657003V000000
2700K 80 900 988 1095 2800 L1MX-278003V000000
3000K 80 970 1000 1110 2800 L1MX-308003V000000
4000K 80 1040 1115 1220 2800 L1MX-408003V000000
5000K 80 1040 1115 1220 2800 L1MX-508003V000000
5700K 90 900 965 1046 2800 L1MX-579003V000000



Documentation

Design Resources

  • Electrical

    Electrical

    LUXEON MX
    LL ID File Format Title Products Modified Size (MB)
    DRE2879 Gerber LUXEON MX Star MCPCB Gerber L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 0.01
  • Mechanical

    Mechanical

    LUXEON MX
    LL ID File Format Title Products Modified Size (MB)
    DRM2881 STEP LUXEON MX 3D STEP L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 0.08
    DRM2880 DWG LUXEON MX MCPBC Layout L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 0.03
  • Optical

    Optical

    LUXEON MX

    In order to properly use the design resource files below, please download the README file for instructions.

    LL ID File Format Title Products Modified Size (MB)
    DRO2882 ProSource rs8 LUXEON MX 4070 Prosource rs8 file L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 375.43
    DRO2883 ASAP LUXEON MX ASAP 5M rays L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 133.51
    DRO2884 LightTools LUXEON MX LightTools Binary 5M rays L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 133.51
    DRO2885 LucidShape LUXEON MX LucidShape 5M rays L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 133.51
    DRO2886 Optis LUXEON MX OPTIS 5M rays L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 152.58
    DRO2887 Photopia LUXEON MX Photopia 5M rays L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 133.51
    DRO2888 TracePro LUXEON MX TracePro Binary 5M rays L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 133.51
    DRO2889 Zemax LUXEON MX Zemax 5M rays L1MX-xxxx03V000000
    L1MX-xxxx06V000000
    L1MX-xxxx12V000000
    02/06/2017 133.51

Features and Benefits

  • 2,000 lumens at 130 lm/W enables cost effective 100 lm/W fixtures
  • 1,200 lumens at 150 lm/W enables high performance 120 lm/W fixtures
  • Double the flux vs. comparable emitters in 120 lm/W systems
  • More robust package for improved reliability at higher drive currents
  • Same footprint and optically compatible with LUXEON M for an instant upgrade
