LUXEON UV FC Line

Unique LED enabling limitless design freedom

LUXEON UV FC Line

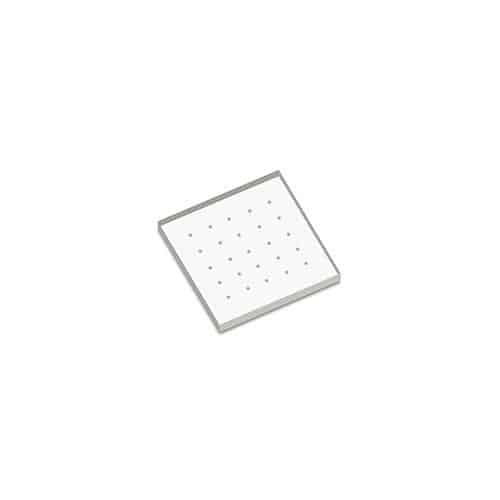

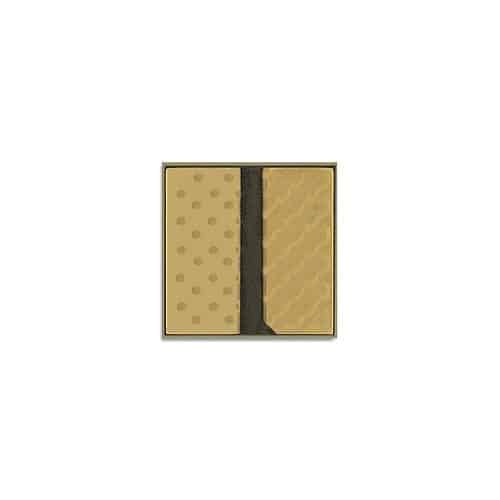

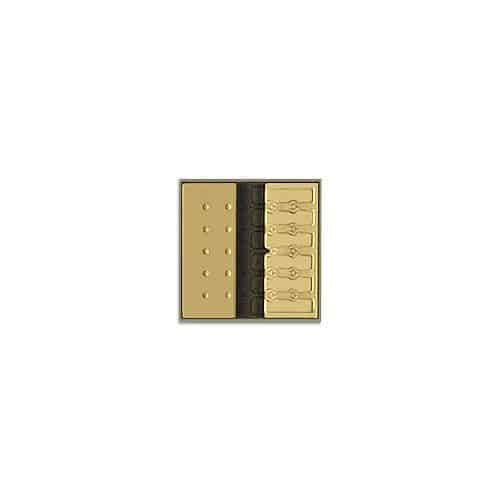

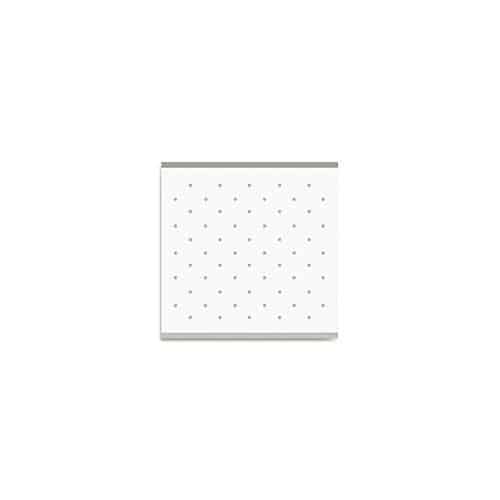

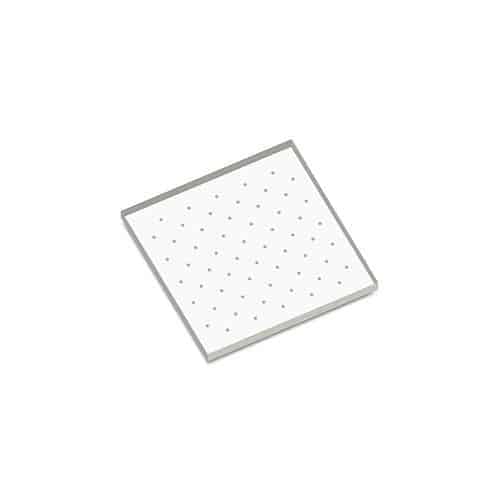

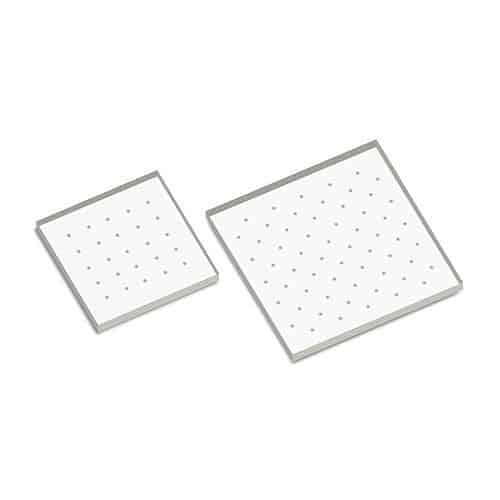

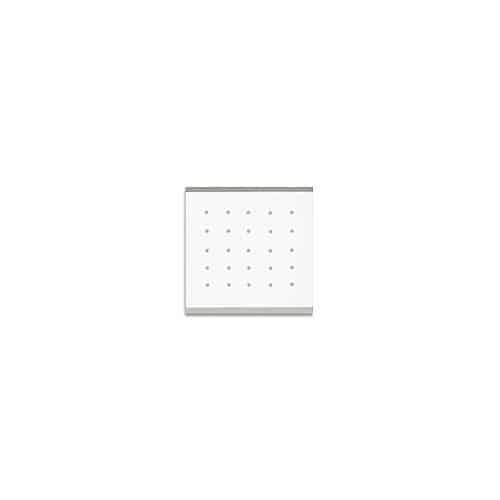

With FlipChip platform technology, LUXEON UV FC Line contains both 1mm2 and 2mm2 die sizes and is the smallest and highest power density (W/cm2) ultraviolet with FlipChip Technology in a Chip Scale Package (CSP) LED that can be reflowed onto a substrate with standard surface mount (SMT) equipment and process. LUXEON UV FC Line LEDs enable tighter beam control and high packing density of LEDs on a chip on board solution and completely eliminate wire bonds in the system. LUXEON UV FC Line is the ideal choice for cost sensitive applications to achieve high irradiance at high current density, maximizing W/$ by taking advantage of lowest thermal resistance of a CSP device.

LUXEON UV FC1 product performance at 500mA and 1000mA, Tj=25°C.
Peak Wavelength (nm)Typical Radiometric Power
(mW)
Part Number
500mA1000mA
410-420

650 1228 LxF3-U410100006001
750 1417 LxF3-U410100007001
400-410 650 1228 LxF3-U400100006001
750 1417 LxF3-U400100007001
390-400 550 1039 LxF3-U390100005001
650 1228 LxF3-U390100006001
750 1417 LxF3-U390100007001
380-390 350 661 LxF3-U380100003001
450 850 LxF3-U380100004001
530 1001 LxF3-U380100005001
LUXEON UV FC2 product performance at 1000mA and 2000mA, Tj=25°C.
Peak Wavelength (nm)Typical Radiometric Power
(mW)
Part Number
1000mA2000mA
410-420

1300 2340 LxF3-U410200012001
1500 2700 LxF3-U410200014001
400-410 1100 1980 LxF3-U400200010001
1300 2340 LxF3-U400200012001
1450 2610 LxF3-U400200014001
390-400 1100 1980 LxF3-U390200010001
1300 2340 LxF3-U390200012001
380-390 700 1260 LxF3-U380200006001
900 1620 LxF3-U380200008001
1050 1890 LxF3-U380200010001

Documentation

Design Resources

  • Mechanical

    Mechanical

    LUXEON UV
    LL ID File Format Title Products Colors/Packages Modified Size (MB)
    DRM2898 STEP LUXEON UV FC1 STEP LxF3-Uxx010000x001 02/21/2017 0.01
  • Optical

    Optical

    LUXEON UV

    In order to properly use the design resource files below, please download the README file for instructions.

    LL ID File Format Title Products Colors/Packages Modified Size (MB)
    DRO2891 ASAP LUXEON UV FC1 ASAP 5M rays LxF3-Uxx010000x001 02/08/2017 133.51
    DRO2890 ProSource rs8 LUXEON UV FC1 in ProSource rs8 format LxF3-Uxx010000x001 02/08/2017 92.68
    DRO2892 LightTools LUXEON UV FC1 LightTools Binary 5M rays LxF3-Uxx010000x001 02/08/2017 133.51
    DRO2893 LucidShape LUXEON UV FC1 Lucidshape 5M rays LxF3-Uxx010000x001 02/08/2017 133.51
    DRO2894 Optis LUXEON UV FC1 OPTIS 5M rays LxF3-Uxx010000x001 02/08/2017 152.59
    DRO2895 Photopia LUXEON UV FC1 Photopia 5M rays LxF3-Uxx010000x001 02/08/2017 133.51
    DRO2896 TracePro LUXEON UV FC1 TracePro Binary 5M rays LxF3-Uxx010000x001 02/08/2017 133.51
    DRO2897 Zemax LUXEON UV FC1 Zemax 5M rays LxF3-Uxx010000x001 02/08/2017 133.51

Features & Benefits

  • Ultraviolet wavelength range of 380nm to 420nm for a range of options
  • Micro sized CSP: 1.0mm2 and 2.0mmpackage for design flexibility and packing density
  • No wire bonds allows for direct attach and reflow
  • 5-sided emitter with batwing radiation pattern
  • Low thermal resistance for leading system level W/$
  • Maximum drive current of 1A/mm2 delivers superior flux for reduced LED count

Applications

  • Specialty Lighting
    • Analytical Instrumentation
    • Curing
    • Medical
    • Security
