LUXEON 3030 HV

High flux, hot-color targeted, 24V and 48V mid power packages

LUXEON 3030 HV

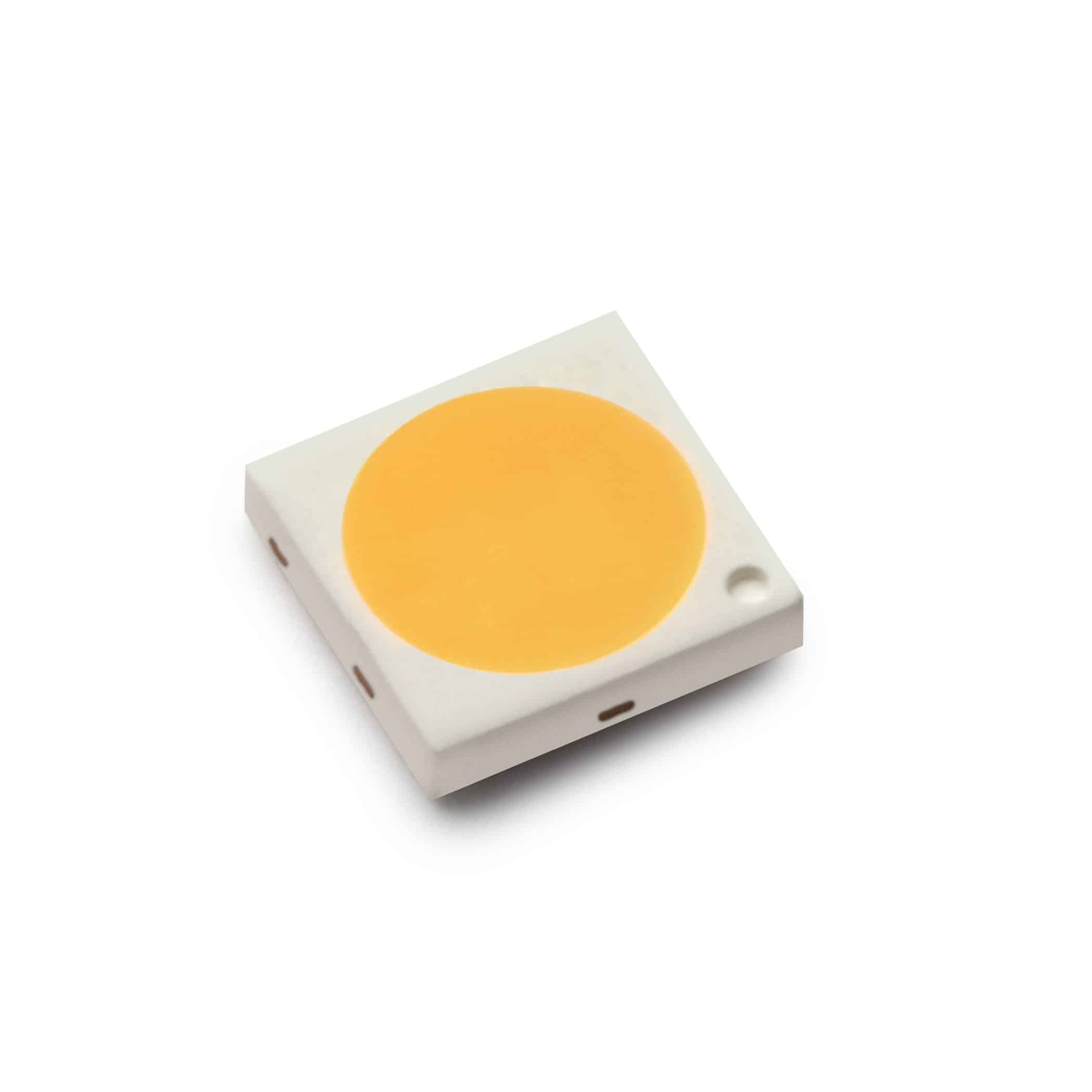

LUXEON 3030 HV is an industry standard package to optimize total voltage output, available in 24V and 48V. This high voltage at low current architecture allows system design freedom and is compatible with more efficient and cost effective drivers. This mid power LED is 1/9th micro-color binned for tight color control and hot-color targeted to ensure that the LEDs are within color target at application conditions—85°C. LUXEON 3030 HV delivers efficacy and reliability for a variety of applications such as downlights, lamps and spotlights.

Product performance at 34mA, 24V.
Nominal
CCT
Minimum
CRI
Luminous Flux (lm)Typical
Luminous
Efficacy
(lm/W)
Test Current (mA)Part Number
MinimumTypical
2700K 80 97 107 132 34 L130-27800BHV00001
3000K 80 99 109 135 34 L130-30800BHV00001
3500K 80 102 112 139 34 L130-35800BHV00001
4000K 80 107 117 145 34 L130-40800BHV00001
5000K 80 107 117 145 34 L130-50800BHV00001
5700K 80 107 117 145 34 L130-57800BHV00001
6500K 80 107 117 145 34 L130-65800BHV00001
2700K 90 87 92 114 34 L130-27900BHV00001
3000K 90 90 95 116 34 L130-30900BHV00001
Product performance at 17mA, 48V.
Nominal
CCT
Minimum
CRI
Luminous Flux (lm)Typical
Luminous
Efficacy
(lm/W)
Test Current (mA)Part Number
MinimumTypical
2700K 80 97 107 132 17 L130-27800CHV00001
3000K 80 99 109 135 17 L130-30800CHV00001
3500K 80 102 112 139 17 L130-35800CHV00001
4000K 80 107 117 145 17 L130-40800CHV00001
5000K 80 107 117 145 17 L130-50800CHV00001
5700K 80 107 117 145 17 L130-57800CHV00001
6500K 80 107 117 145 17 L130-65800CHV00001
2700K 90 87 92 114 17 L130-27900CHV00001

Documentation

Design Resources

Features and Benefits

  • High voltage at low current, compatible with more efficient and cost effective drivers
  • 24V and 48V options available to optimize total voltage output
  • 1/9th micro color binning and 85°C hot-color targeting enables tight color control
  • EMC based package affirms lumen maintenance and long lifetime

Applications
