LUXEON 3014

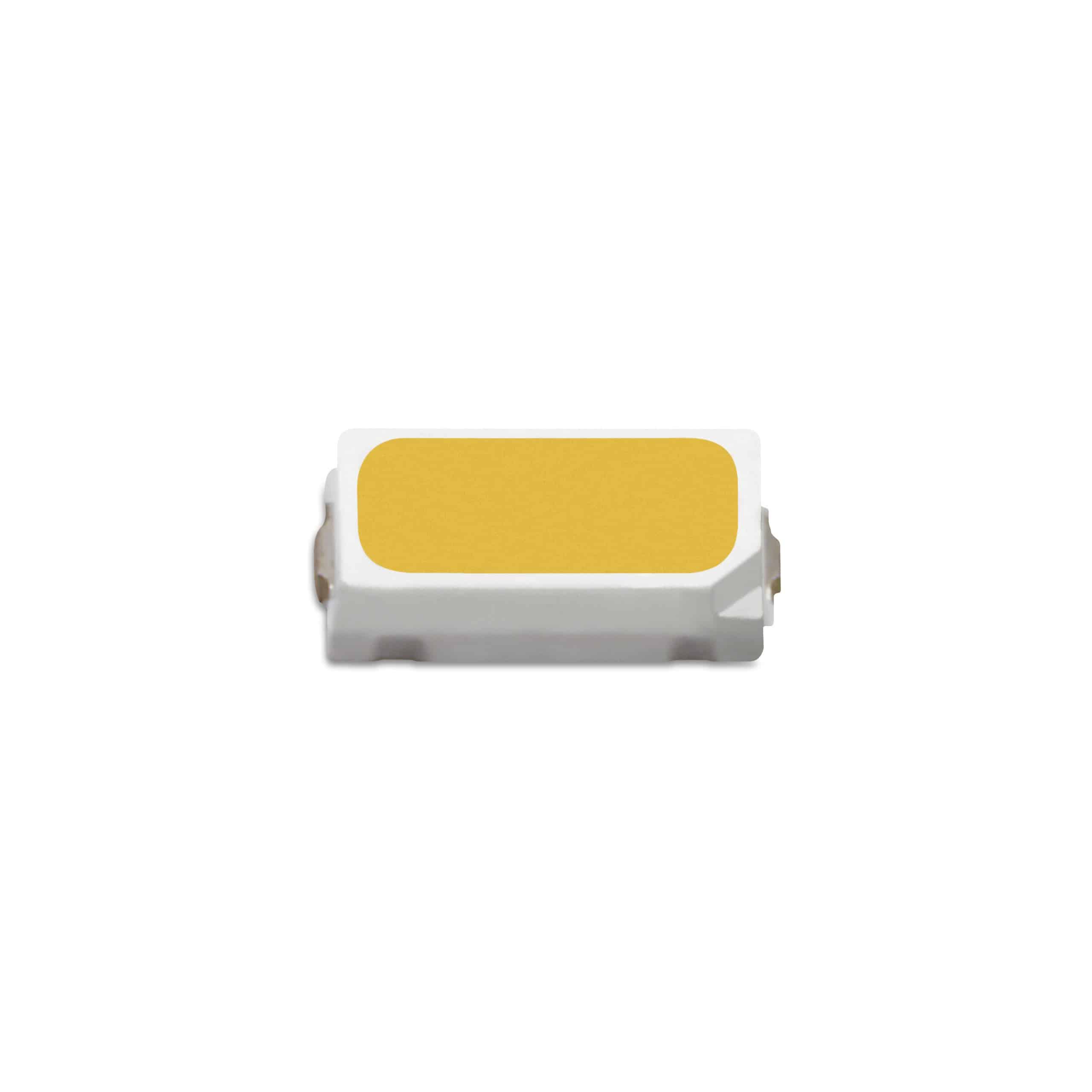

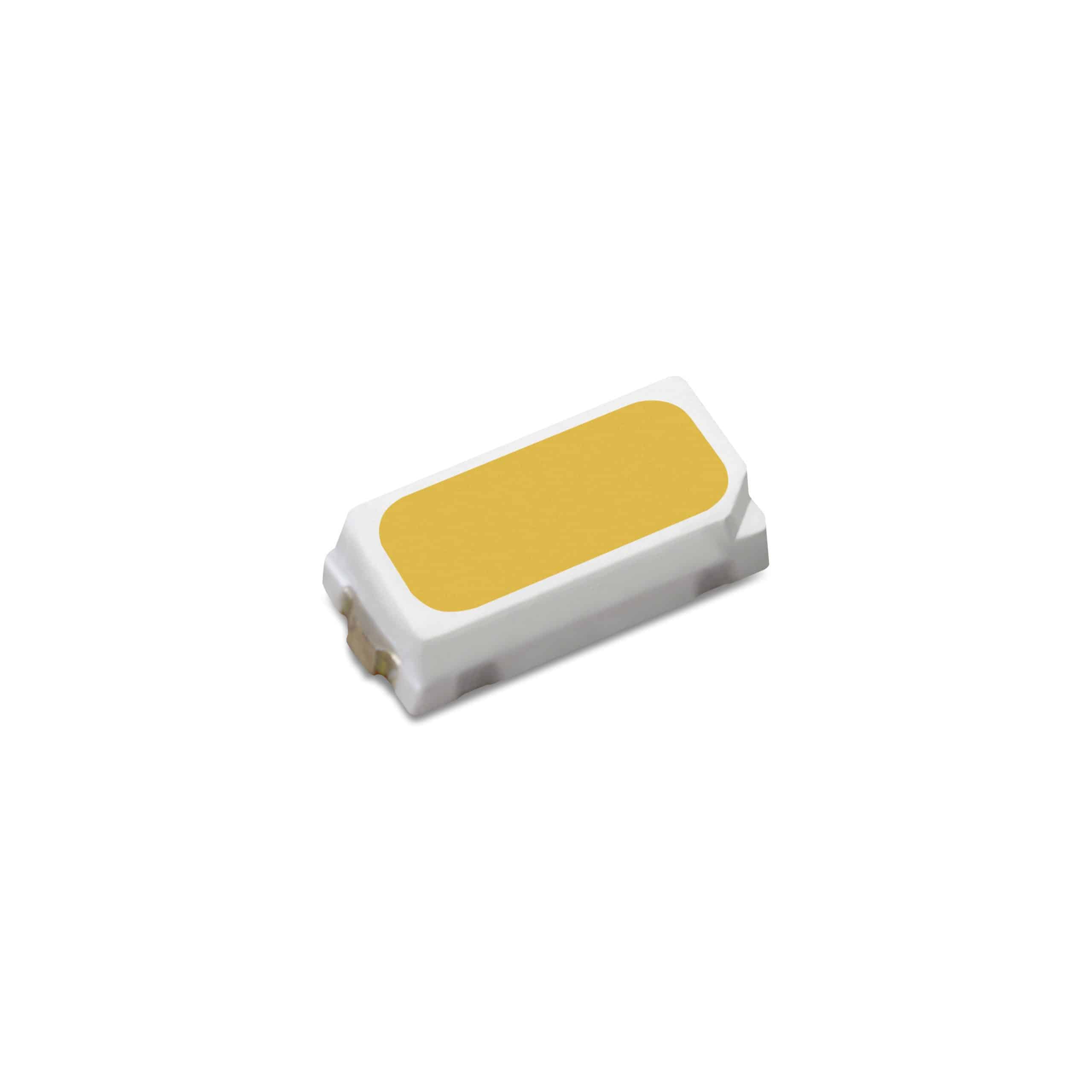

LUXEON 3014 has a compact package size of 3.0mm x 1.4mm x 0.70mm—ideal for achieving uniform light output where space is limited, such as linear applications, tube lighting and signage. LUXEON 3014 is hot-color targeted at a junction temperature of 65°C, ensuring color consistency and meeting ANSI standards at operating conditions.

For more information on LUXEON 3014 legacy product, please refer to the product datasheet.

Features & Benefits

  • Compact package design affirms uniformity and reduction in spottiness
  • Hot-color targeting ensures better color control
  • 1/9th ANSI micro-color binning enables tight color control
  • 120mA maximum driving current allows outstanding brightness
Expand Media

Applications

Expand Applications

Please read these terms and conditions carefully.

LUMILEDS shall not be liable for any kind of loss of data or any other damages, direct, indirect or consequential, resulting from the use of the provided information and data. Although LUMILEDS has attempted to provide the most accurate information and data, the materials and services information and data are provided “as is” and LUMILEDS neither warranties, nor guarantees the contents and correctness of the provided information and data. LUMILEDS reserves the right to make changes without notice. You as user agree to this disclaimer and user agreement with the download or use of the provided materials, information and data.

I agree I do not agree

Product performance of LUXEON 3014 at 60mA and 30mA, at specified test conditions.

Nominal
CCT
Minimum
CRI
Luminous Flux (lm) Typical Luminious
Efficacy (lm/W)
Typical Luminous
Flux (lm)
Typical Luminous
Efficacy (lm/W)
Part Number
Minimum Typical
60mA 30mA
8000K 70 25.0 28.0 150 15.0 172 L130-8070001400001
10000K 70 23.0 27.0 145 14.0 166 L130-1070001400001
2200K 80 19.0 22.5 127 12.1 145 L130-2280HE1400001
2500K 80 21.0 25.0 141 13.5 162 L130-2580HE1400001
2700K 80 23.0 26.5 150 14.3 171 L130-2780HE1400001
3000K 80 23.0 28.0 158 15.1 181 L130-3080HE1400001
3500K 80 23.0 28.0 158 15.1 181 L130-3580HE1400001
4000K 80 25.0 29.0 164 15.6 187 L130-4080HE1400001
5000K 80 25.0 29.0 164 15.6 187 L130-5080HE1400001
5700K 80 25.0 29.0 164 15.6 187 L130-5780HE1400001
6500K 80 25.0 28.5 161 15.3 184 L130-6580HE1400001
2200K 90 16.0 19.0 107 10.2 123 L130-2290001400001
2500K 90 16.0 21.0 119 11.3 136 L130-2590001400001
2700K 90 18.0 22.0 124 11.8 142 L130-2790001400001
3000K 90 19.0 23.0 130 12.4 149 L130-3090001400001
3500K 90 19.0 23.5 133 12.6 152 L130-3590001400001
4000K 90 20.0 24.5 138 13.2 158 L130-4090001400001
5000K 90 20.0 24.5 138 13.2 158 L130-5090001400001
5700K 90 20.0 24.5 138 13.2 158 L130-5790001400001
6500K 90 20.0 24.0 136 12.9 155 L130-6590001400001
2200K 95 15.5 17.2 97 9.3 111 L130-2295001400001
2500K 95 18.0 19.7 111 10.6 127 L130-2595001400001
2700K 95 18.0 20.0 113 10.8 129 L130-2795001400001
3000K 95 20.0 22.0 124 11.8 142 L130-3095001400001
3500K 95 20.0 22.0 124 11.8 142 L130-3595001400001
4000K 95 19.5 21.5 121 11.6 139 L130-4095001400001
5000K 95 19.5 21.5 121 11.6 139 L130-5095001400001
5700K 95 19.5 21.5 121 11.6 139 L130-5795001400001
