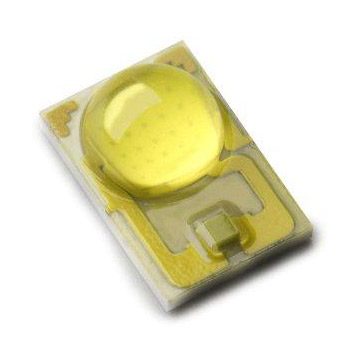

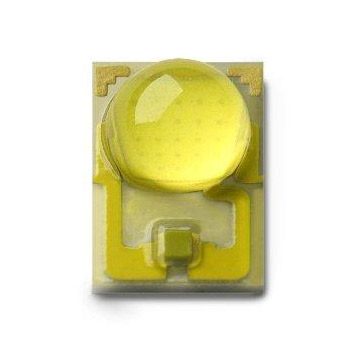

LUXEON Rebel ES

High value and easy design-in

LUXEON Rebel ES

LUXEON Rebel ES is a high flux, high gives you the flexibility you need to design luminaires and lamps for outdoor and industrial lighting applications and bring them to market. Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same emitter. Luminaire manufacturers and designers count on LUXEON Rebel ES for quality, reliability and in-device performance.

Product performance at 700mA, Tj=25°C.
Nominal
CCT
Minimum
CRI
LUMINOUS FLUX (lm)
TYPICAL
LUMINOUS
EFFICACY (lm/W)
Part Number
Minimum
Typical
4100K Neutral White
60
200
230
110
LXML-PWN2
5650K Cool White
60
200
235
112
LXML-PWC2
4000K
70
180
205
98
LXH7-PW40

Documentation

Design Resources

  • Electrical

    Electrical

    LUXEON Rebel ES
    LL ID File Format Title Products Colors/Packages Modified Size (MB)
    DRE925 SPICE LUXEON Rebel, ES, H and 5630 Mid-Power LED Diode Models LXAC-1827
    LXAC-1830
    LXM3-PW51
    LXM3-PW61
    More Products
    Die On Ceramic 02/13/2014 0.00
  • Mechanical

    Mechanical

    LUXEON Rebel ES
    LL ID File Format Title Products Colors/Packages Modified Size (MB)
    DRM761 IGS LUXEON Rebel ES, LUXEON A, LUXEON R 3D-CAD (IGS) LXA7-PW30
    LXA7-PW40
    LXA7-PW50
    LXH7-FW40
    More Products
    Die On Ceramic 02/13/2014 0.28

Features & Benefits

  • High lm/$ for cost competitive applications
  • Broad portfolio of emitters for indoor and outdoor applications
  • CCT and CRI combinations to support a wide range of applications
  • Extensive applications ecosystem for easy design-in and quick ROI
  • LM-80 test report available

Applications
