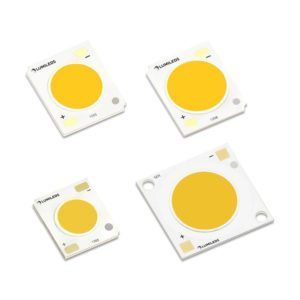

LUXEON CoB with CrispColor Technology

Fashion retail lighting that makes an impact, highlighting rich colors and increasing contrast

LUXEON CoB with CrispColor Technology

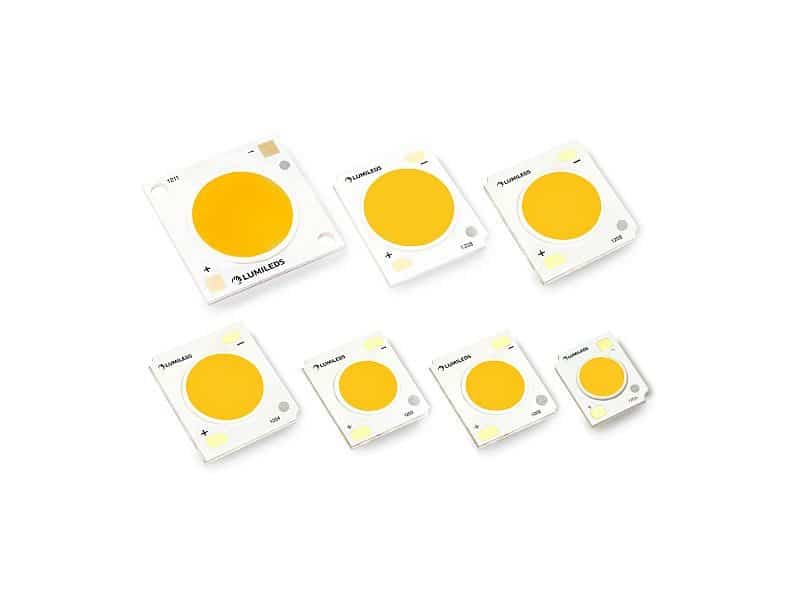

The LUXEON CoB with CrispColor Technology LED is the ultimate solution that makes colors pop and makes fabrics come to life. With efficient solid state lighting technology, the contrast of colors has never been so vivid. Our special phosphor technology has created a higher gamut color rendering than existing solutions with a specific color point be low the Black Body Line to allow for Class A products. Combined with industry leading performance, LUXEON CoB with CrispColor Technology creates a highly impactful retail experience with all of the advantages of our LUXEON CoB range, including lowest Rth, small Light Emitting Surface (LES) and 3-step MacAdam ellipse color definition, which is tested at 85°C.

Product performance at test current, Tj=85°C.
ProductNominal CCTMinimum CRILuminous
Flux (lm)
Typical Luminous Efficacy (lm/W)Test
Current
(mA)
LES (mm)Part Number
MinimumTypical
LUXEON CoB 1202s 2700K 90 588 653 95 200 6 L2C5-27HG1202E0600
3000K 90 648 700 101 200 6 L2C5-30HG1202E0600
3250K 90 675 720 104 200 6 L2C5-33HG1202E0600
3500K 90 656 729 106 200 6 L2C5-35HG1202E0600
4000K 90 690 767 111 200 6 L2C5-40HG1202E0600
5000K 90 716 796 115 200 6 L2C5-50HG1202E0600
LUXEON CoB 1202 2700K 90 613 681 99 200 9 L2C5-27HG1202E0900
3000K 90 648 720 104 200 9 L2C5-30HG1202E0900
3250K 90 675 750 109 200 9 L2C5-33HG1202E0900
3500K 90 683 759 110 200 9 L2C5-35HG1202E0900
4000K 90 720 800 116 200 9 L2C5-40HG1202E0900
5000K 90 748 831 120 200 9 L2C5-50HG1202E0900
LUXEON CoB 1203 2700K 90 907 1008 97 300 9 L2C5-27HG1203E0900
3000K 90 972 1080 104 300 9 L2C5-30HG1203E0900
3250K 90 1017 1130 109 300 9 L2C5-33HG1203E0900
3500K 90 1035 1150 111 300 9 L2C5-35HG1203E0900
4000K 90 1066 1184 114 300 9 L2C5-40HG1203E0900
5000K 90 1106 1229 119 300 9 L2C5-50HG1203E0900
LUXEON CoB 1204 2700K 90 1424 1582 101 450 13 L2C5-27HG1204E1300
3000K 90 1494 1660 106 450 13 L2C5-30HG1204E1300
3250K 90 1575 1750 112 450 13 L2C5-33HG1204E1300
3500K 90 1594 1771 113 450 13 L2C5-35HG1204E1300
4000K 90 1656 1840 117 450 13 L2C5-40HG1204E1300
5000K 90 1737 1930 123 450 13 L2C5-50HG1204E1300
LUXEON CoB 1205 2700K 90 1850 2055 98 600 13 L2C5-27HG1205E1300
3000K 90 1953 2170 103 600 13 L2C5-30HG1205E1300
3250K 90 2034 2260 108 600 13 L2C5-33HG1205E1300
3500K 90 2070 2300 110 600 13 L2C5-35HG1205E1300
4000K 90 2172 2413 115 600 13 L2C5-40HG1205E1300
5000K 90 2255 2506 119 600 13 L2C5-50HG1205E1300
LUXEON CoB 1208 2700K 90 2775 3083 98 900 15 L2C5-27HG1208E1500
3000K 90 2970 3300 105 900 15 L2C5-30HG1208E1500
3250K 90 3105 3450 110 900 15 L2C5-33HG1208E1500
3500K 90 3105 3450 110 900 15 L2C5-35HG1208E1500
4000K 90 3263 3626 116 900 15 L2C5-40HG1208E1500
5000K 90 3389 3766 120 900 15 L2C5-50HG1208E1500
LUXEON CoB 1211 2700K 90 3803 4226 101 1200 19 L2C5-27HG1211E1900
3000K 90 4023 4470 107 1200 19 L2C5-30HG1211E1900
3250K 90 4190 4656 111 1200 19 L2C5-33HG1211E1900
3500K 90 4264 4738 113 1200 19 L2C5-35HG1211E1900
4000K 90 4466 4962 119 1200 19 L2C5-40HG1211E1900
5000K 90 4638 5153 123 1200 19 L2C5-50HG1211E1900
LUXEON CoB 1216 2700K 90 4994 5549 101 1600 23 L2C5-27HG1216E2300
3000K 90 5273 5859 106 1600 23 L2C5-30HG1216E2300
3250K 90 5492 6102 111 1600 23 L2C5-33HG1216E2300
3500K 90 5589 6210 113 1600 23 L2C5-35HG1216E2300
4000K 90 5864 6515 118 1600 23 L2C5-40HG1216E2300
5000K 90 6089 6766 123 1600 23 L2C5-50HG1216E2300

Documentation

Features and Benefits

  • Highest flux densities with industry’s smallest Light Emitting Surface (LES)
  • 3-step MacAdam ellipse color definition: Freedom from Binning for color consistency from luminaire to luminaire
  • Up to 4x lower thermal resistance than competition, enabling smaller heatsinks and higher lumens
  • Supported by a comprehensive optical, mechanical and electrical ecosystem
